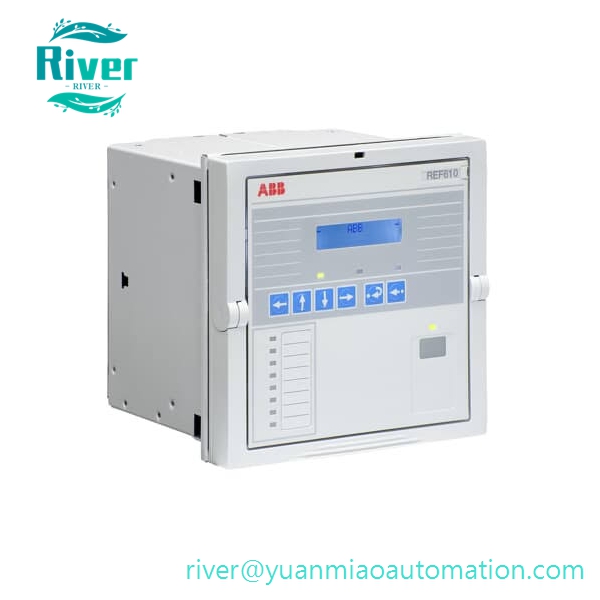

REF610 ABB Relion Feeder Protection IED Relay Power Substation Protection Spare Part In Stock

ABB REF610 retired feeder protection IED provides full feeder fault protection,

Send email to us

Product Detail

ABB REF610 retired feeder protection IED provides full feeder fault protection, measurement and communication for medium voltage power distribution.

Part No: REF610
Brand: ABB Relion 610 series
Status: Officially discontinued since 2017, only aftermarket spare availableABB Group
Type: Numerical feeder protection relay / distribution IED
FunctionSafeguard incoming and outgoing feeders in industrial and utility substations. It monitors line current, voltage and operation status, triggers circuit breaker tripping against short circuit, overload, earth fault and phase loss faults. It records fault events, supports remote communication with DCS/SCADA, and realizes remote signaling, fault locating and power system automation. Optional arc flash protection protects switchgear busbars from arc explosion damage.

Comprehensive multi-stage protectionThree-stage three-phase overcurrent protection (low-set, high-set, instantaneous), two-stage non-directional earth fault protection, cable thermal overload protection, phase break protection, optional arc protection, breaker failure protection and trip circuit monitoringeero. Supports definite time and IDMT inverse-time curves compliant with IEC & IEEE standards.
Rich communication compatibilitySupports IEC 61850, IEC 60870-5-103, Modbus, DNP3, SPA bus, with RS485 and fiber communication options for docking with power automation systems.
Hardware advantagesPluggable modular design for quick replacement and easy cabinet retrofitting; front IP54 dust/water resistance, rear IP20; built-in LCD local display, multi-language menu and fault code prompts; complete self-check function for hardware faultsABB Group.
Industrial certificationPassed KEMA type test, DNV marine/offshore certification, CE and UL approval, adaptable to onshore factory, marine and offshore power environmentsABB Group.
Data storageStores up to 32 event logs and 8 groups of fault oscillography for post-fault analysis.

Rated current: 1A / 5A optional
Auxiliary power: AC 100~240V / DC 24~250V universal
Working temperature: -10℃ ~ +55℃ continuous operation
I/O allocation: 4 current inputs, 2~5 digital inputs, relay trip outputs and signal contacts
HS Code: 85389091
Supply: New old stock and fully tested refurbished units in stock

Applicable equipment: 10kV/35kV medium voltage switchgear, ring main units, industrial power distribution cabinets
System matching: Power grid substation SCADA, factory DCS, marine power management system
Replacement: Direct swap for all REF610 different suffix models; commonly replaced by REF615 for new projects

Power grid urban distribution substations, industrial plant medium voltage feeder protection
Marine vessels, offshore platform power loop protection
Backup protection for factory transformers, motors and generators
Retrofitting maintenance of old power cabinets with discontinued REF610 devices
