Product Overview

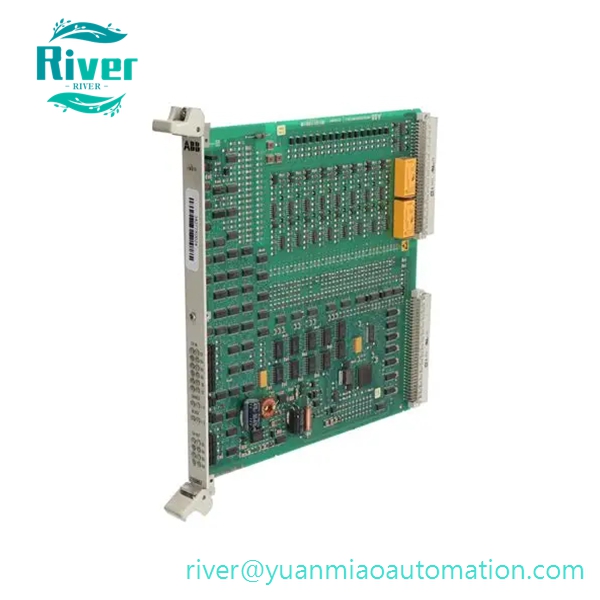

• Part No: 216DB61, full part code HESG324063R100/J / HESG216882/A
• Brand: ABB
• Origin: Switzerland
• Supporting System: REG216 generator comprehensive protection system, matched with 216AB61 output board to form complete signal loop
• Type: Binary digital input acquisition module

• FunctionCollect all field switch state signals for generator, transformer and high-voltage switchgear. Receive contact feedback signals including circuit breaker closing/tripping position, protection auxiliary contacts, grounding fault signal, door interlock and local/remote mode signals. Convert field dry contact/DC24V switching signals into bus digital signals and upload to REG216 main control unit for protection logic judgment, fault recording and remote SCADA uploading. Cooperates with 216AB61 output board to realize full closed-loop protection signal input and output.

•


Core Features

• Total 16 digital input channels, DC24V standard power signal input
• Each channel equipped with independent signal filtering circuit, anti-high frequency interference of high voltage switch room
• PCB with conformal coating, dustproof, moisture-proof, anti-corrosion, adapt to power plant harsh electromagnetic environment
• Independent yellow LED status indicator for each channel; red ALARM fault light for module hardware failure diagnosis
• Standard rack plug-in card design, backplane bus communication, convenient hot swap and cabinet maintenance
• Built-in channel circuit self-inspection, automatically report open-circuit abnormal input to host

• Strictly comply with power industry EMC anti-interference standards, stable operation under strong electromagnetic radiation

•


Technical Specifications

• Rated Input Voltage: DC24V
• Single-channel input current: Approx 1mA
• Operating Temperature: -25℃ ~ +55℃
• Storage Temperature: -40℃ ~ +85℃
• Protection Grade: IP20 (cabinet internal installation only)
• Net Weight: Around 0.35kg
• HS Code: 85389091

• Supply: Brand new old stock and fully tested refurbished modules available

•


Compatibility

• Perfectly matched with REG216 series generator protection rack
• Matched supporting board: 216AB61 binary output module
• Applicable equipment: Thermal power, hydropower, chemical self-owned power plant generator protection cabinet, high voltage distribution panel

• Direct interchangeable replacement for all versions of 216DB61 with same part number

•


Application

• Generator protection cabinet status signal acquisition maintenance replacement
• Breaker position feedback, protection action feedback circuit overhaul
• REG216 old protection system aging signal board upgrade
• Power plant, metallurgy, petrochemical high-voltage protection cabinet spare parts backup
