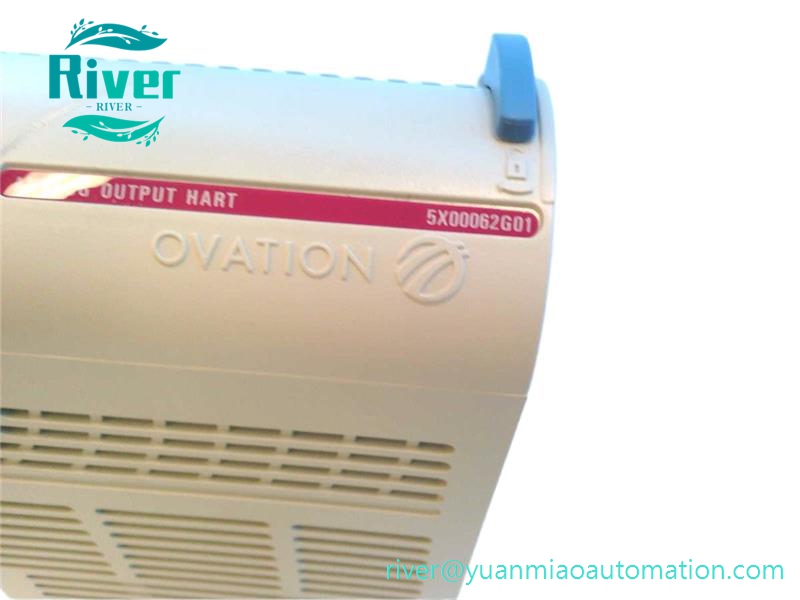

Emerson 5X00062G01 Ovation DCS 8-channel HART analog output module, outputs 4-20mA signals to drive valve positioners and field smart instruments, widely used spare part for power plant DCS systems.

Product Overview

• Part No: 5X00062G01
• Brand: EMERSON / Westinghouse Ovation

• Category: 8-Channel HART Analog Output Module 5X00062G01 is an 8-channel analog output module designed for Emerson Ovation distributed control system with native HART protocol support. The module receives digital commands from controllers and converts data into standard 4–20mA analog current signals for field actuators such as pneumatic valve positioners and variable frequency drives. HART communication enables bidirectional digital interaction with smart field instruments, supporting remote parameter reading, equipment diagnosis and configuration. Each channel is equipped with independent signal isolation to eliminate electromagnetic interference. Hot-swap function allows online replacement without system shutdown. Front panel LED indicators clearly display module operation, communication status and channel faults. It serves as essential maintenance spare for closed-loop regulation circuits of boilers and turbines in thermal power plants.

•


Core Features

• 8 independent analog output channels with 4–20mA DC signal output
• Built-in HART communication, compatible with various HART smart actuators
• Electrical isolation for each channel to prevent ground loop interference
• Hot swap supported for online maintenance without system interruption
• Integrated channel fault detection and open-circuit diagnosis

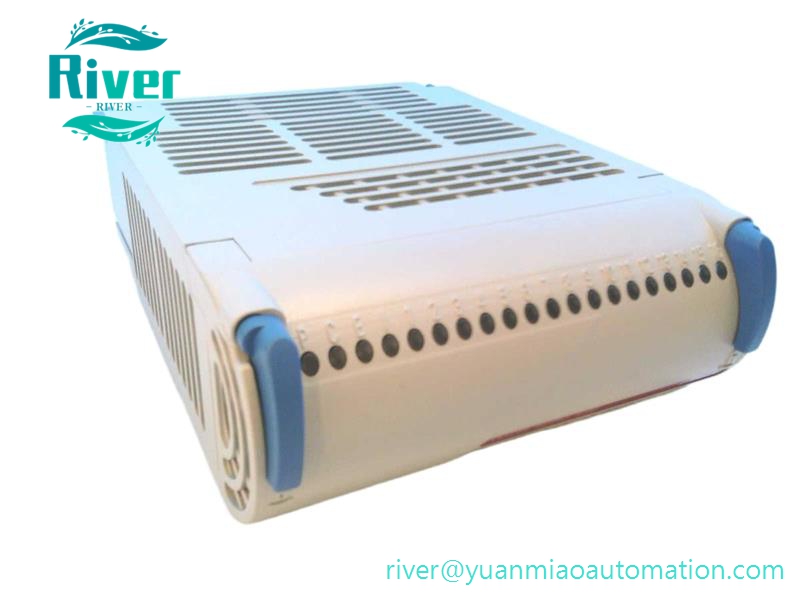

• Front panel LED indicators for fast fault location
• Standard plug-in design for Ovation rack, convenient installation and replacement

• Industrial-grade hardware satisfying strict EMC and temperature requirements for power station environments

•


Technical Specifications

• Output Channels: 8 channels
• Output Signal: 4–20mA DC, HART protocol compatible
• Power Supply: Powered via Ovation rack backplane
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Mounting: Ovation standard rack slot installation

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Fully compatible with Emerson Ovation DCS racks and matching controller hardware
• Widely deployed in thermal power plants, combined-cycle power stations, water treatment and petrochemical industries
• Applied for modulating control of valves and actuators in boiler, turbine and auxiliary process systems
