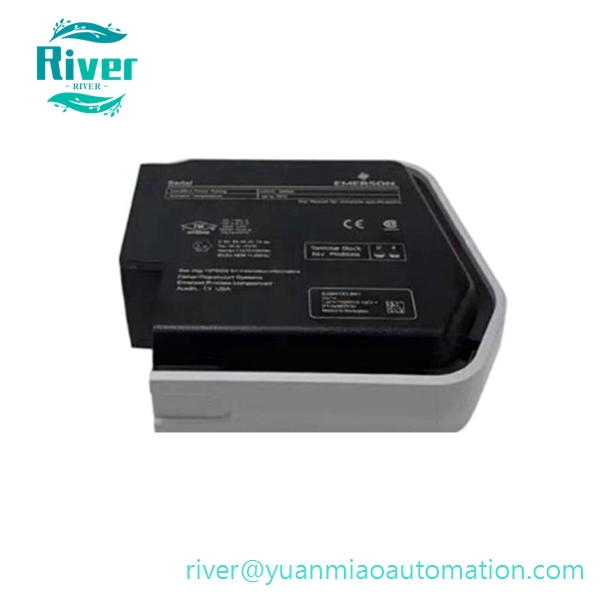

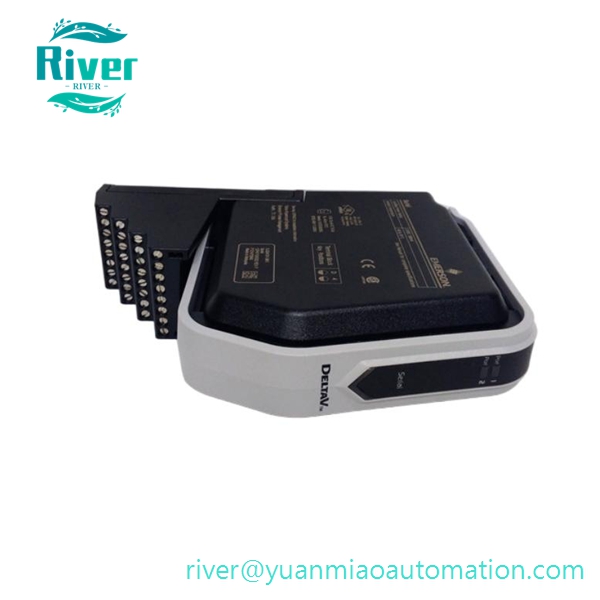

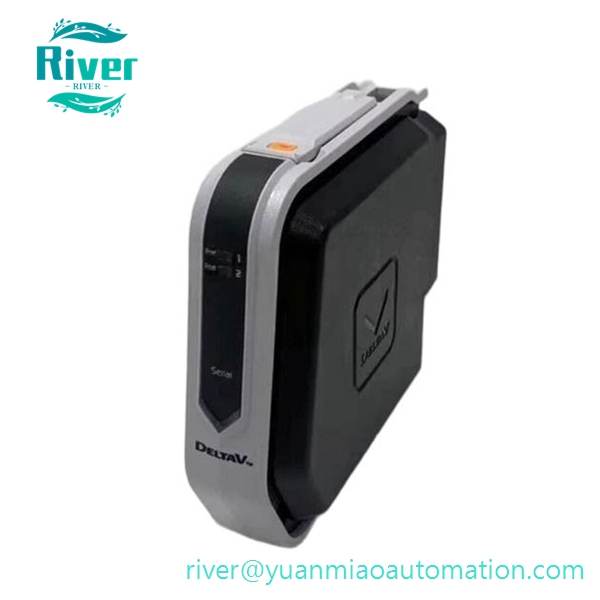

Emerson SE4006P2 (KJ3241X1-BK1) DeltaV S-Series serial communication interface module, supports RS232/RS422/485 and Modbus protocol, gateway spare for connecting third-party PLCs and analyzers to DeltaV DCS.

Product Overview

• Part No: SE4006P2, KJ3241X1-BK1
• Brand: EMERSON

• Category: S-Series Serial Interface Communication Module SE4006P2 (KJ3241X1-BK1) is a serial interface communication module belonging to Emerson DeltaV S‑Series distributed control system. It acts as a protocol gateway to realize data exchange between DeltaV controllers and external serial devices including third-party PLCs, online analyzers, variable frequency drives and legacy equipment. The module is preloaded with Modbus communication driver, and supports additional industrial serial drivers for diversified device access. It is equipped with two independent electrically isolated serial ports configurable for RS232, RS422 full-duplex or RS485 half-duplex modes. The module supports hot‑swap online replacement and can be deployed in redundant pair configuration to improve system availability for critical control loops. Front panel LED indicators display module running status, port communication activity and fault alarms for convenient field troubleshooting. It serves as essential maintenance spare for renovation and expansion of petrochemical, power and water treatment automation systems.

•


Core Features

• Dual independent isolated serial communication ports
• Supports RS232, RS422 full-duplex, RS485 half-duplex signal modes
• Pre-installed Modbus driver, compatible with various serial field equipment
• Each port supports up to 16 data sets, maximum 32 datasets per module
• Baud rate adjustable from 300 bps to 115.2 kbps
• Supports 1:1 redundant deployment for high availability applications
• Hot-swap capable for online maintenance without system shutdown
• Built-in comprehensive self-diagnosis and communication fault detection
• Front panel LED indicators for power status, port activity and error alarms
• Snap-in pluggable design matching DeltaV S‑Series I/O carrier

• Industrial hardware suitable for continuous 24/7 operation under strict EMC environments

•


Technical Specifications

• Serial Ports: 2 isolated channels
• Interface Standards: RS232, RS422, RS485
• Supported Protocols: Modbus RTU / ASCII and optional serial drivers
• Maximum Datasets: 32 (16 datasets per port)
• Power Supply: Powered via DeltaV I/O carrier backplane
• Operating Temperature: -40°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C
• Mounting: DeltaV S‑Series standard I/O carrier installation

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Fully compatible with Emerson DeltaV S‑Series I/O carriers and S‑Series controllers
• Widely used in oil & gas, petrochemical, thermal power plants, pharmaceutical and water treatment industries
• Applied for data interconnection between DeltaV DCS and third-party PLCs, gas analyzers, drives and legacy serial instruments
