Motorola MVME6100 high-performance PowerPC VME single board computer with MPC7457 processor, supports 2eSST VMEbus, widely used for industrial control, aerospace and legacy automation system upgrade spare part.

Product Overview

• Part No: MVME6100
• Brand: MOTOROLA (Motorola Computer Group, later Emerson)

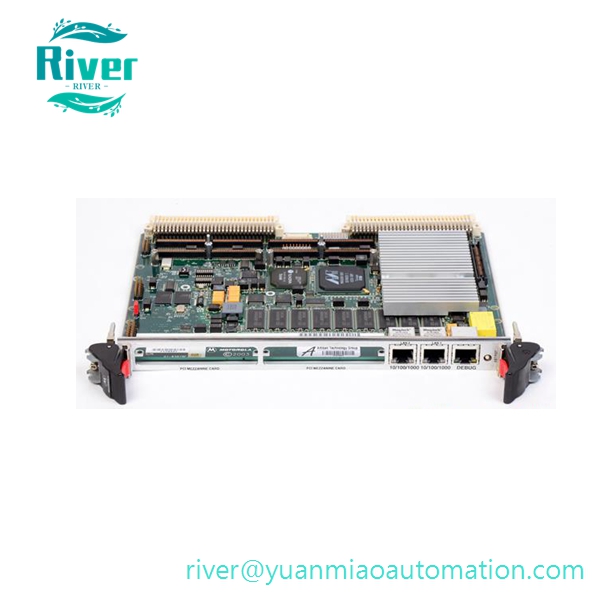

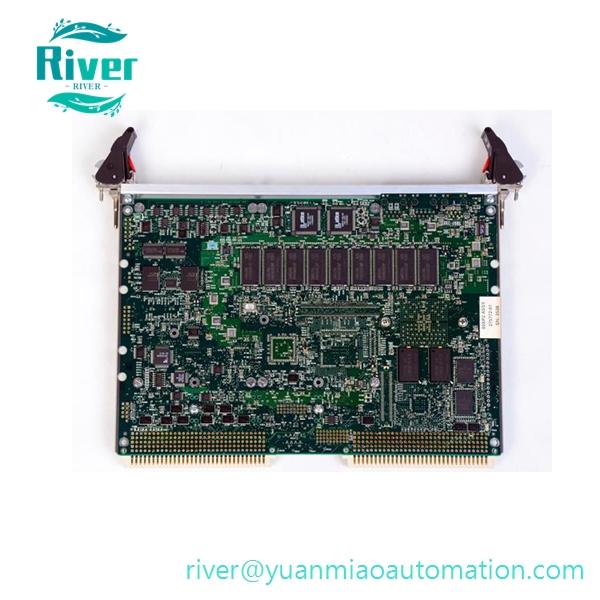

• Category: 6U VMEbus Single Board Computer (SBC) MVME6100 is a single-slot 6U VME single-board computer built around MPC7457 PowerPC processor and Marvell MV64360 system controller, equipped with Tundra Tsi148 VME bridge chip. It is the first generation VME SBC supporting 2eSST high-speed VME transmission, delivering significantly improved VMEbus throughput compared with traditional VME boards. The platform provides abundant onboard interfaces and dual PMC expansion slots, supporting VxWorks, Linux and other real-time operating systems. Widely deployed in industrial automation, power control, aerospace, particle accelerator control and legacy VME system renovation projects, and serves as critical maintenance spare for existing VME rack control systems.

•


Core Features

• MPC7457 PowerPC processor, 1.267GHz clock speed, integrated 128-bit AltiVec coprocessor
• Onboard DDR ECC SDRAM, configurable up to 2GB; up to 128MB flash memory split into two banks
• 32KB battery-backed NVRAM with real-time clock for non-volatile parameter storage
• Tsi148 VME bridge supporting 2eSST protocol, sustained transfer speed up to 320MB/s; compatible with VME64/VME64x
• Dual front-panel Gigabit Ethernet RJ45 ports
• One front-panel RS232 serial port, second serial port routed to onboard header
• Two IEEE P1386.1 PMC/PCI-X mezzanine expansion slots, supporting front and rear I/O routing
• Onboard reset and abort switches, front panel status LED indicators
• Standard single-slot 6U VME form factor, hot-swappable in compatible VME chassis
• Comprehensive onboard self-test and diagnostic firmware (MOTLoad bootloader)

• Robust hardware suitable for continuous long-term operation in industrial environments

•


Technical Specifications

• Processor: MPC7457 PowerPC @1.267GHz
• Memory: Max 2GB DDR ECC SDRAM; Max 128MB Flash; 32KB battery-backed NVRAM
• VME Interface: Tsi148 bridge, support 2eSST, VME64, VME64x
• Communication: Dual 10/100/1000Mbps Ethernet, 2 x asynchronous serial ports
• Expansion: 2 x 64-bit PMC/PCI-X slots
• Form Factor: 6U VME (233.4 mm × 160 mm), single slot
• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Supported OS: VxWorks, Linux, other PowerPC real-time operating systems

• Protection Class: IP20 when installed inside chassis

•


Compatibility & Application

• Compatible with standard 6U VME64/VME64x backplanes and VME I/O modules
• Widely applied in power plant control systems, industrial real-time control, aerospace test equipment, scientific accelerator control
• Used as main controller for legacy VME automation platform upgrade and equipment maintenance replacement
