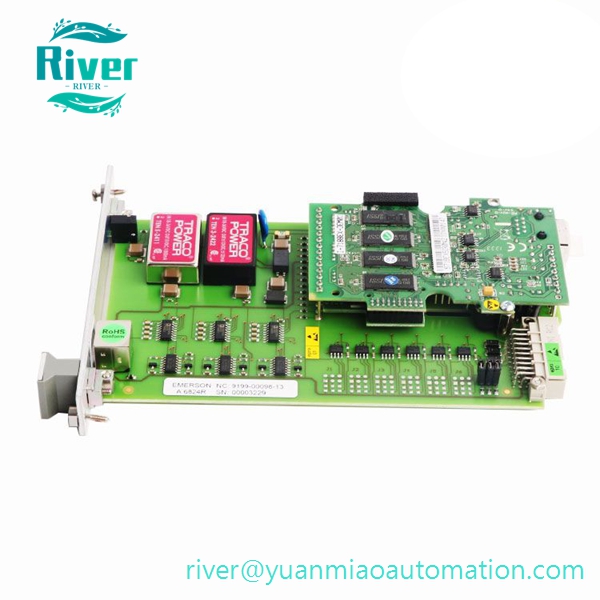

Emerson EPRO A6824R (9199-00098-13) rack communication interface module for AMS6500 Machinery Health Monitor, supports Modbus TCP/IP and Modbus RTU, collects vibration, displacement, speed and alarm data of all monitor cards, realizes interconnection with DCS/SCADA, API670 compliant turbomachinery monitoring spare part.

Product Overview

• Part No: A6824R, 9199-00098-13
• Brand: EMERSON / EPRO

• Category: Modbus & Rack Interface Communication Module A6824R (9199-00098-13) is a 3U plug-in communication gateway module belonging to Emerson AMS6500 Classic machinery protection monitoring system, fully compliant with API 670 standard. As the core communication hub of the monitoring rack, it collects all measurement data, status information and alarm signals from vibration, thrust, expansion, overspeed and other monitor modules inside the rack. It converts internal rack bus data into standard Modbus TCP/IP Ethernet and Modbus RTU RS485 signals, realizing seamless data exchange with DeltaV, Ovation and other DCS, SCADA systems and upper monitoring platforms. The R version supports redundant deployment, improves system communication reliability, and adopts compact 4TE width design to save rack slot resources. It supports password-protected parameter configuration, front panel LED indicators display network link and module running status. Hot-swap design allows online replacement without interrupting the protection function of the whole rack. Widely used as maintenance spare part for turbomachinery protection systems in power, petrochemical and oil & gas industries.

•


Core Features

• Centralized data collection for all monitor modules inside AMS6500 rack
• Dual communication interfaces: Modbus TCP/IP (RJ45 Ethernet) + Modbus RTU (RS485 serial)
• A6824R supports redundant configuration to enhance communication reliability
• Transmits vibration value, axial displacement, rotational speed, sensor status and alarm information
• Supports PC local parameter configuration via front panel interface
• Built-in comprehensive self-diagnosis for bus communication failure and module hardware fault
• Front panel LED indicators for power, network link and fault alarm status
• Hot-swap capable for online maintenance
• Compact 4TE narrow 3U Eurocard form factor, saving rack installation space

• Rugged industrial hardware, meets strict EMC standards for 24/7 continuous operation

•


Technical Specifications

• Model Code: A6824R, order number 9199-00098-13
• Form Factor: 3U height, 4TE width single slot for AMS6500 rack
• Communication Protocol: Modbus TCP/IP 10Base-T; Modbus RTU (default 19200,8,E,1)
• Default IP Address: 192.168.255.1
• Power Consumption: Max 5 W
• Operating Temperature: 0°C ~ +65°C
• Storage Temperature: -30°C ~ +85°C
• Humidity: 5%–95% non-condensing

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible System: Emerson AMS6500 Classic Machinery Health Monitor rack
• Matching monitor modules: A6110, A6140, A6210, A6220, A6410, A6370D and other series monitor cards
• Upper system docking: DeltaV, Ovation, third-party DCS and SCADA systems
• Widely deployed in thermal power plants, combined-cycle stations, oil & gas and petrochemical industries
• Applied for data transmission of steam turbines, gas turbines, centrifugal compressors and generator sets protection monitoring racks
