Original Triconex 3000470‑510 9760‑210 field termination panel for Tricon safety instrumented system, signal conditioning terminal unit for petrochemical ESD safety spare parts.

Product Overview

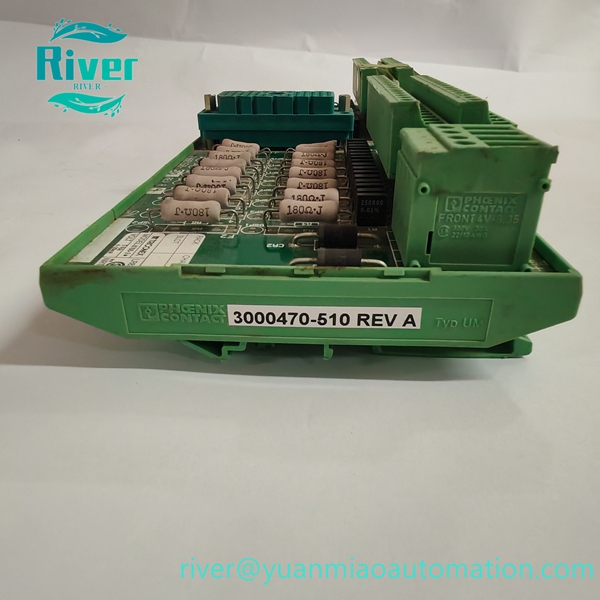

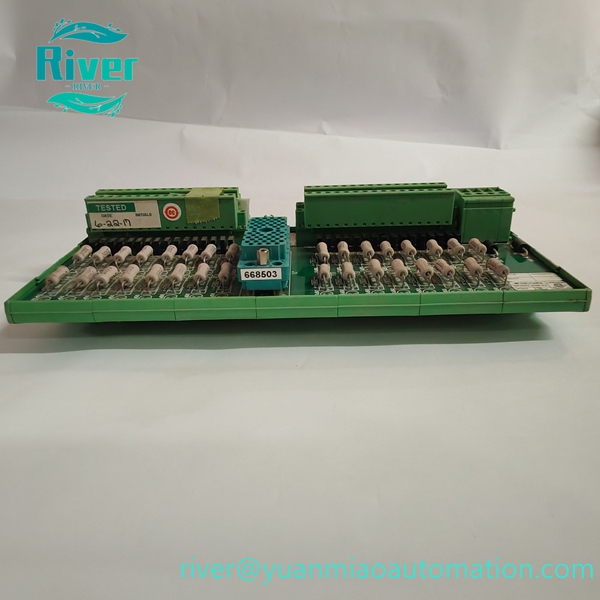

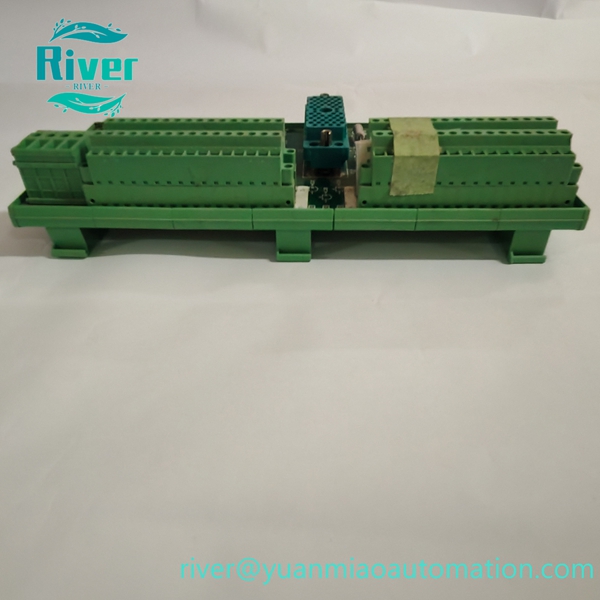

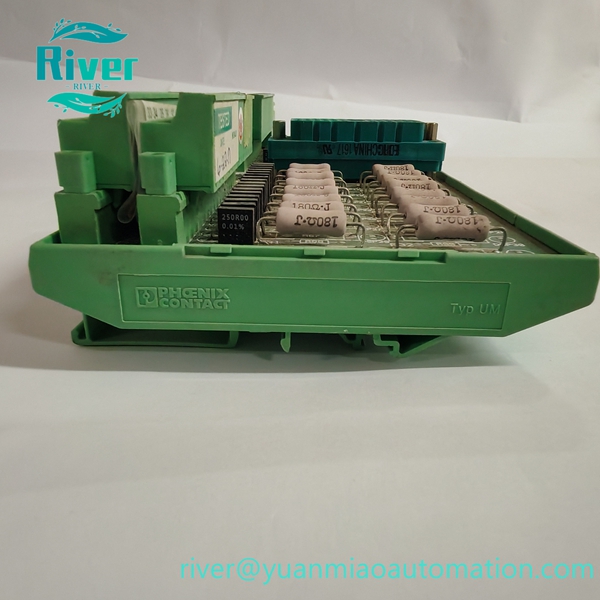

3000470‑510 paired with 9760‑210 is Triconex field termination panel assembly, USA origin. It serves as signal conditioning and wiring interface between field analog sensors and Tricon SIS I/O modules, adapts 0‑5V / 0‑10V analog signals, widely used as maintenance spare part for legacy Tricon V9/V10 safety systems in oil‑gas and power plant sites.

Key Features

• Signal conditioning and filtering for analog field signals
• Matches Tricon SIS I/O modules for field wiring conversion
• Supports TMR triple‑modular‑redundant safety architecture
• Built‑in protective circuit for over‑voltage suppression
• DIN‑rail rack‑mount installation, convenient field wiring

• Industrial rugged hardware for long‑term continuous operation

•


Technical Specifications

• Brand: Triconex (Schneider Electric)
• Model: 3000470‑510, 9760‑210
• Series: Tricon SIS
• Country of Origin: USA
• Signal Range: 0‑5VDC, 0‑10VDC analog
• Operating Temp: ‑20℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Protection: IP20 (cabinet installation)

•


Compatibility

Compatible with Triconex Tricon V9 / V10 safety instrumented system. Matches corresponding I/O modules, wiring verification is required after replacement.
