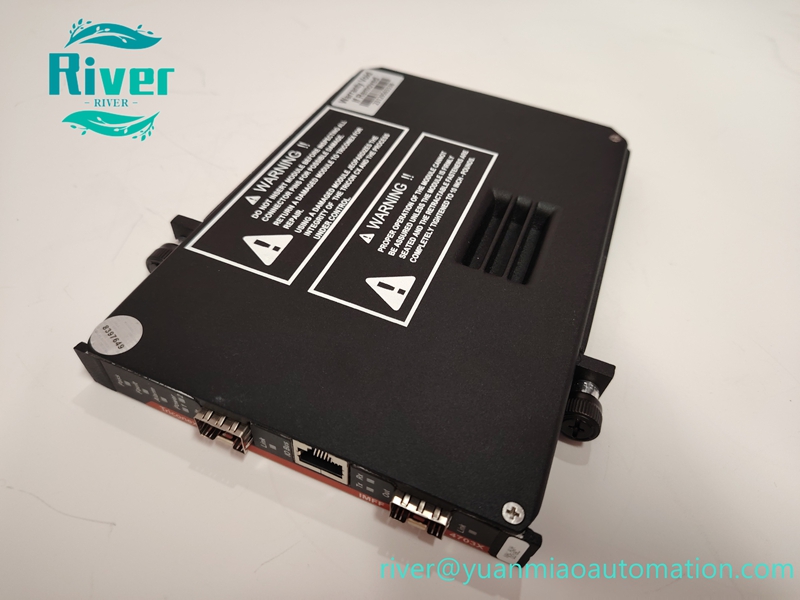

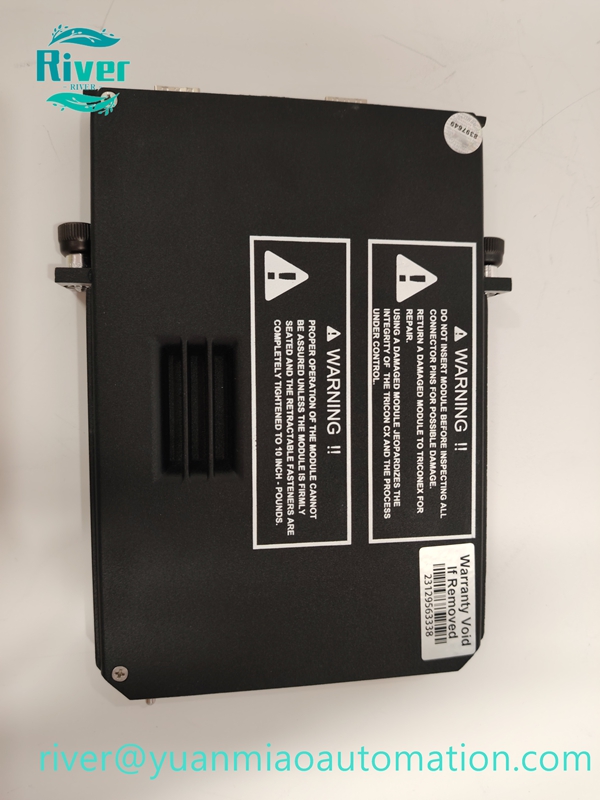

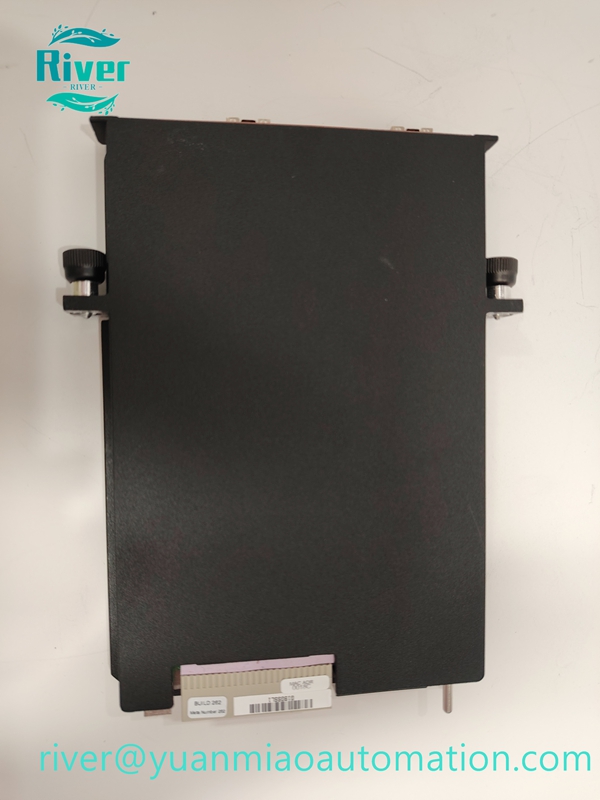

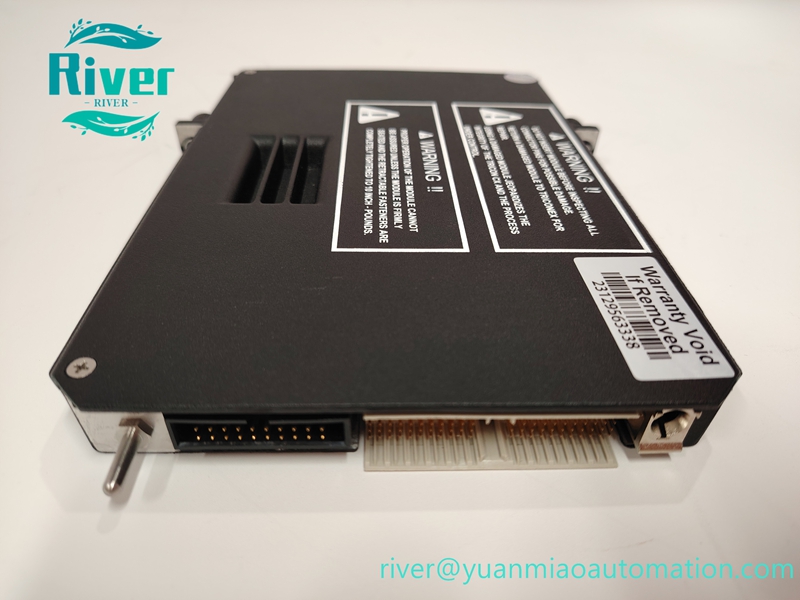

Triconex IMFF4703x is a fiber I/O bus interface module for Tricon CX safety system, supporting TMR triple modular redundancy, long-distance remote I/O rack extension, SIL3 certified, widely used in ESD and FGS safety control systems.

Product Overview:

Triconex IMFF4703x is a dedicated fiber-to-fiber I/O bus interface module designed for Schneider Tricon CX safety instrumented system. It realizes high-speed optical communication between the main processor rack and 8131X remote expansion rack, solving the problems of limited copper cable transmission distance and electromagnetic interference. This module supports hot swapping, redundant fiber links and TMR voting mechanism, provides stable isolated signal transmission for safety interlock loops, and is a key spare part for distributed SIS architecture.

Key Features:

• Fiber I/O bus interface for Tricon CX safety platform
• TMR triple modular redundancy design, no single point of failure
• Hot-swappable, replace module without system shutdown
• Fiber electrical isolation, strong anti-interference ability
• Support redundant optical links for remote I/O expansion
• SIL3 safety certification conforming to IEC 61508
• Front panel LED indicators for link, running and fault status

• Deterministic real-time communication for safety interlock

•


Technical Specifications:

• Brand: Triconex (Schneider Electric)
• Model: IMFF4703x
• Module Type: Fiber I/O Bus Interface Module
• Compatible Chassis: 8131X expansion rack
• Safety Level: SIL3 (IEC 61508)
• Power Supply: 24VDC
• Communication Medium: Multi-mode / Single-mode fiber
• Installation: Rack mount
• Cooling: Fanless

• Architecture: Triple Modular Redundancy (TMR)

•


Compatibility & Application:

It is suitable for oil & gas, petrochemical, power generation, chemical industry ESD emergency shutdown, FGS fire and gas detection systems, compatible with Tricon CX series safety control system.
