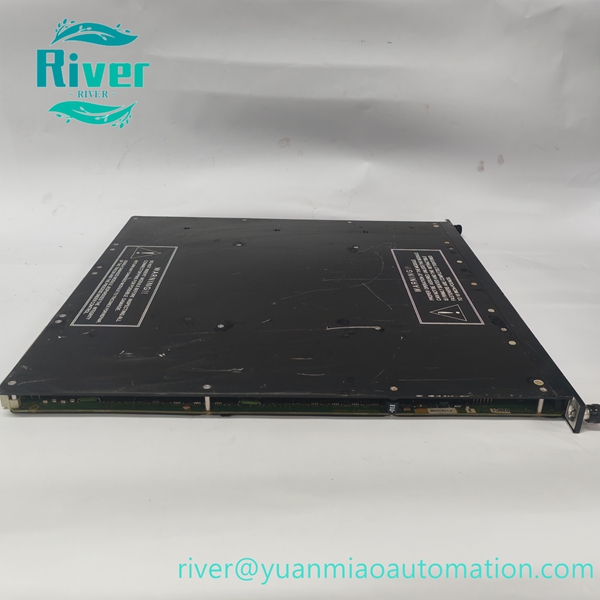

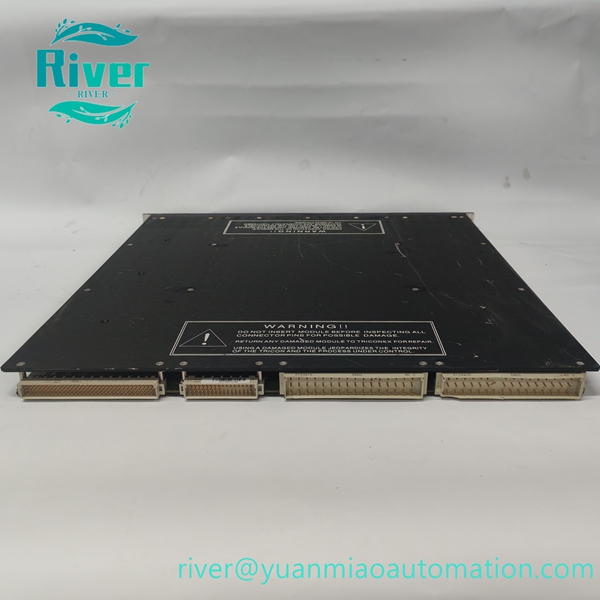

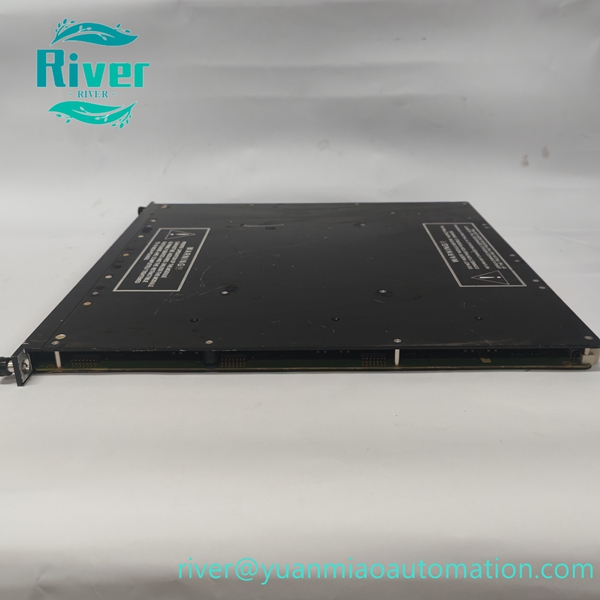

Original Triconex 3625C1 upgraded digital output module for Tricon safety instrumented system, supports supervised & non‑supervised mode.

Product Overview

Triconex 3625C1 is upgraded supervised digital output module for Tricon SIS safety system, adopting TMR triple modular redundant fault‑tolerant architecture. It supports supervised and non‑supervised dual output modes, delivers 24VDC field control signals for solenoid valves, relays and actuators, with enhanced channel diagnostic capability. Widely used as maintenance spare part for ESD and interlock protection in petrochemical, oil‑gas and power plant safety systems.

Key Features

• Upgraded version, supports supervised / non‑supervised dual configuration modes
• TMR triple modular redundant fault‑tolerant design for high system availability
• Comprehensive channel fault diagnosis and LED status indication
• Hot‑swappable, supports online replacement without system shutdown
• Complies with IEC 61508 SIL3 safety certification

• Channel‑to‑channel isolation to reduce field signal interference

•


Technical Specifications

• Brand: Triconex (Schneider Electric)
• Model: 3625C1
• Channel: 32‑channel supervised digital output
• Field Voltage: 24VDC
• Safety Level: IEC 61508 SIL3
• Communication: TriBus backplane bus
• Operating Temp: 0℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Tricon rack mount

•


Compatibility

Compatible with Tricon series SIS chassis and matched processor modules. System configuration download is required after module replacement.
