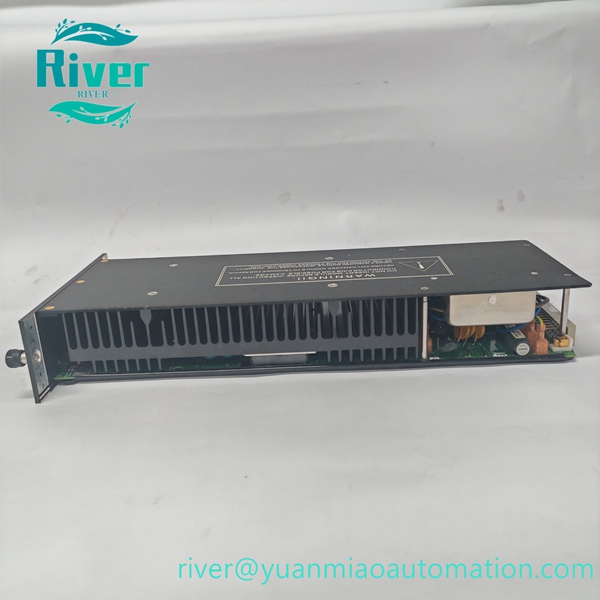

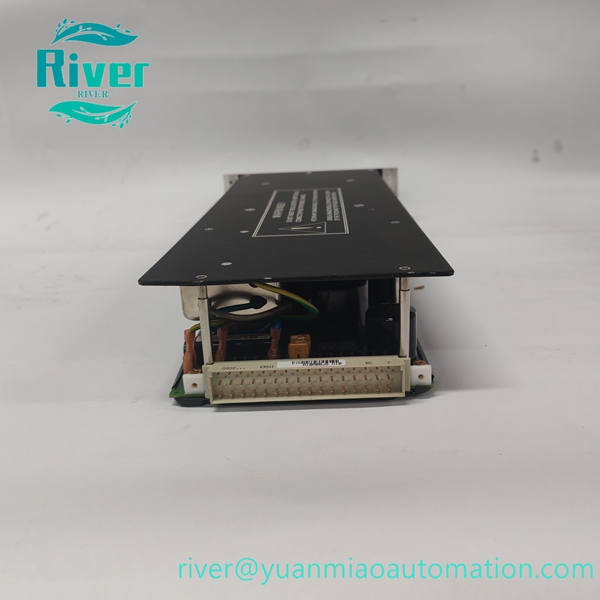

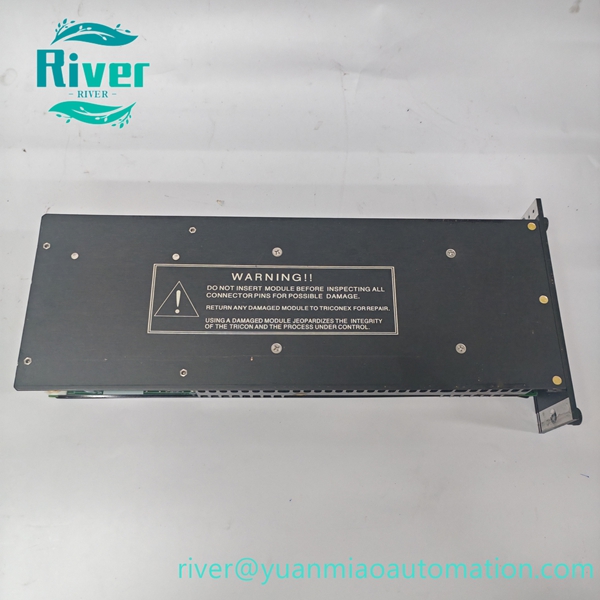

Original Triconex 8312 power supply module for Tricon SIS chassis, hot‑swappable redundant power unit.

Product Overview

Triconex 8312 is a 230VAC input power supply module for Tricon SIS safety instrumented system. It converts AC input into multiple isolated DC outputs to power processor, communication and I/O modules inside the rack. It supports redundant parallel operation and hot‑swap function, widely used as maintenance spare part for ESD, HIPPS and burner management systems in petrochemical, oil‑gas and power plant.

Key Features

• 230VAC input, provides multi‑channel isolated DC power for Tricon chassis
• Supports redundant dual‑module parallel operation to improve system power reliability
• Hot‑swappable design, online replacement without system shutdown
• Built‑in voltage, temperature fault diagnosis and LED status alarm indication
• Over‑voltage, over‑current and over‑temperature multi‑protection mechanism

• Designed for TMR fault‑tolerant safety system, suitable for SIL3 safety‑critical application

•


Technical Specifications

• Brand: Triconex (Schneider Electric)
• Model: 8312
• Input Voltage: 187‑253VAC, 47‑63Hz
• Output: 5VDC 20A, 24VDC 8A, 24VDC 1A auxiliary
• Fuse: 2.5A time‑delay fuse
• Installation: Tricon rack dedicated power slot
• Operating Temp: 0℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃

• Humidity: 5‑95% non‑condensing

•


Compatibility

Compatible with standard Tricon SIS main chassis, works together with processor and I/O modules. Normally two units are installed for redundant power supply configuration.
