Original Woodward 5466‑1035 CPU5200 processor module for MicroNet Plus turbine control system, supports simplex and redundant operation.

Product Overview

Woodward 5466‑1035 is CPU5200 core processor module for MicroNet Plus / MicroNet TMR turbine control system, built‑in PowerPC MPC5200 processor. It executes real‑time governing logic, processes field I/O data for gas turbine, steam turbine and compressor control. It supports simplex and redundant hot‑standby configuration, serves as key maintenance spare part for power generation, oil‑gas and petrochemical industry.

Key Features

• High‑performance PowerPC MPC5200 processor for real‑time turbine governing calculation
• 128MB DDR RAM, 64MB Flash memory for program and data storage
• Supports simplex and redundant hot‑standby running modes for high‑availability control
• Multiple communication ports: dual Ethernet, real‑time network, serial RS232/422/485, dual CAN ports

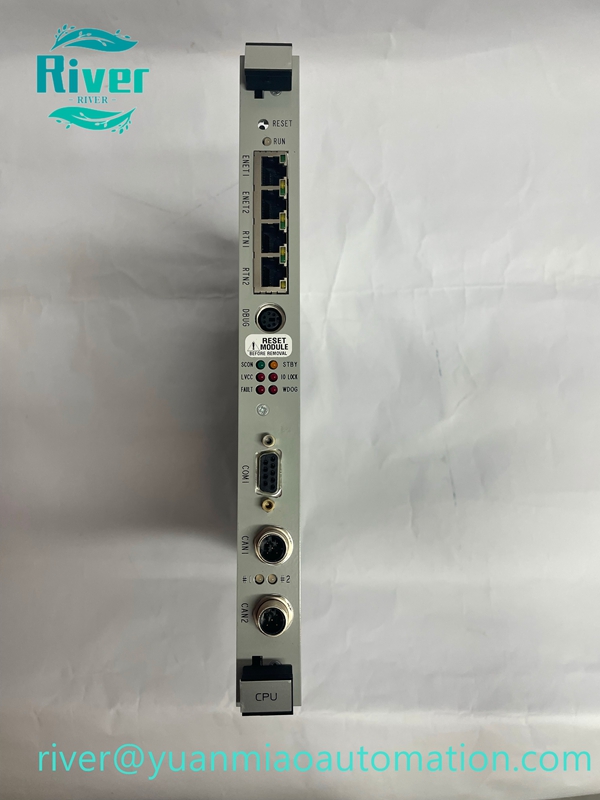

• Front‑panel LED indicators for module status, fault diagnosis and reset button

• VME rack mounting design, meets industrial anti‑vibration standard for harsh site environment

•


Technical Specifications

• Brand: Woodward
• Model: 5466‑1035
• Module Type: CPU5200 Processor Module
• CPU: PowerPC MPC5200
• Memory: 128MB DDR RAM, 64MB Flash
• Power Supply: 24VDC
• Communication: Ethernet, RTN real‑time network, Serial RS232/422/485, CAN
• Operating Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: 14‑slot VME rack mount

•


Compatibility

Applicable for Woodward MicroNet Plus and MicroNet TMR chassis, cooperates with MicroNet series I/O modules. Program download and parameter commissioning are required after replacement.
