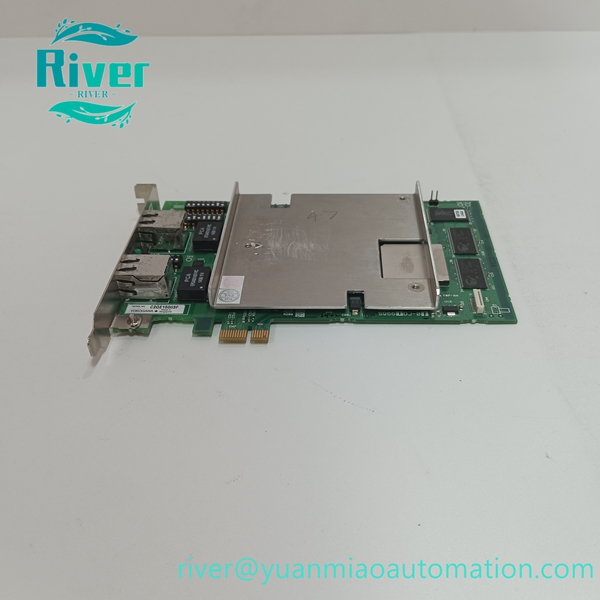

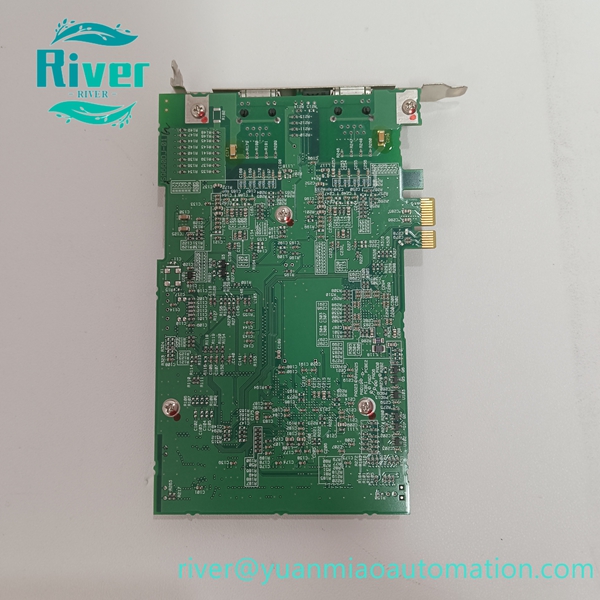

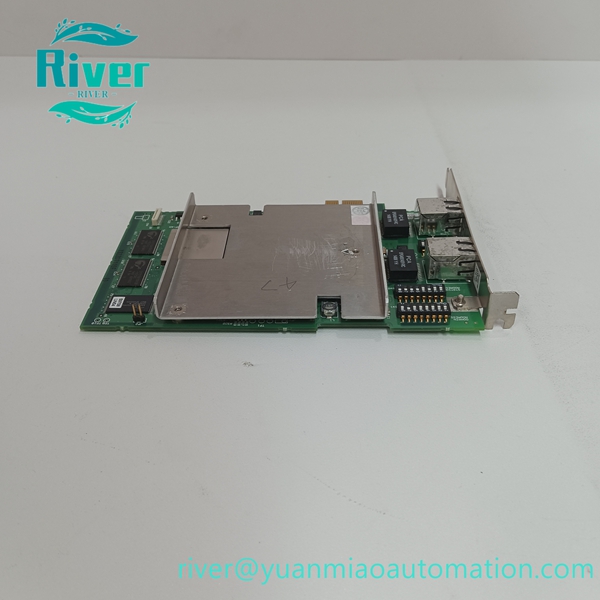

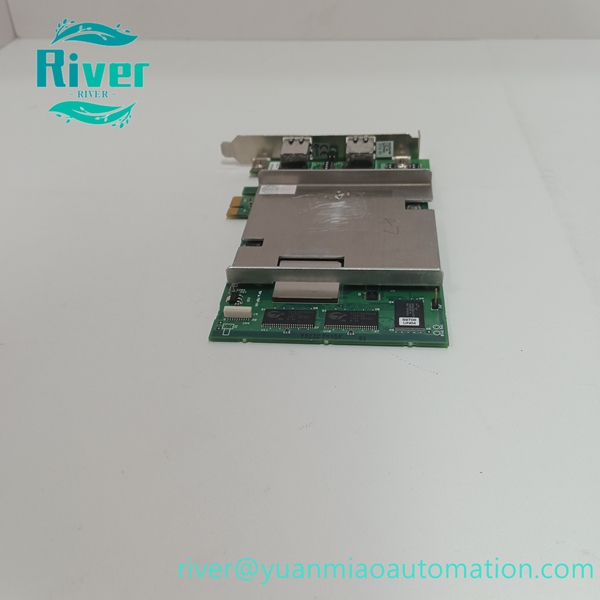

Original Yokogawa Vnet‑IP communication interface card for CENTUM VP DCS system.

Product Overview

V1702 is Yokogawa high‑speed Vnet‑IP PCI‑E interface card, designed for CENTUM VP DCS operator station and engineering workstation. It realizes high‑speed real‑time data exchange between host computer and DCS control network, transmits process data, alarm signals and control commands. Widely used as maintenance spare part for petrochemical, chemical and power plant process control systems.

Key Features

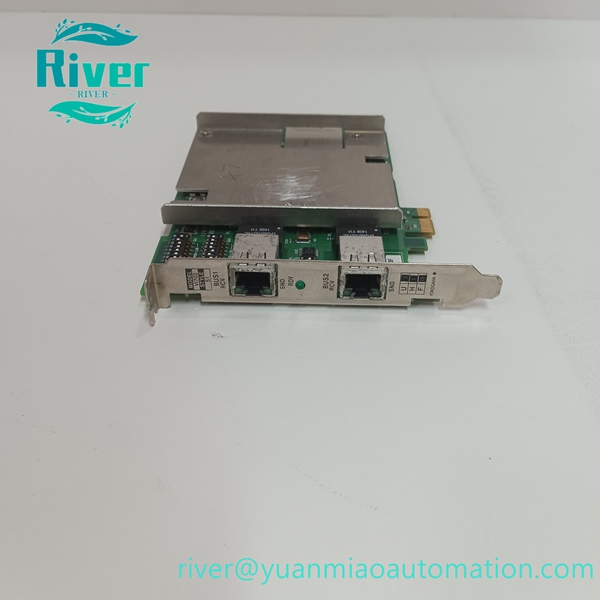

• Dual RJ45 Ethernet ports for Vnet‑IP redundant network communication
• 1Gbps full‑duplex high‑speed real‑time data transmission
• PCI‑Express slot installation for industrial workstation
• On‑board LED indicators for link status and fault diagnosis
• Supports hot‑swap network redundancy to reduce system downtime

• Optimized for Yokogawa CENTUM VP platform, strong anti‑interference performance

•


Technical Specifications

• Brand: Yokogawa
• Model: V1702
• Module Type: Vnet‑IP Interface Card
• Interface: Dual RJ45 1000BASE‑T
• Bus Interface: PCI‑Express
• Protocol: Yokogawa Vnet‑IP
• Max Transmission Distance: 100m with Cat5e cable
• Operating Temp: 0℃ ~ +55℃
• Storage Temp: ‑40℃ ~ +85℃

• Humidity: 5‑95% non‑condensing

•


Compatibility

Compatible with Yokogawa CENTUM VP DCS workstations. Corresponding driver and network configuration are required after replacement.
