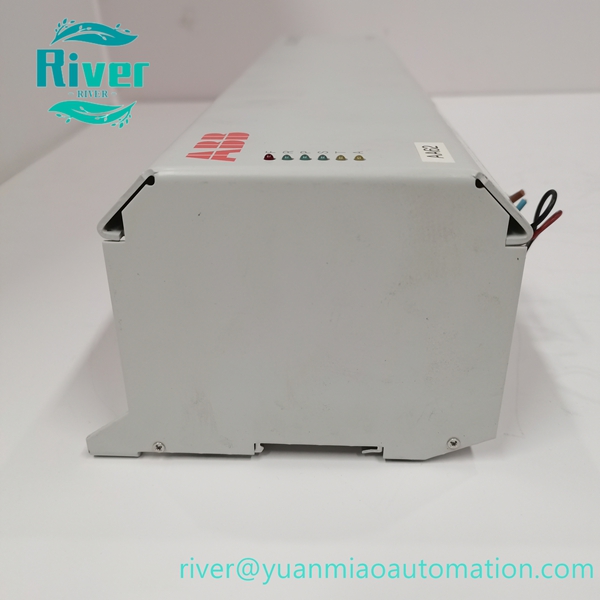

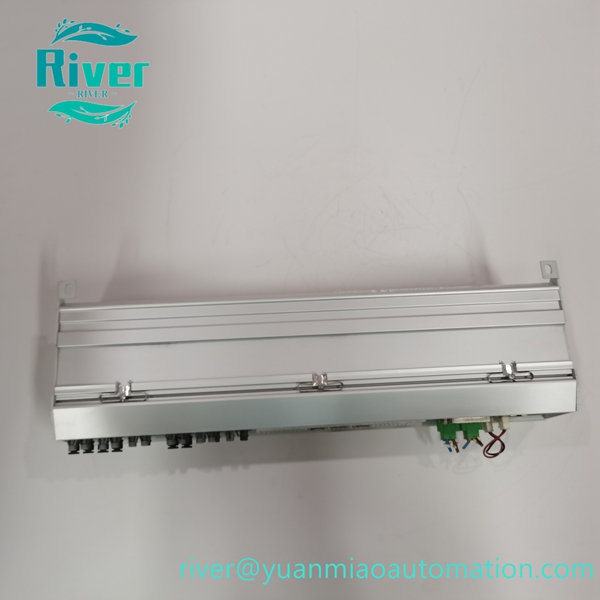

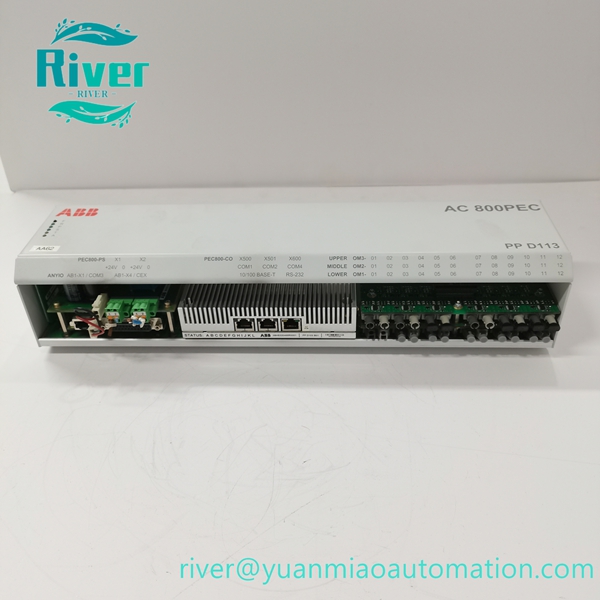

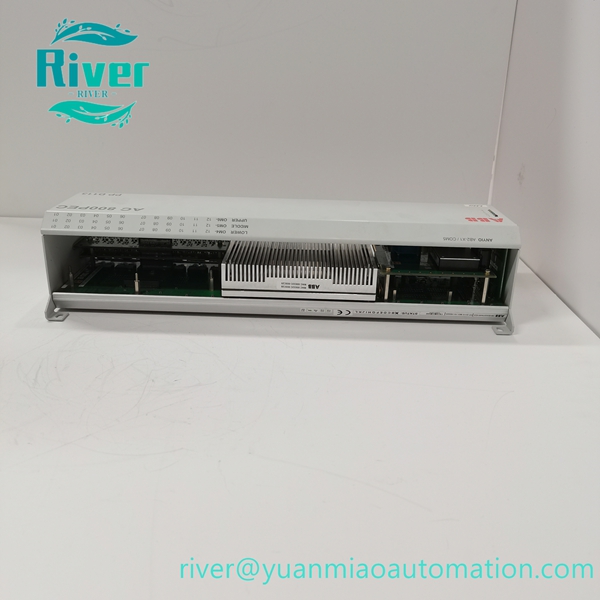

Original ABB 3BHE023784R1023 PPD113 controller for AC 800PEC system, power electronics high‑speed control spare part.

Product Overview

3BHE023784R1023 PP D113 B01‑10‑150000 is PPD113 controller module for ABB AC 800PEC power electronics control system. It is the core processing unit for generator excitation, converter and motor drive control, executes high‑speed real‑time control logic, supports multiple industrial communication protocols, and connects with System 800xA platform. Industrial‑grade hardware, anti‑interference, widely used in power generation, energy and industrial control cabinets.

Key Features

• Dedicated high‑speed controller for AC 800PEC power electronics control system
• Real‑time processing for excitation, converter and motor drive control tasks
• Supports Ethernet, PROFIBUS, Modbus‑TCP communication protocols
• Built‑in fault diagnosis and status monitoring function
• Modular structure, compatible with System 800xA platform

• Rugged industrial design for harsh operating environments

•


Technical Specifications

• Brand: ABB
• Model: 3BHE023784R1023, PP D113 B01‑10‑150000
• Module Type: Controller Module (PPD113)
• System Platform: AC 800PEC Power Electronics Control System
• Power Supply: 24VDC
• Communication: Ethernet, PROFIBUS, Modbus‑TCP
• Operating Temp: ‑40℃ ~ +85℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Rack‑mount inside control cabinet

•


Compatibility

Compatible with ABB AC 800PEC and System 800xA control system. After replacement, download control program, configure communication parameters and verify control loop function.
