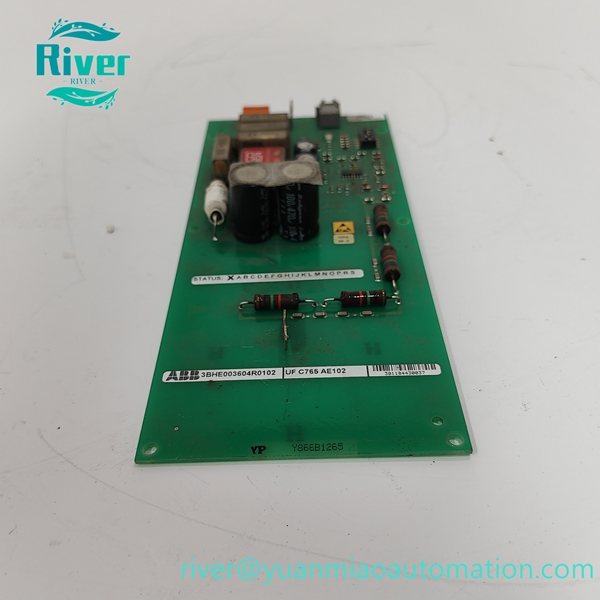

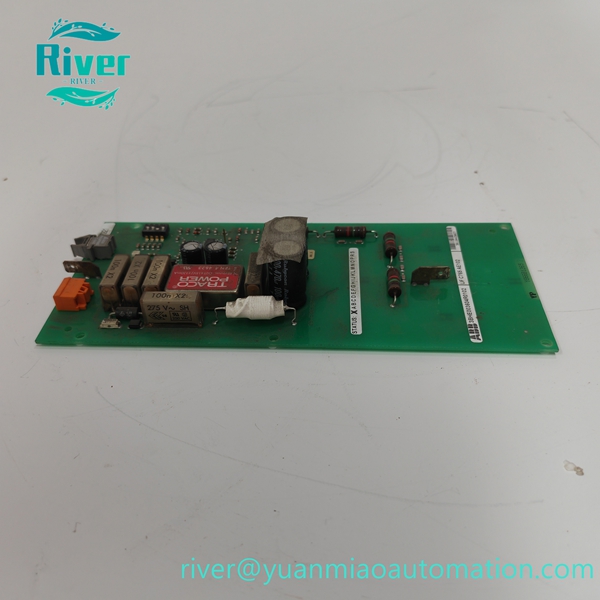

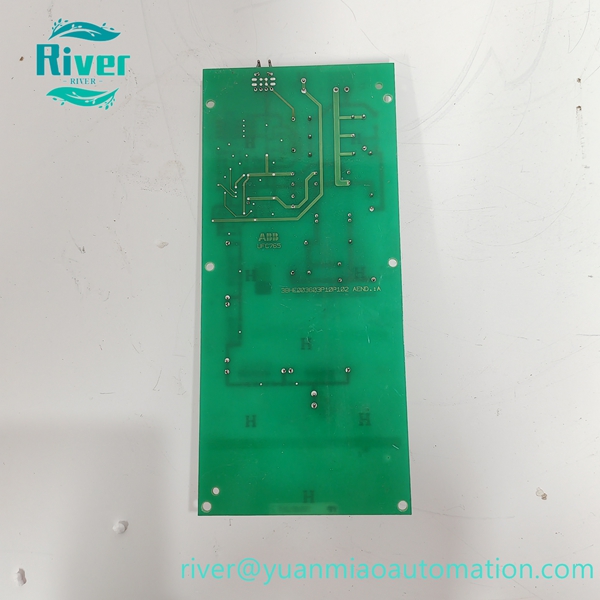

Original ABB UFC765AE102 control interface board for UNITROL 6000 excitation system.

Product Overview

ABB UFC765AE102 3BHE003604R0102 is a high‑speed control interface board for ABB UNITROL 6000 generator excitation system. It undertakes signal processing and optical fiber DDCS data communication between main controller and power unit, ensures high‑speed real‑time signal transmission, widely used in power plant excitation cabinets as replacement spare part.

Key Features

• High‑speed signal processing for excitation control system
• DDCS optical fiber communication with strong anti‑interference capability
• Galvanic isolation for signal channels
• Multi‑channel status signal acquisition and transfer
• LED indicators for module working state and fault diagnosis

• Slot‑in rack mounting design for easy replacement

•


Technical Specifications

• Part number: UFC765AE102, 3BHE003604R0102
• Applicable platform: ABB UNITROL 6000
• Function: Control interface board
• Communication: DDCS fiber optic interface
• Power supply: 24VDC
• Mounting: Rack slot‑in installation

• Diagnosis: LED status indication

•


Compatibility

Compatible with ABB UNITROL 6000 series generator excitation control system and related modules.
