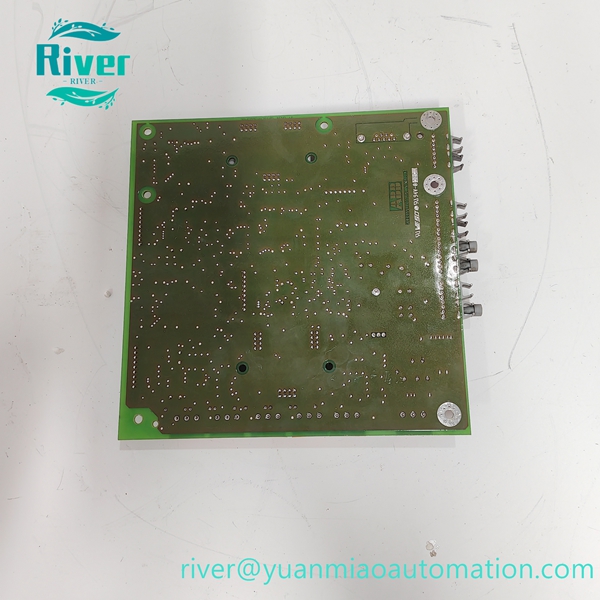

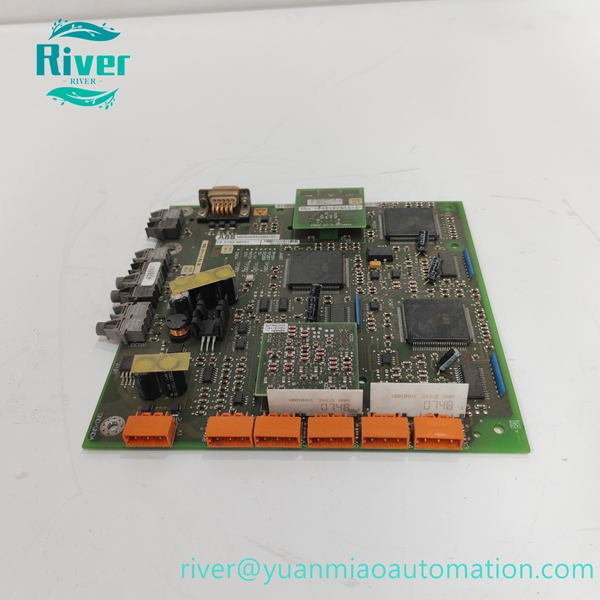

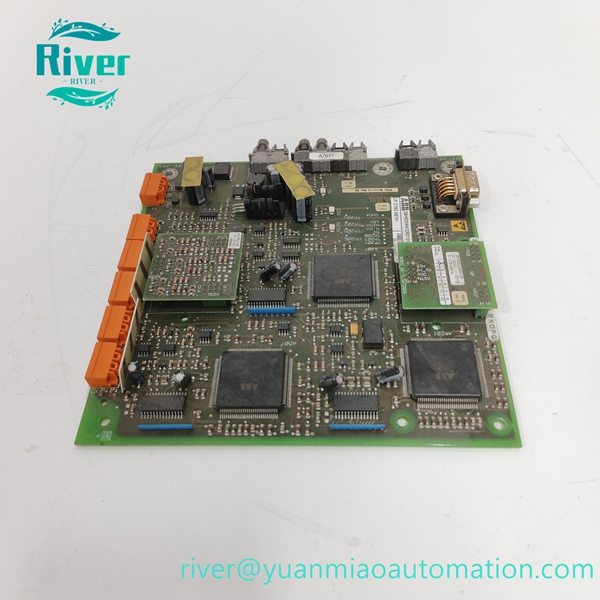

Original ABB UFC762AE101 control board for UNITROL 6000 generator excitation system.

Product Overview

ABB UFC762AE101 3BHE006412R0101 is a functional control board for ABB UNITROL 6000 excitation system. It performs signal acquisition, logic processing and internal data interaction inside excitation cabinet, guarantees stable operation of generator excitation equipment, widely adopted as replacement spare part in power plant excitation control cabinets.

Key Features

• High‑speed signal processing for generator excitation system
• Stable internal bus data exchange between functional units
• Multiple hardware protection for excitation control loop
• Strong anti‑interference capability for cabinet industrial environment
• LED indicators for module working condition and fault diagnosis

• Slot‑in rack mounting for quick installation and replacement

•


Technical Specifications

• Part number: UFC762AE101, 3BHE006412R0101
• Applicable platform: ABB UNITROL 6000
• Function: Excitation control board
• Power supply: 24VDC
• Mounting: Rack slot‑in installation

• Diagnosis: LED status indication

•


Compatibility

Compatible with ABB UNITROL 6000 series generator excitation control system and matching modules.
