Original ABB GVC714A101 gate drive assembly for UNITROL 6000 generator excitation system.

Product Overview

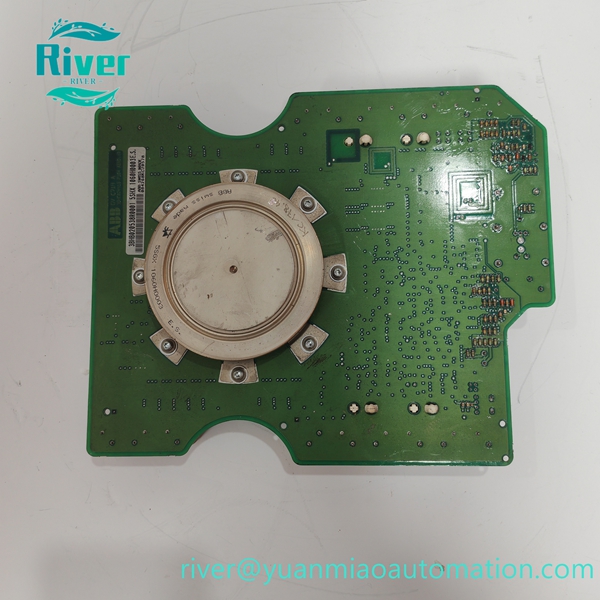

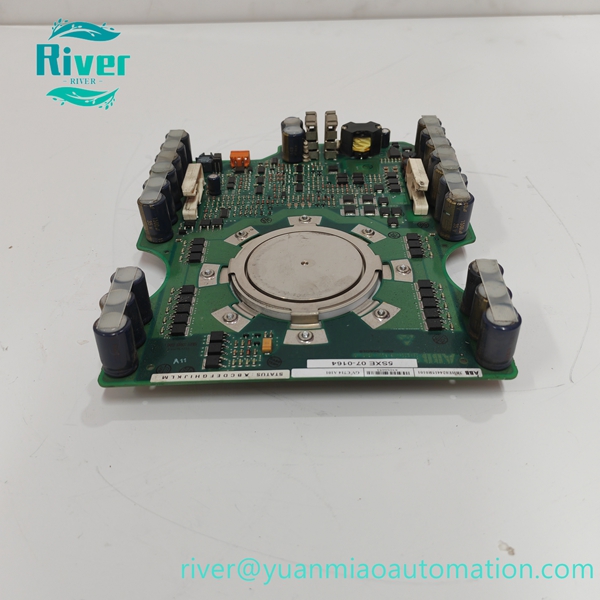

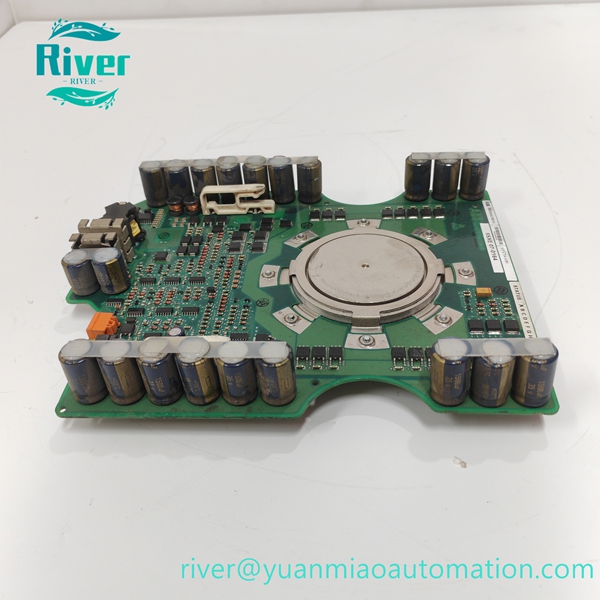

ABB 3BHE024415R0101 GVC714A101 is a complete IGCT gate drive unit assembly including 5SXE07‑0164,3BHB020538R0001,5SHX1006H0003E.S,5SGX1060H00003E.S. It provides trigger driving and protection for IGCT power devices in UNITROL6000 excitation cabinet, guarantees stable operation of power conversion loop, widely used as replacement spare part for power plant excitation equipment.

Key Features

• Integrated IGCT gate trigger drive and protection function
• Fast fault detection and over‑current protection for power semiconductor
• Galvanic isolation between control circuit and high‑power loop
• High anti‑interference performance for cabinet industrial environment
• LED indicators for module working condition and fault diagnosis

• Rack slot‑in installation for convenient maintenance and replacement

•


Technical Specifications

• Part number: 3BHE024415R0101, GVC714A101, 5SXE07‑0164, 3BHB020538R0001, 5SHX1006H0003E.S, 5SGX1060H00003E.S
• Applicable platform: ABB UNITROL 6000
• Function: IGCT gate drive unit assembly
• Power supply: 24VDC
• Mounting: Rack slot‑in installation

• Diagnosis: LED status indication

•


Compatibility

Compatible with ABB UNITROL 6000 series generator excitation control system and matching power unit components.
