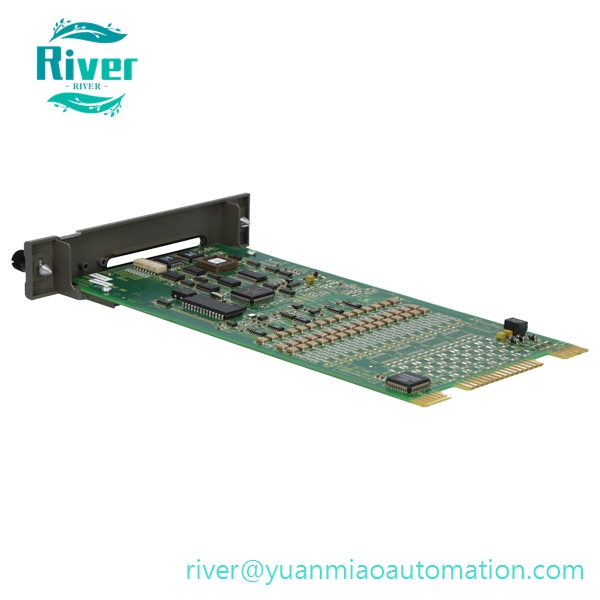

IMFEC12 ABB Bailey INFI90 15-Channel High Level Analog Input Module Original In Stock

Short Description:

High-density isolated analog acquisition card for Symphony DCS, fully channel te

Send email to us

Product Detail

High-density isolated analog acquisition card for Symphony DCS, fully channel tested, 12-month global warranty for thermal power and chemical plant cabinet spare replacement

Product Overview

PN: IMFEC12
Brand: ABB Bailey
Series: Symphony INFI90 Harmony DCS
Type: 15-channel high-level analog input module
Used to collect 4-20mA, 1-5VDC field transmitter signals, convert analog process data into digital signals for DCS controller calculation and monitoring

Core Features

15 independent input channels with galvanic isolation, effectively suppress field surge and electromagnetic interference
Each channel supports independent signal configuration, compatible with two-wire conventional pressure, temperature, flow transmitters
Front panel LED indicators display module running status, power fault and channel abnormal alarms
Standard INFI90 rack slot installation, supports hot swap and system redundant configuration
Built-in self-diagnostic function, real-time monitor module operating state to avoid abnormal data acquisition

Technical Specs

Supported signal: 4-20mA, 1-5VDC, 0-10VDC
Conversion resolution: 12-bit ADC
System power supply: 5VDC, typical current consumption 350mA
Operating temperature: 0℃~60℃
Net weight: 0.476kg
HS Code: 85389091
Certification: CE, UL certified

Compatibility

Matched controller: IMMFP11, IMMFP12, IMMFC series multifunction processors
Applicable device: Standard INFI90 card racks, Symphony redundant control cabinets
Not compatible with AC800M, S800 I/O, Freelance DCS and third-party PLC backplanes

Application

Real-time collection of boiler pressure, steam temperature, pipeline flow signals in thermal power plants
Process parameter monitoring for petrochemical, papermaking and water treatment industries
Spare replacement and technical upgrading of aging INFI90 DCS control systems

Our Advantage

Full channel accuracy test and high voltage insulation withstand test before delivery
12-month warranty for new original and refurbished spare parts
Global DHL, Fedex door-to-door delivery, FOB Xiamen available
Free technical support for rack configuration, signal wiring and module fault troubleshooting
