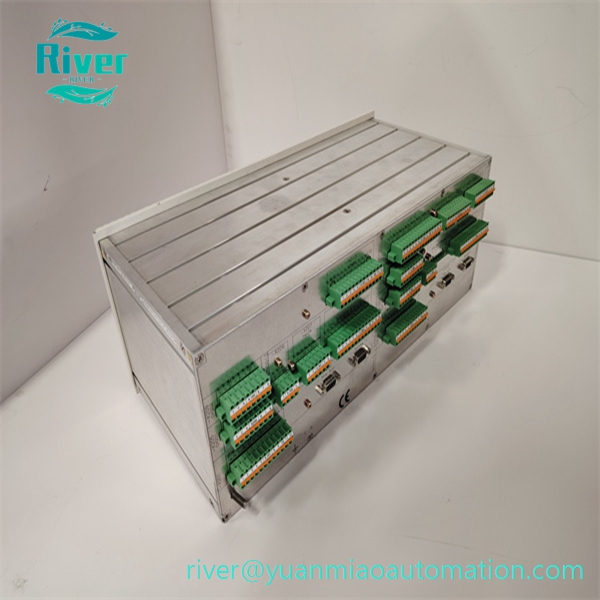

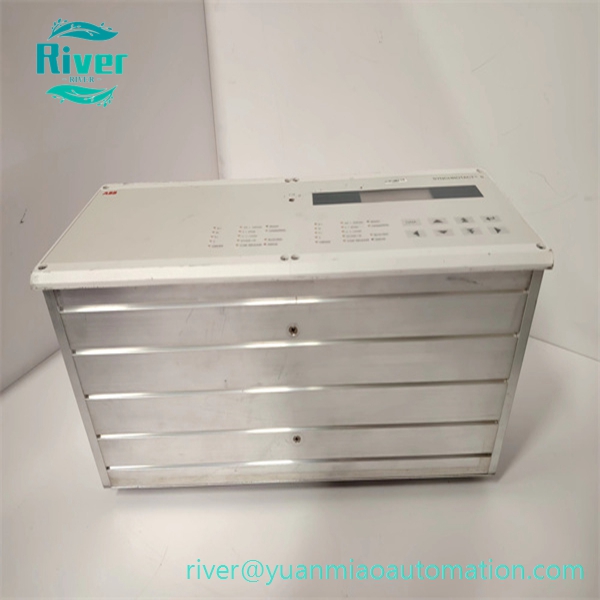

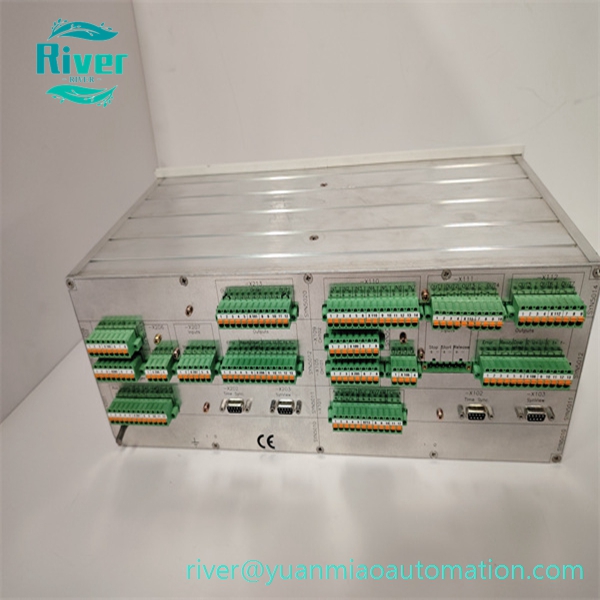

ABB 3BHB006716R0217 digital synchronizer, used for generator automatic grid paralleling, high precision voltage, frequency and phase detection, dual redundant design, stable and reliable for power system control.

Product Overview

ABB 3BHB006716R0217 is an industrial digital synchronizer module, applied for generator synchronizing and paralleling with power grid. It measures voltage, frequency and phase difference accurately to complete automatic synchronization control, widely used in power plant, petrochemical and metallurgy power control systems.

Key Features

• Dual redundant processor architecture, high operation reliability
• High-precision phase, frequency, voltage measurement and automatic matching
• Fast synchronization response, supports multiple group parameter preset
• Support IEC61850 communication, easy to connect with substation automation system

• DIN rail installation, IP20 protection grade, strong anti-interference capability

•


Technical Specifications

• Part No: 3BHB006716R0217
• Type: Digital Synchronizer
• Mounting: 35mm DIN rail
• Protection: IP20

• Compliance: IEC 60255, ANSI/IEEE C37.90

•


Application

Power station generator grid connection, industrial power system synchronization control, substation automation system.
