3500/22M 288055-01 Bently Nevada Transient Data Interface Module Original In Stock

Short Description:

Rack interface & high-speed transient data acquisition module for 3500 monitorin

Send email to us

Product Detail

Rack interface & high-speed transient data acquisition module for 3500 monitoring rack, connecting to System 1 software via Ethernet, fully tested with 12-month warranty for turbomachinery spare replacement

Product Overview

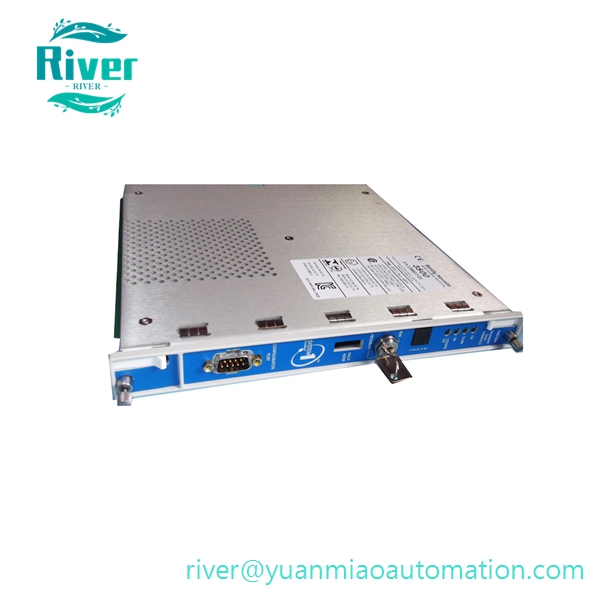

PN: 3500/22M, 288055-01
Brand: Bently Nevada
Series: 3500 Machinery Protection System
Type: Transient Data Interface (TDI) Module
Function: It serves as the core rack communication gateway integrated with RIM function, collecting steady-state vibration data and transient waveform signals from all M-series monitor modules. It uploads data to System 1 diagnostic platform and 3500 configuration software through Ethernet for equipment fault analysis, predictive maintenance and rack parameter debugging.

Core Features

Equipped with RJ45 electrical Ethernet, fiber Ethernet and USB-B interfaces for flexible wired or long-distance optical communication
Captures pre-alarm and post-alarm transient waveform data to locate rotating equipment abnormal faults
Installed in the first rack slot adjacent to power supply, managing unified communication of the whole 3500 rack
Supports TMR triple redundant system channel data comparison and voting function
Front panel LED indicators display rack operation, communication and module running status intuitively

Technical Specifications

Power Consumption: 10.5W
Communication: 10/100Mbps auto-adaptive Ethernet, 100Base-FX fiber, USB
Operating Temperature: -40℃ ~ +70℃
HS Code: 8538900000
Certifications: CE
Product Status: Discontinued original production, supplied with fully tested surplus modules

Compatibility

Matched Device: Bently Nevada 3500 series rack
Compatible Modules: All 3500 M-series monitor cards including 3500/40M, 3500/42M, 3500/45
Supporting Software: 3500 rack configuration software, System 1 condition monitoring platform
Not Compatible: Third-party monitoring racks and non-M series monitor modules

Application

Data communication and fault diagnosis for steam turbines, gas turbines and compressors in power and petrochemical industries
Centralized data collection and remote monitoring of multiple 3500 protection racks
Spare replacement and technical upgrade of old 3500 machinery protection systems

Our Advantage

Passed rack communication linkage, transient data acquisition and continuous aging tests before delivery
12-month warranty provided for tested surplus modules
