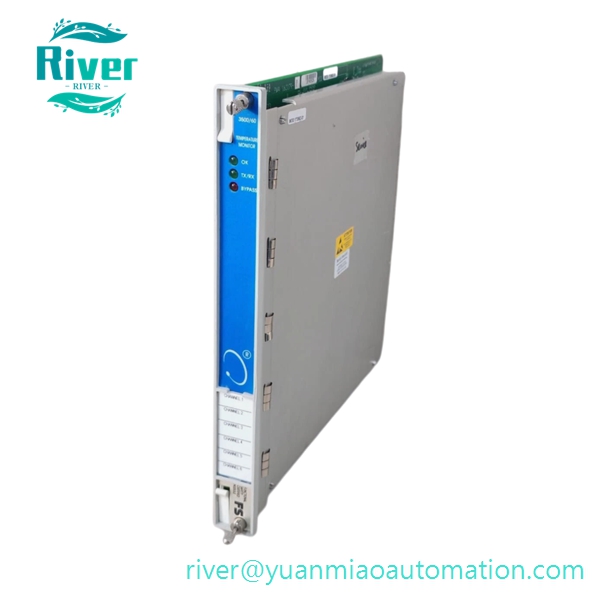

• PN: 3500/60, Part No: 163179-01
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Type: Temperature Monitor Module
• Function: This 6-channel module collects temperature signals from RTD and thermocouple sensors, monitors bearing, casing and stator temperature of turbines, compressors and generators. It triggers warning and danger alarms when temperature exceeds preset limits, and transmits real-time temperature data to the upper monitoring platform for equipment overheat protection and predictive maintenance.

Core Features

1. Six configurable channels compatible with multi-type RTD and thermocouple sensors
2. Optional 250VDC channel-to-channel isolation version for strong anti-electromagnetic interference
3. Supports TMR triple redundant configuration to avoid single-point failure and improve system safety
4. User-programmable two-stage alarm thresholds with flexible delay time setting
5. Hot-swappable rack design with front LED indicators for rapid fault diagnosis

Technical Specifications

• Channel Quantity: 6
• Supported Sensors: Platinum/Nickel/Copper RTD, J/K/T/E type thermocouple
• Isolation: 250VDC channel isolation (isolated model)
• Power Consumption: 7W
• Operating Temperature: -30℃ ~ +65℃
• Net Weight: 0.9kg
• HS Code: 9031809090
• Certifications: CE
• Product Status: Discontinued original production, supplied with fully tested surplus modules

Compatibility

• Matched Equipment: Bently Nevada standard 3500 series rack
• Supporting Software: 3500 rack configuration software, System 1 condition monitoring platform
• Not Compatible: 3500/61 module with recorder output function and third-party monitoring racks

Application

1. Overheat safety monitoring for large rotating equipment in power, petrochemical and metallurgical industries
2. Real-time temperature protection for motor bearings, unit casings and generator stators
3. Fault replacement and technical retrofit of legacy 3500 machinery protection systems

Our Advantage

• Completed temperature signal calibration and continuous aging test before delivery
• 12-month warranty provided for tested surplus modules
