Product Overview

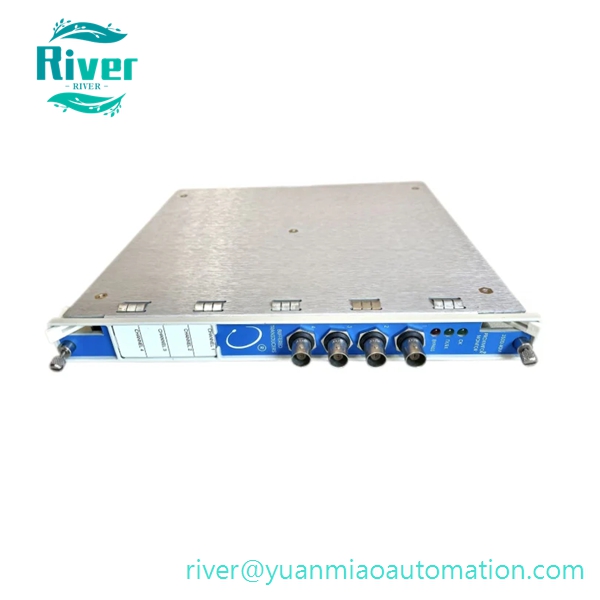

• PN: 3500/40M, Part No: 140734-01
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Type: Proximitor Monitor Module

• Function: This 4-channel monitor works with eddy current proximity probes to measure radial vibration, axial thrust displacement, eccentricity and differential expansion of turbines, compressors and generators. It sets two-stage alarm thresholds for equipment fault protection and transmits real-time operating data to the upper monitoring platform.

•


Core Features

1. Four independently configurable channels supporting paired channel function setup
2. Compliant with API 670 standard, available for TMR triple redundant deployment to avoid single-point failure
3. Equipped with 4-20mA analog output and relay alarm output for interlock control
4. Hot-swappable rack installation, front LED indicators for running status and fault quick diagnosis

5. High measurement accuracy, stable signal processing under strong electromagnetic interference environment

6.


Technical Specifications

• Channel Quantity: 4
• Supported Sensor: Eddy current proximity transducer
• Typical Power Consumption: 7.7W
• Operating Temperature: -30℃ ~ +65℃
• HS Code: 8538900000
• Certifications: CE

• Product Status: Discontinued, supplied with fully tested surplus modules

•


Compatibility

• Matched Device: Bently Nevada 3500 series rack
• Matching I/O Module: 125680-01 internal termination I/O card
• Supporting Software: 3500 rack configuration software, System 1 condition monitoring platform

• Not Compatible: Third-party monitoring racks and non-proximity monitoring modules

•


Application

1. Vibration and axial displacement safety protection for large rotating units in power and petrochemical industries
2. Bearing and rotor abnormal fault early warning and emergency interlock protection
3. Maintenance replacement and technical retrofit of legacy 3500 machinery protection systems

Our Advantage

• Passed sensor signal calibration and continuous aging test before delivery
• 12-month warranty provided for tested surplus modules
