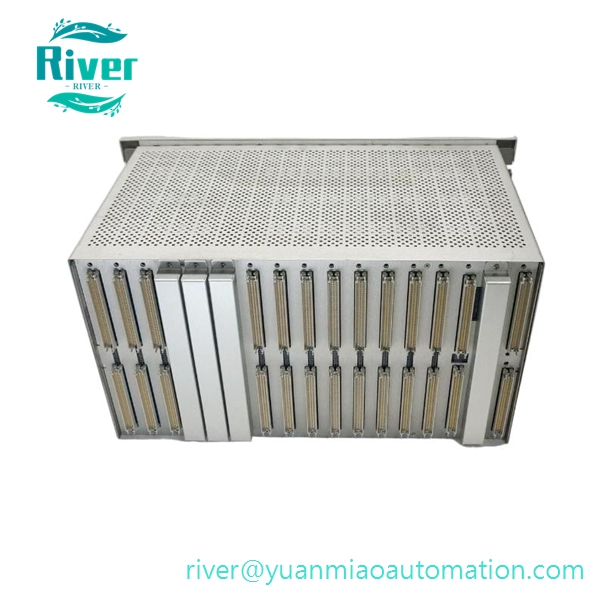

Product Overview

• PN: 3500/05-01-03-00-00-00
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Type: 12-Slot Monitoring Rack Chassis

• Function: Standard 12-slot rack acts as the mounting carrier and bus communication backplane for all 3500 series modules. It supports dual redundant power supply installation, realizes stable data interaction between each monitoring card, and is used to build vibration, temperature, overspeed safety protection systems for turbines, compressors and other rotating equipment.

•


Core Features

1. 12 standard slots, flexible layout for power, communication, monitoring and relay modules
2. High-reliability internal backplane bus guarantees long-term stable data transmission
3. Reserved dual power supply positions to realize 1+1 redundant power backup
4. Standard industrial cabinet mounting structure with good heat dissipation performance

5. Strict electromagnetic shielding design, stable operation under strong interference industrial environment

6.


Technical Specifications

• Slot Number: 12 slots
• Mounting Method: Standard cabinet rack installation
• Operating Temperature: 0℃ ~ 65℃
• HS Code: 8538900000
• Certifications: CE

• Product Status: Discontinued, tested surplus racks available

•


Compatibility

• Matched Modules: All 3500 series power, communication, monitoring, relay and interface modules
• Supporting Software: 3500 configuration software, System 1 condition monitoring platform

• Not Compatible: Third-party brand monitoring modules and non-3500 series racks

•


Application

1. Assembly of complete machinery safety protection monitoring system for power and petrochemical rotating equipment
2. Centralized installation of various monitoring modules inside industrial control cabinets
3. Old equipment renovation, rack failure replacement and system capacity expansion
