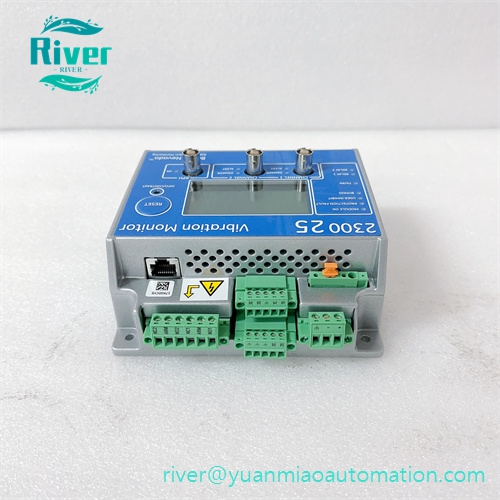

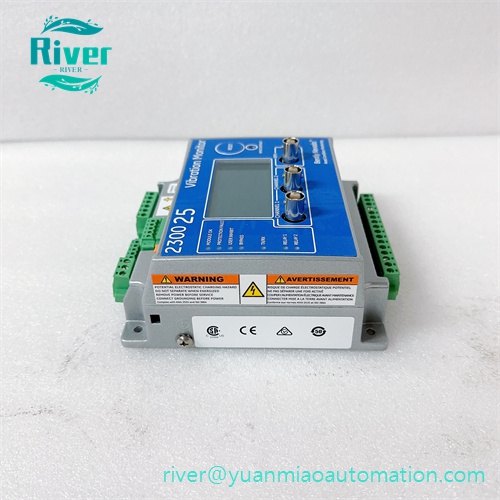

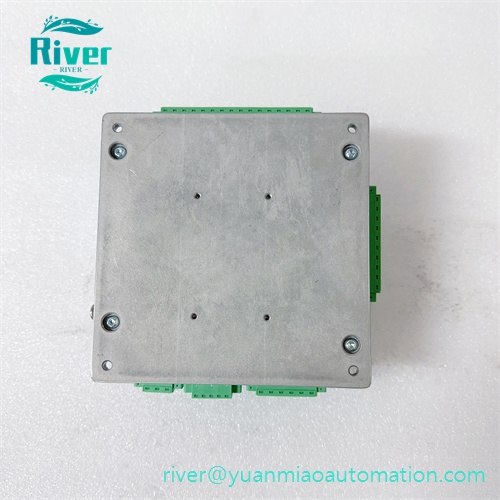

2300/25-00 Bently Nevada Dual Channel Vibration Monitor With SPA Interface Original In Stock

Short Description:

Compact 2-channel vibration monitor with dedicated Keyphasor speed input, suppor

Send email to us

Product Detail

Compact 2-channel vibration monitor with dedicated Keyphasor speed input, supports Trendmaster SPA & Modbus TCP for medium-low critical rotating machinery protection, fully tested with 12-month warranty for industrial spare replacement

Product Overview

PN: 2300/25-00
Brand: Bently Nevada (Baker Hughes)
Series: 2300 Cost-Effective Monitoring Series
Type: Dual-Channel Vibration Monitor
Function: Equipped with 2 vibration input channels and 1 independent Keyphasor speed channel. Collects vibration and rotational speed signals from accelerometers, Velomitors and proximity probes, calculates RMS/peak vibration and rotational speed, triggers multi-stage alarm relay output, and uploads diagnostic data to System 1 via Trendmaster SPA interface for equipment fault early warning.

Core Features

2 synchronized vibration channels + 1 dedicated speed channel, supports acceleration, velocity and displacement measurement
Built-in Trendmaster SPA communication interface compatible with System 1 diagnostic platform, also supports Modbus TCP over Ethernet
2 programmable alarm relay outputs, latched alarm reset, monitor bypass and configuration lock functions
3 BNC buffered signal outputs for on-site waveform debugging, with short-circuit and anti-EMI protection
DIN rail or panel mounting design, compact size for decentralized machine monitoring

Technical Specifications

Vibration Channels: 2
Keyphasor Speed Channel: 1
Supported Sensors: ICP accelerometer, Velomitor, eddy current proximity probe, magnetic pickup
Power Supply: 24VDC
Operating Temperature: -25℃ ~ +65℃
Dimension: 130 × 35 × 120 mm
Net Weight: ~0.6kg
HS Code: 8538900000
Certifications: CE, UL, CSA
Product Status: Active production, new original and tested surplus available

Compatibility

Configuration Software: BNMC (Bently Nevada Monitor Configuration Software)
Upper Platform: System 1 predictive maintenance system, DCS, PLC
Not Compatible: 3500 series rack backplane, dedicated 3500 rack modules

Application

Continuous vibration protection for fans, pumps, compressors, generators and small turbines in power, chemical, water treatment industries
Decentralized on-machine monitoring for medium-low critical rotating equipment
Retrofit and spare replacement of legacy 2300 monitoring systems
