VGA front module for local touchscreen visualization of 3500 machinery protection rack data, connects external touch VGA monitor to display vibration, temperature and alarm parameters, surplus spare parts for turbomachinery monitoring system

Product Overview

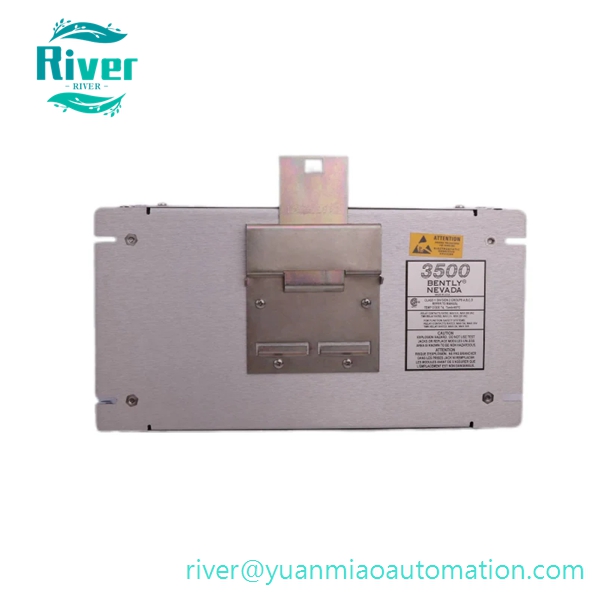

• PN: 3500/94, Part No: 145988-01
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Type: VGA Display Front Module

• Function: Full-height rack front display interface card, matched with dedicated rear I/O card and external touch VGA screen. It collects all real-time monitoring data, channel values and alarm logs from every module inside the 3500 rack, outputs VGA signal to touch display for on-site local operation and data browsing. Operators can check vibration, temperature, position, overspeed data, system fault records and customize 9 groups of dedicated monitoring screens via touch panel.

•


Core Features

1. Equipped with standard VGA, serial communication ports on rear side, supports wired connection to touchscreen up to 6 meters away from rack
2. Real-time synchronous acquisition of all rack channel measurement data, alert/danger alarm status and historical event logs
3. Supports customized page grouping, classify monitoring points by unit/train for quick overview of turbomachinery operating status
4. Color-coded alarm visual reminder, integrated self-diagnosis to detect communication failure between module and display

5. Hot-swappable rack design, front panel LED indicators for power, running and communication fault status

6.


Technical Specifications

• Form Factor: Full-height single-width front module for 3500 rack
• External Interface: VGA video port, serial signal port
• Max Cable Distance: 6m standard cable, long-distance extension via KVM extender
• Typical Power Consumption: 7.2W
• Operating Temperature: -40℃ ~ +70℃
• Net Weight: 0.78kg
• HS Code: 8538900000
• Certifications: CE

• Product Status: Discontinued, fully tested surplus modules available

•


Compatibility

• Matched Rack: All standard 3500 series 12-slot / 14-slot monitoring racks
• Supporting Rear Card: Corresponding 3500/94 rear I/O termination module
• Matching Display: 10-inch / 15-inch industrial touch VGA monitor
• Supporting Software: 3500 rack configuration software, System 1 condition monitoring platform

• Not Compatible: 3500/94M upgraded display module, third-party monitoring racks

•


Application

1. On-site local visualization and operation for steam turbine, gas turbine, compressor 3500 TSI protection racks in power and petrochemical plants
2. Real-time check of vibration, axial displacement, bearing temperature, overspeed parameters and alarm records without connecting upper computer
3. Spare replacement and local display function expansion of legacy 3500 machinery protection systems
