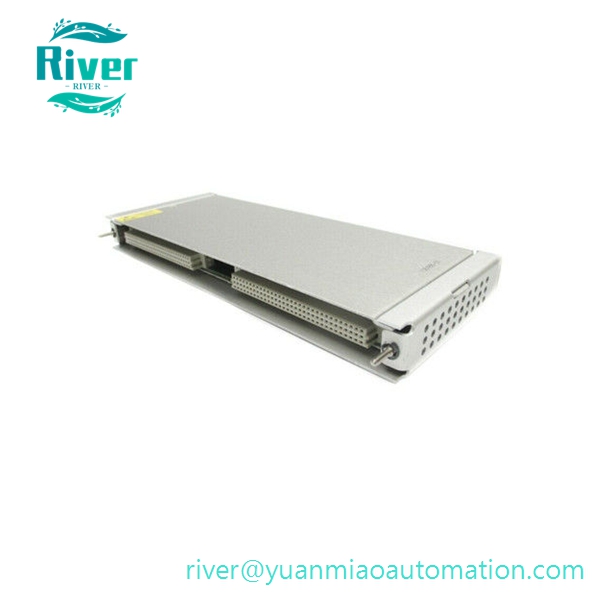

3500/92 136188-01 Bently Nevada Communication Gateway Front Module Original In Stock

Short Description:

Multi-protocol communication gateway front card for 3500 TSI system, dual Ethern

Send email to us

Product Detail

Multi-protocol communication gateway front card for 3500 TSI system, dual Ethernet + serial Modbus interface, transmits vibration/temperature/alarm data to DCS/PLC, surplus spare parts for turbomachinery monitoring

Product Overview

PN: 3500/92, Part No: 136188-01
Brand: Bently Nevada
Series: 3500 Machinery Protection TSI System
Type: Communication Gateway Front Module
Function: Core network interface front card of the 3500 rack, matched with rear I/O card 125736-01. It collects all real-time measurement values, alarm status and fault logs from vibration, temperature, overspeed, relay modules inside the rack, converts data into standard industrial protocols to realize bidirectional communication between the TSI rack and external DCS, PLC, SCADA and System 1 monitoring platform.

Core Features

Dual RJ45 Ethernet ports + rear serial RS232/RS422 interface, supports redundant network transmission
Compatible with Modbus TCP, Modbus RTU and BN proprietary configuration protocol, freely editable Modbus register mapping
Built-in self-diagnosis function to monitor network link, bus communication and module operating status
Hot-swappable rack installation, front LED indicators for power, network activity and fault alarms
Supports remote rack parameter configuration and real-time data trending upload for predictive maintenance

Technical Specifications

Typical Power Consumption: 5W
Ethernet Standard: 10BASE-T RJ45
Serial Interface: RS232 / RS422
Supported Protocols: Modbus TCP, Modbus RTU, Bently Nevada proprietary protocol
Operating Temperature: -40℃ ~ +70℃
HS Code: 8538900000
Certifications: CE
Product Status: Discontinued, fully tested surplus modules available

Compatibility

Matched Rack: All standard 3500 series 12-slot /14-slot monitoring chassis
Mandatory Matching Rear Card: 125736-01 serial communication rear I/O module
Upper Systems: DCS, PLC, System 1 predictive maintenance platform
Not Compatible: 3500/20, 3500/22M communication modules, third-party monitoring racks

Application

Data interconnection for steam turbine, gas turbine and compressor 3500 TSI racks in power and petrochemical plants
Real-time uploading of vibration, axial displacement, bearing temperature and overspeed alarm data to plant centralized control system
Communication function expansion and fault replacement of legacy 3500 machinery protection systems
