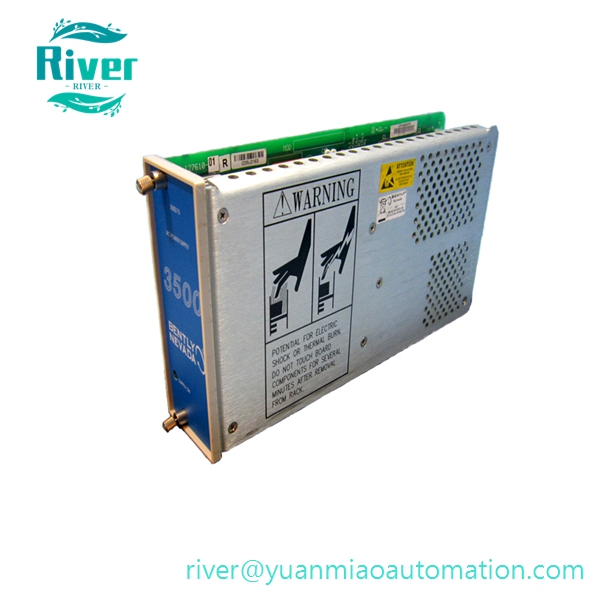

Half-height universal AC power supply for 3500 machinery protection rack, supports 85–264V wide AC input, allows 1+1 redundant hot-swap backup, supplies stable DC power to all monitoring modules, surplus spare parts for turbomachinery TSI system

Product Overview

• PN: 3500/15, Part No: 127610-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI System
• Type: Universal AC Input Power Supply Module

• Function: Half-height dedicated power unit mounted on the left power slot of all 3500/05 racks. Converts wide-range industrial AC input into multiple regulated internal DC voltages for backplane bus, vibration monitors, communication, relay and display modules. The rack supports two 3500/15 units for redundant backup; single unit can fully power a complete 14-slot rack without load loss.

•


Core Features

1. Universal wide AC input: 85–264VAC, 47–63Hz, adapts to global plant power grids
2. 150W rated output power, sufficient to drive full 12/14-slot rack with all modules loaded
3. Redundant hot-swappable design: replace one power unit without rack shutdown if dual power installed
4. Built-in overvoltage, overcurrent, short-circuit and overheat automatic protection circuit
5. Front panel status LED indicator to display power normal, fault and backup switching status

6. Compact half-height form factor, matches dedicated power slots of standard 3500 rack chassis

7.


Technical Specifications

• Input Range: 85~264 VAC, 47~63 Hz
• Rated Output Power: 150W
• Form Factor: Half-height single slot
• Dimension: 120.7 × 50.8 × 251.5 mm
• Net Weight: 1.39 kg
• Operating Temperature: -25℃ ~ +70℃
• HS Code: 8538900000
• Certifications: CE

• Product Status: Discontinued, fully tested surplus power modules available

•


Compatibility

• Matched Rack: All 3500/05 series 12-slot & 14-slot monitoring chassis
• Installation Position: Two half-height power slots on the far left of rack
• Matching Accessory: Corresponding AC power input termination module
• Compatible Loads: All 3500 series monitor, relay, communication, Keyphasor and display modules

• Not Compatible: 3500 low/high voltage DC power modules, third-party rack chassis

•


Application

1. Primary and redundant power supply for steam turbine, gas turbine, compressor 3500 TSI protection racks in power & petrochemical plants
2. Stable power source for continuous 24/7 vibration, axial displacement and overspeed safety monitoring
3. Fault replacement and redundant power capacity expansion of legacy 3500 machinery protection systems
