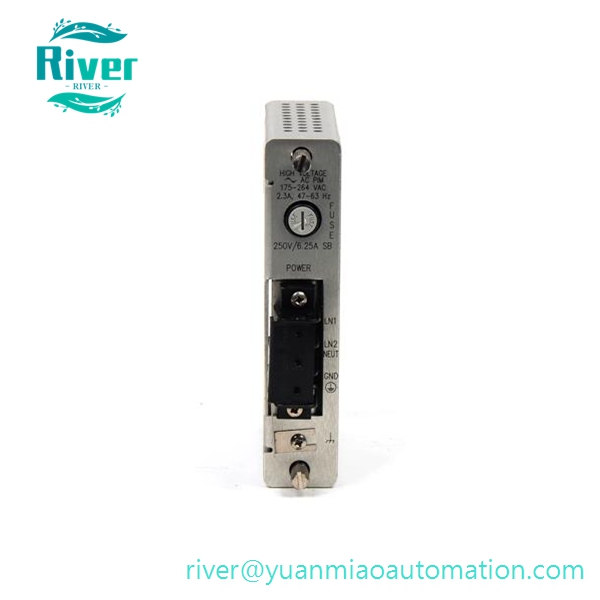

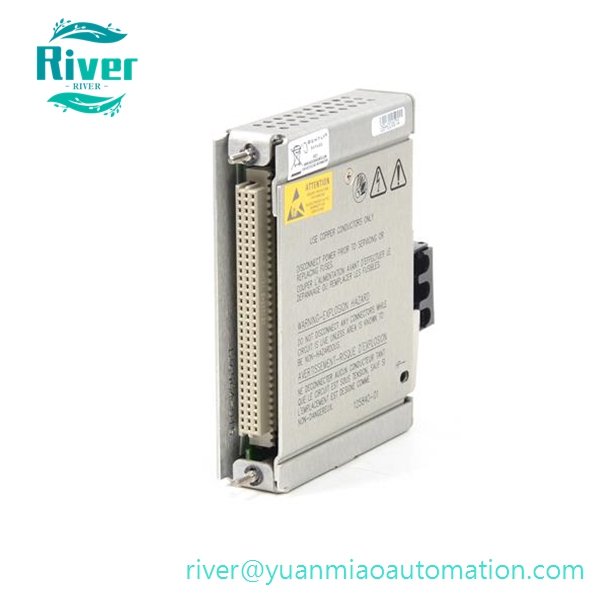

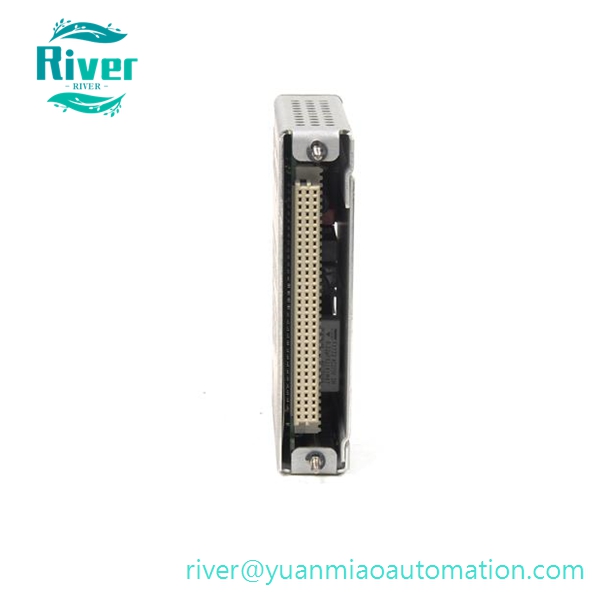

125840-01 Bently Nevada 3500/15 High Voltage AC Power Input Rear Module Original In Stock

Short Description:

High voltage AC power input rear termination card matched with 3500/15 front pow

Send email to us

Product Detail

High voltage AC power input rear termination card matched with 3500/15 front power module 127610-01, 175–264Vac power wiring terminal for 3500 TSI rack redundant power supply, surplus spare parts for turbomachinery monitoring system

Product Overview

PN: 125840-01
Brand: Bently Nevada (Baker Hughes)
Series: 3500 Machinery Protection TSI System
Type: High Voltage AC Power Input Module (PIM Rear Card)
Function: Dedicated rear power termination board paired with front AC power module 3500/15 (127610-01). It provides high-voltage AC wiring terminals, receives 175–264Vac industrial mains input and transmits power to the front power supply unit, then converts to stable multi-channel DC bus voltage for all rack monitoring, communication and relay modules. Multiple PIM cards support 1+1 redundant power backup layout of the whole rack.

Core Features

Designed for high voltage AC input 175–264Vac, fits standard industrial 220V plant power grid
Matches half-height 3500/15 front power module, front-rear paired installation in rack left power slots
Built-in overvoltage, short-circuit fuse protection, automatically cut off abnormal input to protect rack backplane
Screw-type wiring terminals, stable connection for long-term continuous industrial operation
Hot-swappable rear slot installation; redundant power configuration allows single PIM replacement without rack power failure

Technical Specifications

Rated Input Voltage: 175 ~ 264 VAC, 47–63Hz
Matching Front Module: 3500/15 universal AC power supply (127610-01)
Form Factor: Half-height rear termination card
Net Weight: 0.34kg
Operating Temperature: -25℃ ~ +70℃
HS Code: 8538900000
Certifications: CE
Product Status: Discontinued, fully tested surplus modules available

Compatibility

Matched Rack: All 3500/05 series 12-slot & 14-slot monitoring chassis
Supporting Front Card: 3500/15 AC power supply front module 127610-01
Parallel Combination: Two sets of 125840-01 + 127610-01 realize redundant dual power supply
Not Compatible: Low voltage AC PIM 125840-02, DC power input rear cards, third-party rack chassis

Application

Power input wiring terminal for steam turbine, gas turbine, compressor 3500 TSI racks in power and petrochemical plants
Build redundant AC power supply system to ensure uninterrupted vibration, overspeed and bearing monitoring
Fault replacement and power system renovation of legacy 3500 machinery protection racks
