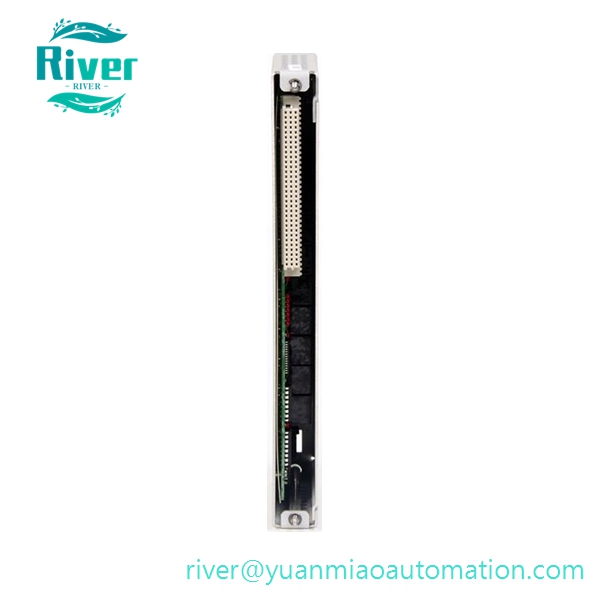

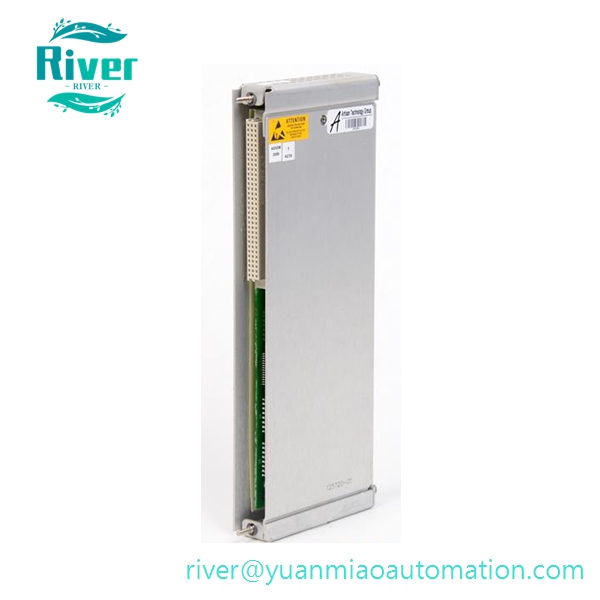

3500/32 125720-01 Bently Nevada 4-Channel Relay Output Module Original In Stock

Short Description:

Four SPDT programmable relay card for 3500 TSI system, outputs alarm & trip inte

Send email to us

Product Detail

Four SPDT programmable relay card for 3500 TSI system, outputs alarm & trip interlock signals to DCS/ESD, supports logic voting for turbomachinery safety protection, tested surplus spare parts

Product Overview

PN: 3500/32, Part No: 125720-01
Brand: Bently Nevada (Baker Hughes)
Series: 3500 Machinery Protection TSI System
Type: 4-Channel Relay Output Module
Function: Full-height relay front module installed in any available slot of 3500 rack. It receives alert/danger alarm, sensor fault and system abnormal signals from all monitoring cards inside the rack. Users configure AND/OR voting logic via rack software to drive 4 independent relay contacts, output hardwire switching signals to ESD emergency shutdown system, DCS annunciator panel and local on-site alarm horn, realizing safety interlock and fault alert for rotating equipment

Core Features

4 isolated SPDT single-pole double-throw relay channels, each channel switchable between normally energized / normally de-energized mode
Flexible logic programming: supports multi-channel signal combination voting, linkage with vibration, thrust, overspeed, temperature alarm and module fault status
Epoxy sealed relays with built-in arc suppression circuit, anti-spark and anti-interference for long service life
Front panel LED indicators for module running status, rack communication and each channel alarm trigger state
Hot-swappable rack mounting, no need to power off the whole rack during single module replacement

Technical Specifications

Relay Quantity: 4 channels
Contact Specification: SPDT; 5A@24VDC / 5A@240VAC; mechanical service life ≥100,000 switching cycles
Typical Power Consumption: 5.8W
Operating Temperature: -30℃ ~ +65℃
Storage Temperature: -40℃ ~ +85℃
Overall Dimension: 241 × 24.4 × 99.1mm
Net Weight: ~0.4kg
HS Code: 8538900000
Certifications: CE
Product Status: Discontinued, fully tested surplus modules available

Compatibility

Matched Equipment: All standard 3500/05 series 12-slot & 14-slot monitoring racks
Supporting Software: Official 3500 rack configuration software for logic editing

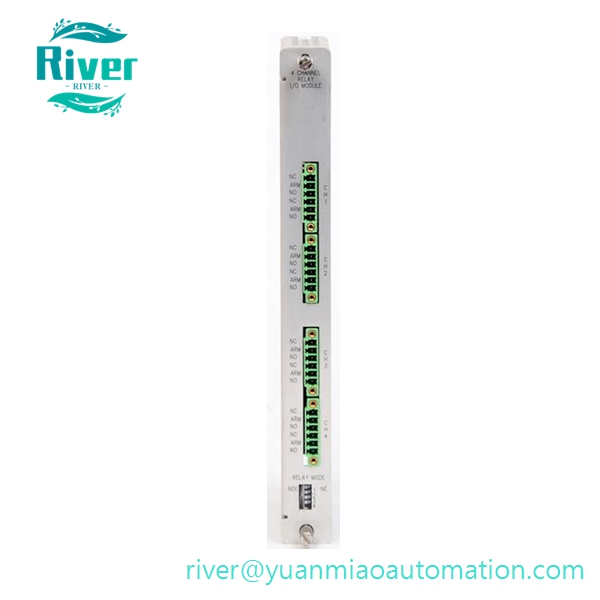

External Termination: Wiring directly via terminal ports on module front panel, no extra rear I/O card required
Upper System: ESD emergency shutdown system, DCS distributed control system, field alarm devices
Not Compatible: Third-party non-3500 series rack chassis

Application

Emergency shutdown interlock and fault alarm output for steam turbine, gas turbine and compressor 3500 protection racks in power and petrochemical industries
Link abnormal vibration, axial displacement, overspeed signals to unit trip protection circuit
On-site audible and light alarm triggering for equipment abnormal conditions
Spare replacement and interlock function expansion of legacy 3500 machinery protection monitoring systems
