146031-01 Bently Nevada TDI I/O Module For 3500/22M In Stock

Short Description:

Ethernet communication I/O accessory matched with 3500/22M transient data interf

Send email to us

Product Detail

Ethernet communication I/O accessory matched with 3500/22M transient data interface card, transmitting rack monitoring data and vibration waveforms to System 1 software, fully tested surplus spare parts for 3500 machinery protection system

Product Overview

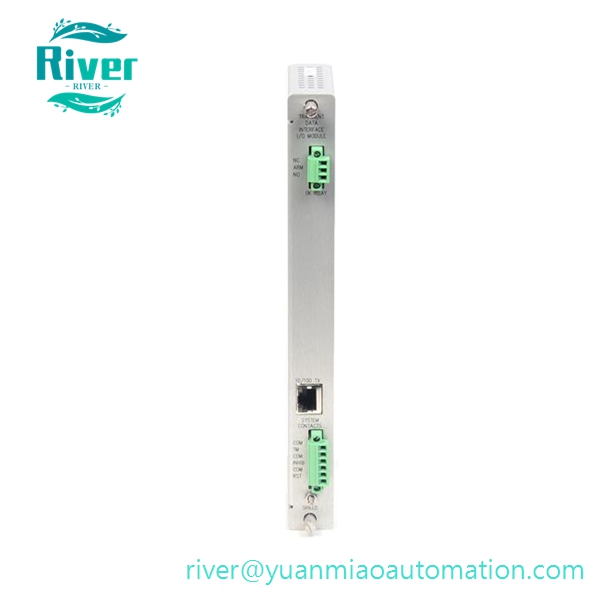

PN: 146031-01
Brand: Bently Nevada (Baker Hughes)
Series: 3500 TSI Machinery Protection System
Type: TDI I/O Communication Module
Function: Exclusive auxiliary I/O board paired with 3500/22M TDI front module. It converts internal rack bus data into standard Ethernet signals, uploading steady-state measurement values, alarm logs and high-speed transient vibration waveforms to System 1 predictive maintenance platform. It replaces separate TDXnet external equipment, centralizes rack configuration and data output, and does not interfere with hardwired trip protection of monitoring channels even during communication faults.

Core Features

Equipped with 10/100Base-TX RJ45 Ethernet port for wired network transmission
Terminal pin terminals for RS232 serial signal transmission
Direct backplane docking with 3500/22M main card without extra wiring
Supports continuous waveform capture during unit startup, coastdown and abnormal trips
Built-in signal isolation to resist industrial field electromagnetic interference
Hot-swappable under dual redundant rack power supply configuration

Technical Specifications

Interface: 10/100Mbps Ethernet + RS232 serial port
Operating Temperature: -40℃ ~ +85℃
Overall Dimension: 254 × 48.3 × 177.8 mm
Net Weight: 0.2 kg
HS Code: 8538900000
Certifications: CE
Product Status: Discontinued original production, brand new original and fully inspected refurbished spare parts available

Compatibility

Mandatory Matched Module: 3500/22M Transient Data Interface front card
Applicable Rack: All 3500/05 12-slot and 14-slot rack chassis
Compatible Software: Official 3500 configuration software, Bently Nevada System 1
Incompatible Devices: 3500/20 RIM rack interface module, third-party non-original rack accessories

Application

Data output terminal for turbine, compressor and generator 3500 protection racks in power and petrochemical industries
Network access gateway between on-site monitoring rack and central control monitoring system
Spare replacement and system upgrade for aging 3500/22M communication assemblies
