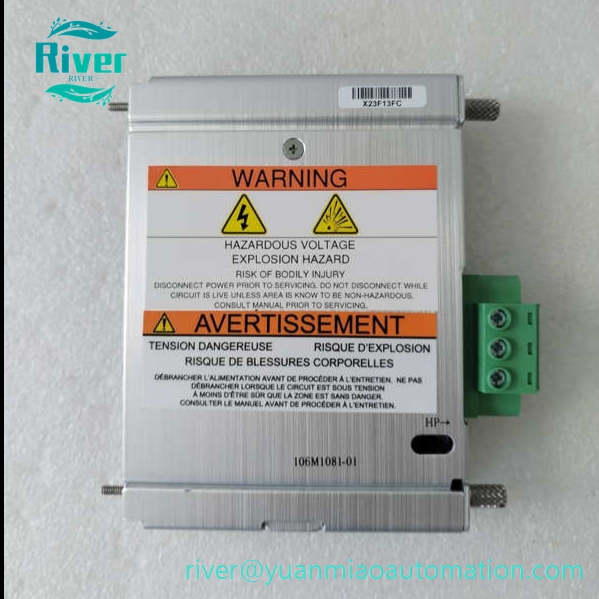

106M1081-01 Bently Nevada Universal AC Power Input Module For 3500/15 In Stock

Short Description:

Universal AC power input module matched with 3500/15 power supply unit, supporti

Send email to us

Product Detail

Universal AC power input module matched with 3500/15 power supply unit, supporting wide-range global AC input, serves as rack power access terminal for 3500 turbomachinery protection system, fully tested original and refurbished spare parts

Product Overview

PN: 106M1081-01
Brand: Bently Nevada (Baker Hughes)
Series: 3500 Machinery Protection System
Type: Universal AC Power Input Module (PIM)
Function: This module acts as the external AC power access port for 3500/15 rack power supply. It receives mains AC power input and transmits stabilized power to the rack backplane, supplying electricity to all monitoring, communication and relay modules inside the 3500 chassis. It supports redundant power configuration to guarantee uninterrupted rack operation, and features built-in overcurrent and overvoltage protection to prevent damage to the whole system from abnormal power grid fluctuation.

Core Features

Wide universal AC input range adapts to global industrial power grids
Half-height modular design for easy hot swap and cabinet layout
Fuse protection circuit cuts off power automatically under overload or surge conditions
Supports dual redundant installation to eliminate single power supply failure risk
Strict electromagnetic interference resistance for stable operation in complex industrial sites
Direct plug-in installation on 3500 rack without extra wiring modification

Technical Specifications

Input Voltage: 85~264 VAC (non-hazardous area), 85~250 VAC (hazardous area)
Input Frequency: 47~63 Hz
Max Input Current: 2.8 A RMS
Operating Temperature: -30℃ ~ +85℃
Dimension: 120.7 × 25.4 × 114.3 mm
Net Weight: 0.34 kg
HS Code: 8538900000
Certifications: CE, cNRTLus
Product Status: Discontinued original production; brand new sealed and fully inspected refurbished units available

Compatibility

Mandatory Matching Device: 3500/15 universal AC power supply front module
Applicable Equipment: All standard 3500/05 12-slot and 14-slot rack chassis
Incompatible Items: Legacy low/high voltage AC PIM modules, DC power input assemblies, third-party non-Bently rack accessories

Application

Power input configuration for turbine, compressor and generator 3500 monitoring racks in power and petrochemical plants
Redundant power transformation and system maintenance upgrade for existing 3500 protection systems
Spare part replacement for aging power input terminals of on-site machinery protection cabinets
