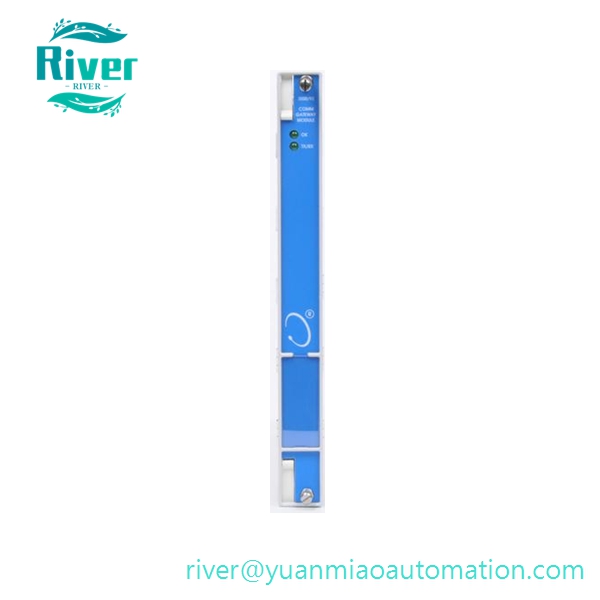

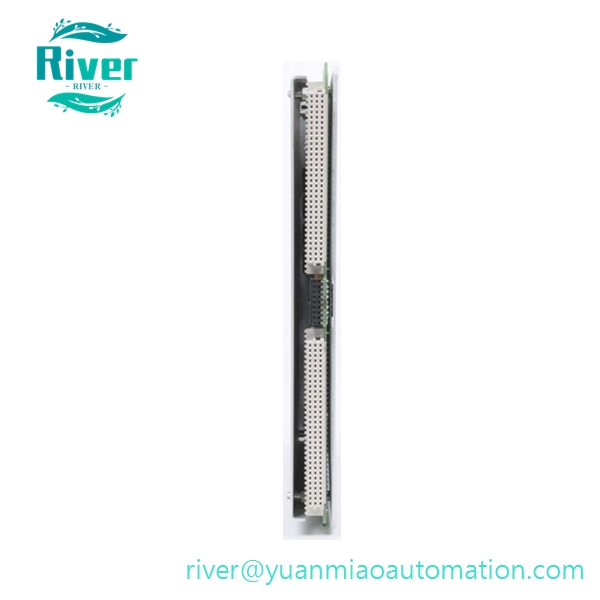

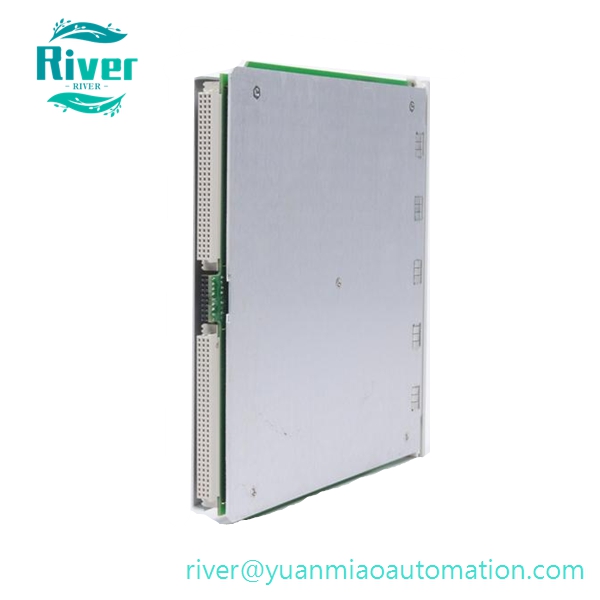

Product Overview

• PN: 3500/92 136180-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection System
• Type: Rack Communication Gateway Module

• Function: This module serves as the external data transmission hub of the entire 3500 rack. It collects real-time measurement data, alarm status and fault information from all monitoring cards through the rack backplane, then transmits data to upper control systems and configuration tools via Ethernet and serial interfaces. It supports customized Modbus register configuration to flexibly map monitoring parameters, and will not affect the hardwired trip protection function of each channel even during communication breakdown.

•


Core Features

• Built-in RJ45 Ethernet port for 10BASE-T network access, supporting Modbus TCP and BN dedicated configuration protocol
• Compatible with RS232/RS422/RS485 serial communication for Modbus RTU data transmission
• Replaces the legacy 3500/90 module with configurable Modbus register editing function
• Isolated circuit design to resist electromagnetic interference in complex industrial environments
• Hot-swappable installation on standard 3500 rack slots

• Allows remote parameter configuration and real-time data acquisition via official 3500 software

•


Technical Specifications

• Typical Power Consumption: 5 W
• Communication Interfaces: 1 Ethernet port, multi-channel serial terminals
• Supported Protocols: Modbus TCP, Modbus RTU, Bently Nevada proprietary protocol
• Operating Temperature: -40℃ ~ +85℃
• Dimension: 241 × 24.4 × 242 mm
• Net Weight: 0.82 kg
• HS Code: 8537101190
• Certifications: CE, UL

• Product Status: OEM discontinued; brand new original and fully inspected refurbished units available

•


Compatibility

• Applicable Chassis: All 3500/05 12-slot and 14-slot rack frames
• Matched Software: Official 3500 rack configuration program, System 1 predictive maintenance platform
• Compatible Upper Devices: DCS, PLC, SCADA and industrial monitoring host

• Incompatible Devices: 3500/22M TDI module used simultaneously in one rack, third-party non-original rack accessories

•


Application

• Data interconnection gateway for steam turbine, gas turbine and compressor 3500 protection racks in power and petrochemical plants
• System networking and remote debugging access for on-site machinery protection cabinets
• Spare replacement and communication system upgrade for aging 3500 series monitoring racks
