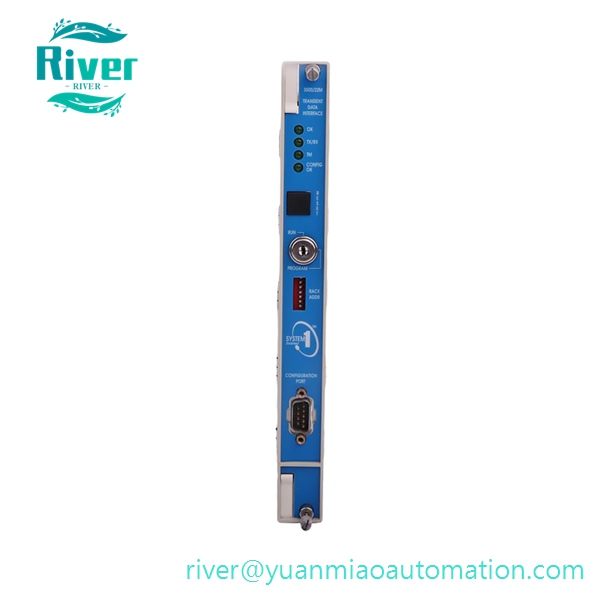

Product Overview

• PN: 3500/22-01-01-00
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection System
• Type: Standard Transient Data Interface (TDI) Front Module

• Function: Must be installed in Slot 1 next to rack power supply modules, combining the functions of traditional 3500/20 RIM rack interface and external TDXnet data collector in one single card. It communicates with all M-series monitoring modules via rack backplane, downloads system configuration parameters, collects real-time measurement values, alarm logs and fault codes, captures high-speed transient vibration waveforms during unit startup, trip and abnormal conditions, and transmits all data to System 1 diagnostic platform through Ethernet port. The module only undertakes data communication tasks and will not affect the hardwired trip protection of each monitoring channel even if communication fails.

•


Model Suffix Definition

• 3500/22: TDI transient data interface main model
• First 01: Standard edition for conventional monitoring scenarios
• Second 01: Matched with 10/100Base-TX Ethernet I/O back card (146031-01)

• Last 00: No additional third-party certification

•


Core Features

• Integrates rack system management and high-speed waveform recording, no extra slot occupation for separate communication devices
• RJ45 Ethernet interface supports BN proprietary protocol and Modbus TCP data transmission
• Front panel key lock prevents unauthorized modification of rack configuration parameters
• LED indicators clearly display power status, bus communication and data recording status
• Supports hot swapping under dual redundant power supply configuration
• Onboard storage saves historical alarm records and transient event waveforms for offline equipment fault analysis

• Full compatibility with all 3500/05 rack chassis and M-series monitor modules

•


Technical Specifications

• Power Consumption: 8.2 W
• Ethernet Standard: IEEE 802.3 10/100Mbps
• Operating Temperature: -40℃ ~ +85℃
• Overall Dimension: 241 × 24.4 × 242 mm
• Net Weight: 0.82 kg
• HS Code: 8538900000
• Certifications: CE

• Product Status: OEM discontinued production; brand new original sealed and fully inspected refurbished spare parts available

•


Compatibility

• Mandatory Matching Accessory: 146031-01 Ethernet I/O rear card
• Applicable Rack: All 3500/05 12-slot and 14-slot rack frames
• Compatible Software: Official 3500 configuration software, Bently Nevada System 1 predictive maintenance platform

• Incompatible Configuration: Cannot work with 3500/20 RIM modules in one rack simultaneously

•


Application

• Centralized parameter configuration and commissioning for steam turbine, gas turbine and compressor 3500 protection racks in power and petrochemical industries
• Real-time data uploading and vibration waveform collection for rotating machinery predictive maintenance and fault diagnosis
• Network access gateway between on-site monitoring cabinet and factory central control monitoring network
• System upgrade replacement and aging equipment spare part replacement for legacy 3500 monitoring racks
