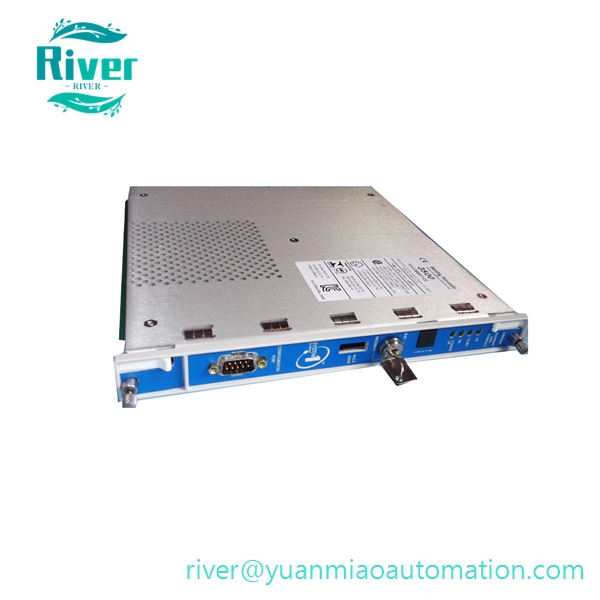

Product Overview

• PN: 3500/22M
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Turbomachinery Protection TSI System
• Type: Transient Data Interface (TDI) Main Module

• Function: Must be installed in Slot 1 next to rack power supply, merges traditional 3500/20 RIM rack interface and TDXnet data acquisition into one unit. It communicates with all M-series monitor boards through backplane bus, downloads system configuration parameters, gathers real-time measurement values, alarm logs and fault codes, captures high-speed transient vibration waveforms during unit startup, trip and abnormal conditions, and uploads all data to System 1 diagnostic platform via Ethernet. It only undertakes data communication tasks and will not interfere with hardwired safety trip of each channel even with communication failure

•


Core Features

• Occupies only one rack slot without extra space for independent communication equipment
• 10/100Mbps RJ45 Ethernet port supports Bently dedicated protocol and Modbus TCP transmission
• Front panel key lock prevents unauthorized modification of rack configuration
• LED indicators clearly display power status, bus communication and data recording state
• Supports hot swapping under dual redundant power supply configuration
• Onboard storage saves historical alarm records and transient event waveforms for offline fault analysis
• Fully compatible with all 3500/05 rack chassis and M-series monitoring modules

• Optional enabling disk unlocks high-resolution dynamic waveform sampling function

•


Technical Specifications

• Typical Power Consumption: 8.2 W
• Ethernet Standard: IEEE 802.3 10/100Base-TX
• Operating Temperature: -40℃ ~ +85℃
• Overall Dimension: 241 × 24.4 × 242 mm
• Net Weight: Around 0.82 kg
• HS Code: 8538900000
• Certifications: CE, UL

• Product Status: OEM discontinued; brand new original sealed and fully inspected refurbished modules available

•


Compatibility

• Matched Rear I/O Card: Corresponding dedicated Ethernet rear terminal board
• Applicable Chassis: All 3500/05 12-slot and 14-slot rack frames
• Compatible Software: Official 3500 configuration tool, Bently Nevada System 1 predictive maintenance platform

• Incompatible Setting: Cannot be used together with 3500/92 communication gateway in a single rack

•


Application

• Centralized parameter commissioning and configuration management for steam turbine, gas turbine and compressor 3500 protection racks in power and petrochemical industries
• Real-time data uploading and vibration waveform capture for rotating equipment predictive maintenance and fault troubleshooting
• Network access bridge between on-site monitoring cabinet and factory central control monitoring network
• System upgrade and aging equipment spare replacement for legacy 3500 series monitoring racks
