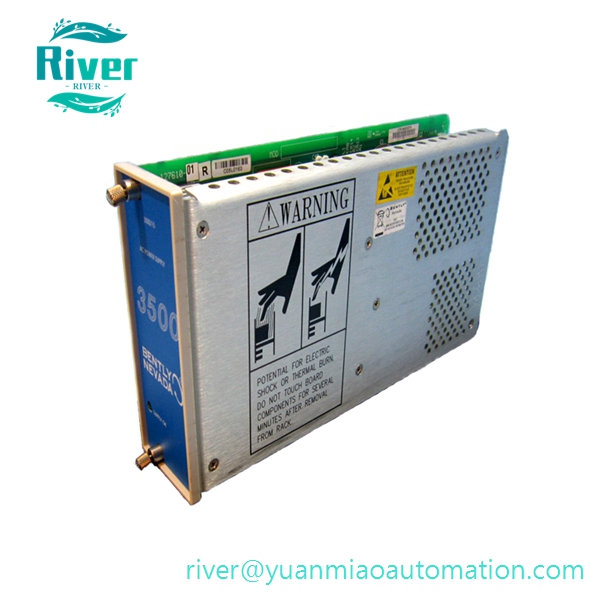

Product Overview

• PN: 3500/15 127610-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Turbomachinery Protection TSI System
• Type: General AC Input Main Power Supply Front Module

• Function: Core power conversion component exclusively installed on the dedicated left power slot of 3500/05 rack chassis. It accepts wide-range alternating current input, converts and distributes multi-channel stabilized voltage to the rack backplane, and powers all inserted monitoring, communication, display and rear I/O modules. Two units can be mounted for redundant backup; the standby power will automatically take over power supply once the main unit fails, avoiding system outage and protection interlock failure

•


Core Features

• Half-height modular structure, fixed with front panel screws, fits standard rack power bay
• Built-in overvoltage, overcurrent, short-circuit and overheating multi-level protection circuit
• Front panel Supply OK indicator light intuitively displays normal operation and fault alarm status
• Hot swappable under dual redundant power configuration, no need to power off the whole rack during replacement
• Input and output electrical isolation design, effectively resist industrial surge voltage and electromagnetic interference
• High conversion efficiency, stable long-term continuous operation for critical rotating equipment safety protection system

• Officially discontinued original model, direct replacement part is 106M1079-01 universal AC power supply module

•


Technical Specifications

• Input Voltage: 85~264 VAC, 47~63Hz
• Rated Output Power: 120W
• Operating Temperature: -40℃ ~ +85℃
• Storage Temperature: -40℃ ~ +85℃
• Overall Dimension: 120.7 × 50.8 × 251.5 mm
• Net Weight: 0.98kg
• HS Code: 8538900000
• Certifications: CE, UL

• Product Status: OEM discontinued production; brand new factory sealed and fully inspected refurbished modules in stock

•


Compatibility

• Applicable Equipment: All 3500/05 12-slot and 14-slot standard rack frames
• Matching Accessory: Corresponding AC power input rear terminal module
• Compatible Load: All 3500 series front monitoring cards, communication modules, display units and rear I/O boards

• Incompatible Usage: Cannot be mixed and used with low voltage DC or high voltage DC 3500/15 power modules without configuration matching

•


Application

• Power distribution configuration for steam turbine, gas turbine and centrifugal compressor 3500 monitoring cabinets in thermal power, petrochemical and offshore platforms
• Redundant power backup setup and on-site cabinet maintenance upgrade for existing protection racks
• Spare part replacement and equipment renovation for legacy 3500 series TSI monitoring systems
