Product Overview

• Part No: GDD471A001, alternative code 2UBA002322R0001
• Brand: ABB

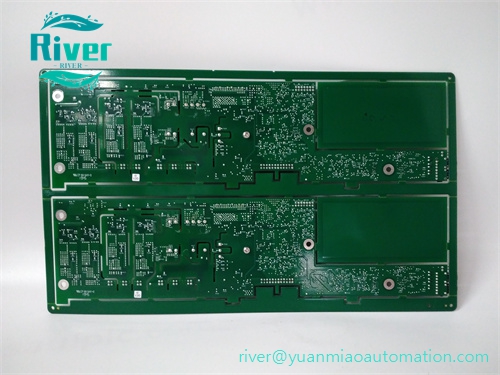

• Category: Gate Drive Control BoardGDD471A001 is a dedicated gate drive board used in ABB medium voltage power electronic systems. It receives optical fiber trigger signals from main control units and generates isolated drive pulses for high-power semiconductor devices. The module continuously monitors device working status, detects fault signals such as short circuit and abnormal voltage, and feeds alarm information back to the master control board. It serves as the critical signal bridge between low-voltage control circuits and high-power power units to guarantee safe switching of power semiconductors.

•


Core Features

• Fiber-optic signal isolation, effectively isolating high voltage and low voltage circuits to resist strong electromagnetic interference
• Integrated real-time fault detection circuit, fast response for short-circuit and abnormal working conditions
• Accurate gate signal output to ensure consistent switching performance of power devices
• Compact PCB layout, optimized thermal design for long-time continuous operation
• Standard plug-in structure, convenient disassembly and direct replacement during on-site maintenance

• Strict industrial aging testing, stable performance under variable industrial load conditions

•


Technical Specifications

• Power Supply: 24VDC
• Signal Interface: Fiber optic communication
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C

• Protection Class: IP20, suitable for installation inside power cabinet

•


Compatibility & Application

• Matched with ABB medium voltage converters, static var compensators and high-power rectifier stacks
• Widely used in power plant excitation systems, metallurgical power supply, medium voltage transmission and power quality control projects
