Product Overview

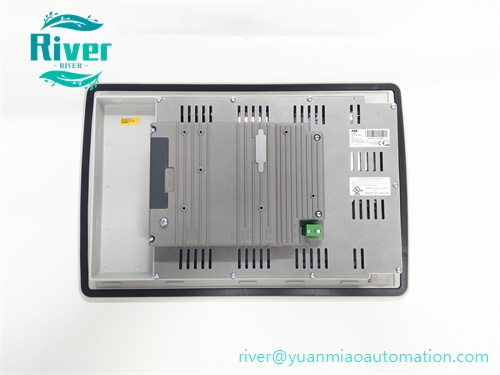

• Part No: PP846A, Order code: 3BSE042238R2
• Brand: ABB

• Category: Operator Panel / HMI Human Machine InterfacePP846A belongs to ABB Panel 800 series operator panels. It integrates 10.4-inch color display, resistive touch screen and physical function keys. As a standard HMI terminal for ABB 800xA and Freelance distributed control systems, it realizes real-time process data monitoring, parameter setting, equipment operation control, alarm viewing and trend curve display. It serves as the interactive gateway between field operators and the automation control system.

•


Core Features

• Combined operation design: touch screen plus integrated physical shortcut keys, suitable for continuous industrial operation scenarios
• High brightness industrial LCD screen, stable display performance under different lighting conditions in control rooms
• Equipped with Ethernet, serial communication interfaces, seamless connection with ABB DCS controllers
• Supports multi-language display, rich alarm management and historical trend recording function
• Front panel IP65 protection grade, suitable for cabinet door embedded installation
• Configured via Panel Builder software, convenient screen program uploading, downloading and debugging

• Rugged industrial hardware structure, strong anti-vibration and anti-electromagnetic interference capability

•


Technical Specifications

• Screen Size: 10.4 inch TFT color display
• Operation Mode: Touch screen + hard keys
• Power Supply: 24VDC
• Communication: Ethernet, RS232/RS485
• Operating Temperature: 0°C ~ +50°C
• Front Protection Class: IP65

• Installation: Embedded cabinet mounting

•


Compatibility & Application

• Compatible with ABB 800xA and Freelance DCS control systems
• Widely used in power plant, chemical industry, pulp & paper, metallurgy, water treatment process automation
• Used for on-site central operation, process monitoring, safety interlock control and equipment maintenance management
