Product Overview

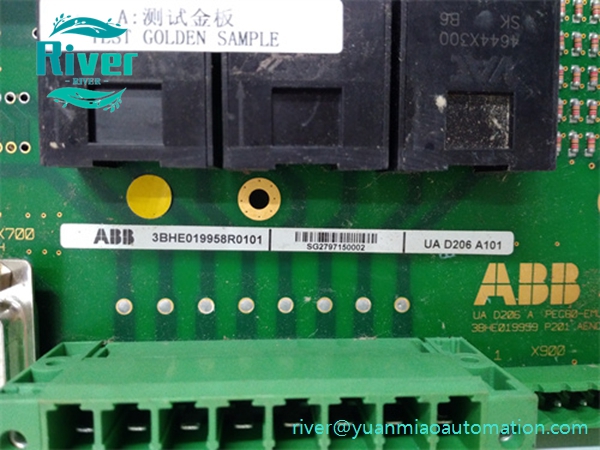

• Part No: UAD206A101, alternative code 3BHE024578R0101
• Brand: ABB

• Category: Signal Processing BoardUAD206A101 is a high-performance signal processing board based on ABB AC800PEC control platform. It is responsible for collecting, conditioning and transmitting analog and digital feedback signals within power electronic systems. The module processes current, voltage measurement signals and interlock status signals, transmits valid data to the main controller, and distributes synchronous control commands to drive boards. It ensures high-precision signal transmission for closed-loop control, acting as an essential signal intermediate unit for generator excitation and medium voltage power conversion devices.

•


Core Features

• High-speed signal sampling and conditioning, guarantee measurement accuracy for power closed-loop regulation
• Built-in multi-channel electrical isolation design, suppress electromagnetic interference inside power cabinets
• Onboard LED status indicators for convenient on-site inspection and rapid fault troubleshooting
• Multiple high-speed communication interfaces for stable data exchange with other control modules
• Optimized PCB layout with good heat dissipation, adaptable to long-term continuous operation
• Standard plug-in rack structure, easy disassembly and direct replacement during equipment maintenance

• Passed strict industrial EMC and aging tests, reliable under fluctuating load conditions

•


Technical Specifications

• Supply Voltage: 24VDC
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Installation: Standard subrack slot mounting inside control cabinet

• Protection Class: IP20

•


Compatibility & Application

• Compatible with ABB AC800PEC controller and UNITROL series generator excitation systems
• Widely applied in power plant excitation control, metallurgical rectifier power supply, static var compensator and medium voltage drive projects
