Product Overview

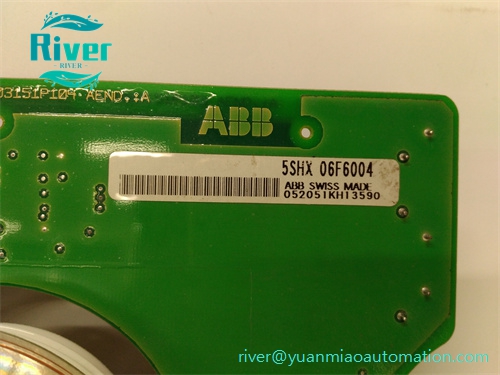

• Part No: 5SHX06F6004
• Brand: ABB

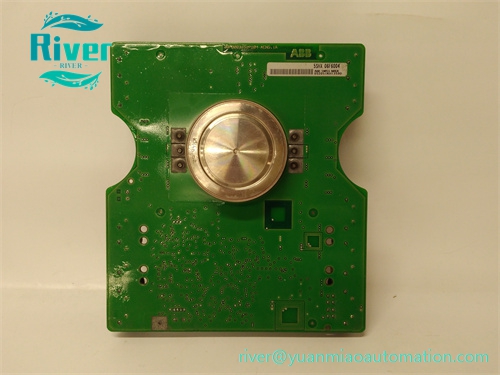

• Category: IGCT Power Semiconductor Module5SHX06F6004 is ABB high-performance Integrated Gate-Commutated Thyristor (IGCT). It serves as the primary high-power switching device in medium voltage power electronic systems. Matched with dedicated gate drive boards, the module executes rectification, inversion and reactive power regulation. Featuring fast switching speed, low on-state loss and strong short-circuit withstand capability, it is widely adopted in megawatt-class power conversion equipment and acts as an essential spare part for equipment overhaul and repair.

•


Core Features

• High voltage and high current rating, designed for medium voltage high-power conversion scenarios
• Excellent dynamic switching performance, low conduction loss to improve system operating efficiency
• Compact flat-pack mechanical structure, convenient assembly on standardized cooling heat sinks
• Stable operation under frequent switching and continuously varying load conditions
• Undergoes strict thermal cycling and power cycle reliability testing

• Standard interface compatible with ABB series IGCT gate drive units

•


Technical Specifications

• Device Type: IGCT
• Junction Operating Temperature: -40°C ~ +125°C
• Storage Temperature: -40°C ~ +125°C
• Installation: Mounted on air-cooled or liquid-cooled heat sink

• Working Environment: Installed inside sealed medium voltage power cabinet

•


Compatibility & Application

• Matched with ABB medium voltage variable frequency drives, static var compensators and high-power rectifier stacks
• Widely used in power plant auxiliary drives, metallurgical medium voltage transmission, mining converters and grid power quality control projects
