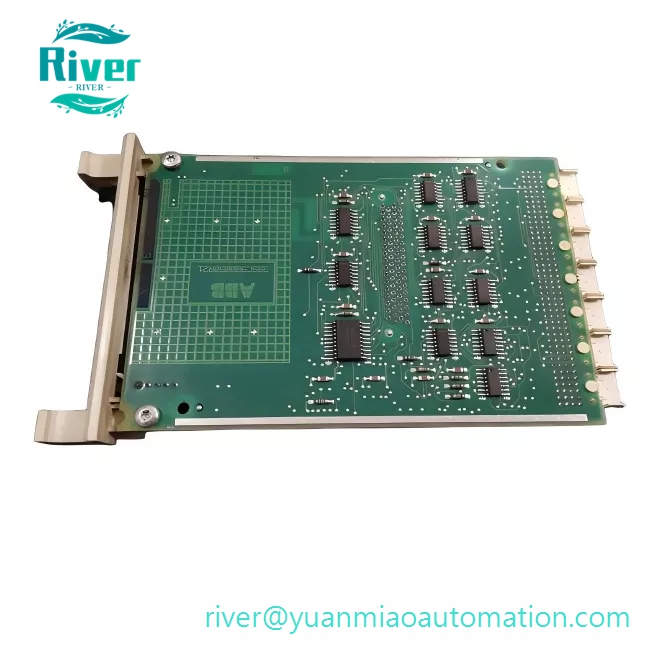

Product Overview

• Part No: MB510, Order Code: 3BSE002540R1
• Brand: ABB

• Category: Program Card Interface ModuleMB510 is a dedicated PCMCIA memory card interface module for ABB Advant legacy control platforms including AC400 and MasterPiece series controllers. The module provides a card slot for program memory cards, supporting uploading, downloading and backup of control application programs, configuration parameters and firmware data. It enables offline program storage and convenient logic transfer without continuous engineering workstation connection, serving as an essential component for system commissioning, program upgrade and routine maintenance of older-generation Advant DCS control systems.

•


Core Features

• Standard PCMCIA card slot, compatible with ABB dedicated program memory cards
• Realizes program loading, data backup and parameter storage for Advant controllers
• Onboard LED status indicators for power supply, card detection and operation fault diagnosis
• Euro-card standard plug-in structure, easy installation and replacement in controller rack
• Internal bus powered design, stable data read-write performance
• Optimized industrial PCB layout, strong anti-interference capability in control cabinet environment

• Passed strict EMC and aging reliability testing, long-term stable continuous operation

•


Technical Specifications

• Part Code: 3BSE002540R1
• Interface Type: PCMCIA Program Card Slot
• Power Supply: Powered via backplane internal bus
• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Installation: Standard subrack slot mounting inside control cabinet

• Protection Class: IP20

•


Compatibility & Application

• Compatible with ABB Advant AC400, MasterPiece 200 series controllers
• Widely used in power plant, pulp & paper, chemical, metallurgy and water treatment legacy DCS system renovation and maintenance
• Applied for project commissioning, control logic backup, firmware upgrade and equipment overhaul
