Product Overview

• Part No: 216EA61b, Alternative Code: HESG448230R1/G
• Brand: ABB

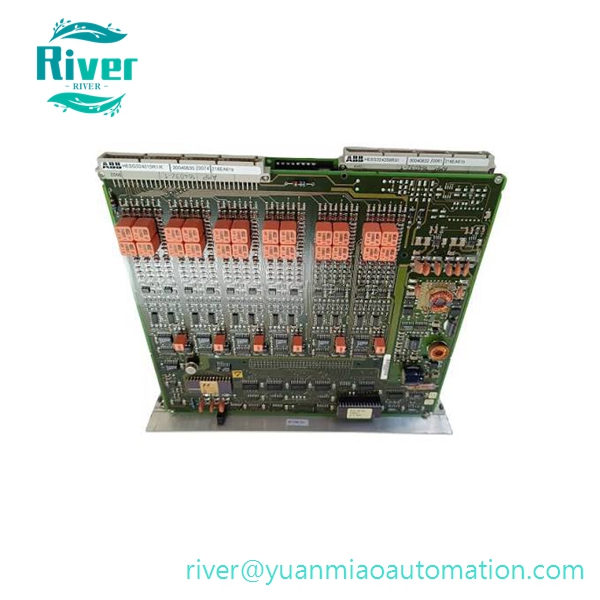

• Category: Analog Input Module216EA61b is a high-performance analog signal acquisition module developed for ABB REG216 protection platform and substation automation systems. It collects voltage, current signals from transformers and transmitters, converts analog signals into digital data and transmits to main processing unit via internal bus. Adopting high-precision ADC sampling and channel galvanic isolation design, it ensures stable signal acquisition under strong electromagnetic interference environment. The module serves as an essential front-end signal collection component for generator and transformer protection, widely used as replacement spare part for power plant and substation equipment maintenance.

•


Core Features

• Multi-channel analog signal input, supports common industrial analog signal ranges
• Built-in electrical isolation between channels, effectively suppress substation EMI interference
• High-precision signal sampling circuit, guarantee measurement accuracy for protection logic
• Front panel LED status indicators for power, communication and channel fault diagnosis
• Standard Euro-card plug-in structure, easy installation and direct rack replacement
• Software configurable signal filtering parameters, adapt different on-site working conditions

• Passed strict EMC and thermal aging testing, long-term stable operation in power cabinet

•


Technical Specifications

• Supply Voltage: 24VDC
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Installation: Standard rack slot mounting inside REG216 protection cabinet

• Protection Class: IP20

•


Compatibility & Application

• Compatible with ABB REG216 generator-transformer protection system, matched with 216VC62a processing board
• Widely applied in thermal power, hydropower plants, high-voltage substations protection system overhaul and renovation projects
• Used for real-time acquisition of generator voltage, current and auxiliary measuring signals
