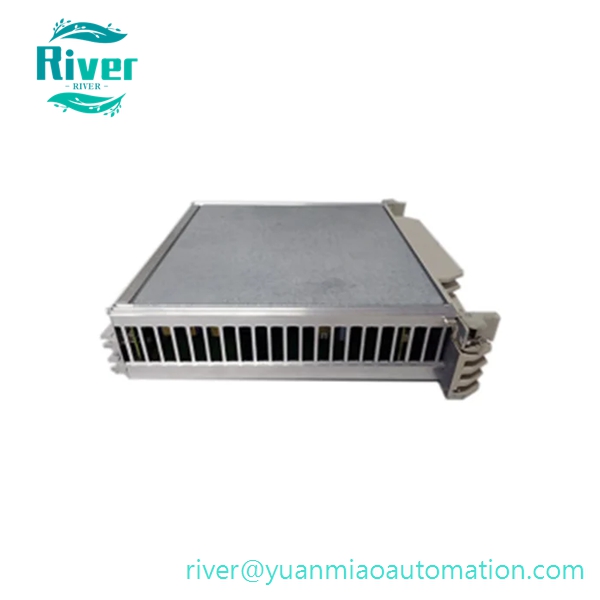

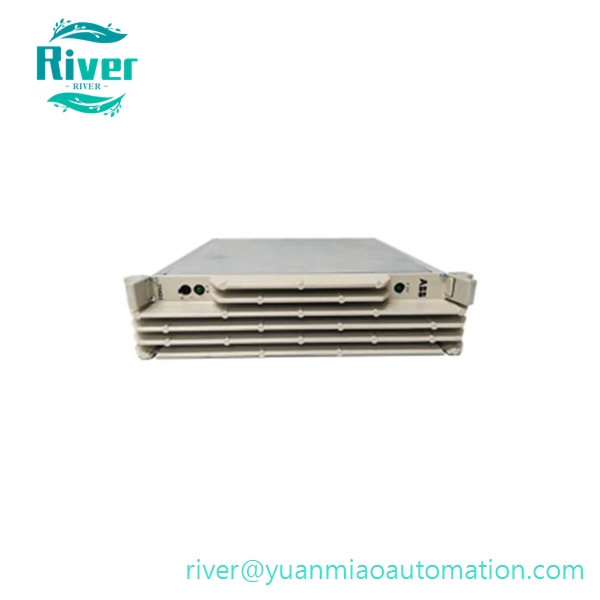

Product Overview

• Part No: 216NG63A, Alternative Code: HESG441635R1
• Brand: ABB

• Category: Rack Power Supply Module216NG63A is a dedicated rack-mounted power supply module designed for ABB REG216 generator-transformer protection platform. It receives external auxiliary power input and converts it into stable multi-channel DC power for the main processing board, analog acquisition board, communication board and other plug-in units inside the protection cabinet. The module integrates overvoltage, overcurrent and overheat protection circuits to prevent secondary damage caused by power abnormalities. It features built-in voltage monitoring and fault alarm functions, ensuring continuous and reliable power supply for the whole protection system, and is an essential spare component for power plant protection cabinet maintenance.

•


Core Features

• Multi-channel stabilized DC output, matching power demand of each functional board inside REG216 rack
• Comprehensive built-in protection: overvoltage, overcurrent, short-circuit and overtemperature protection
• Real-time power operating status monitoring, fault signal feedback to main control unit
• Front panel LED indicators for power normal status and fault visual diagnosis
• Standard Eurocard plug-in structure, convenient installation and direct rack replacement during overhaul
• Optimized thermal structure design, good heat dissipation suitable for long-term continuous operation

• Strict EMC and thermal aging testing, strong anti-interference capability in substation electromagnetic environment

•


Technical Specifications

• Input Auxiliary Power: 24VDC
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Installation: Standard subrack slot mounting inside REG216 protection cabinet

• Protection Class: IP20

•


Compatibility & Application

• Compatible with ABB REG216 series generator-transformer protection systems, matched with 216EA61b,216VC62a boards
• Widely used in thermal power, hydropower plants and industrial self-power station relay protection equipment maintenance projects
• Responsible for centralized power supply of all internal plug-in modules of the protection rack
