Original Woodward BUM60 series vector control servo drive, spare part for industrial electric actuator control system.

Product Overview

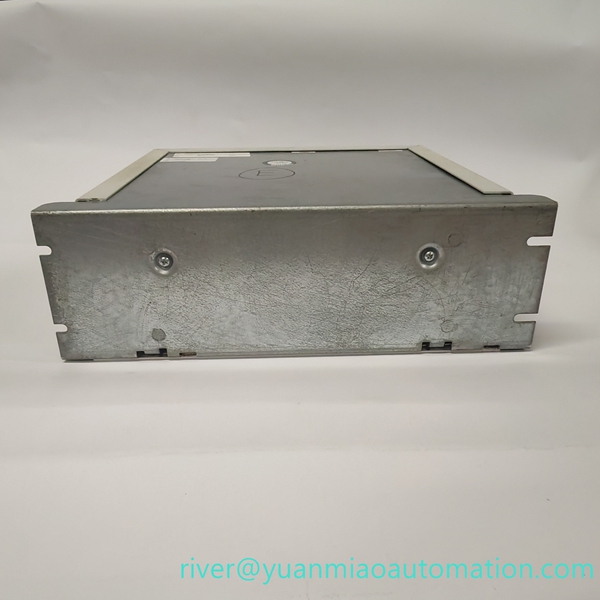

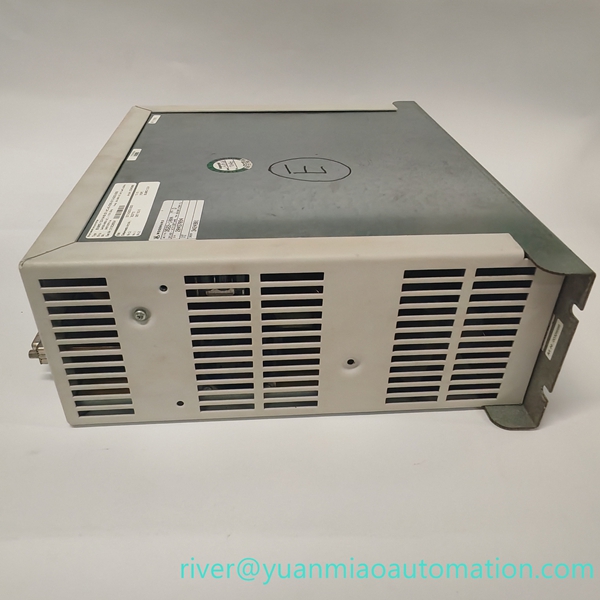

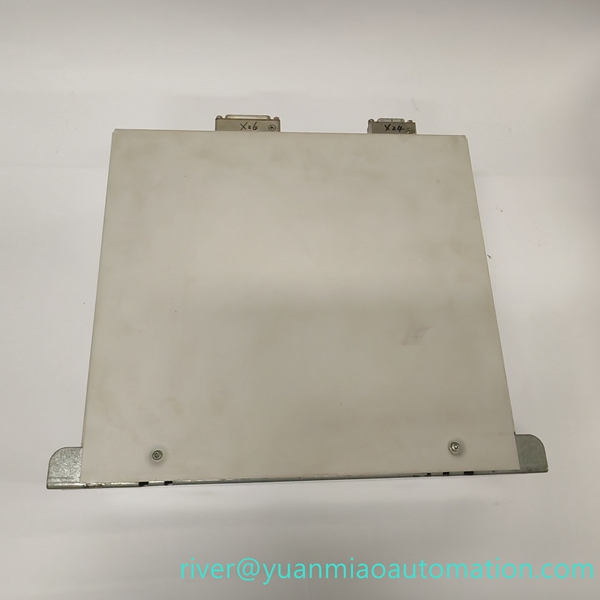

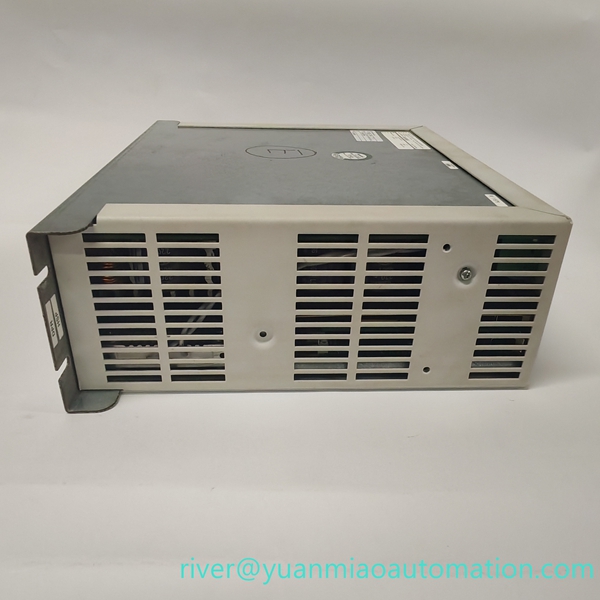

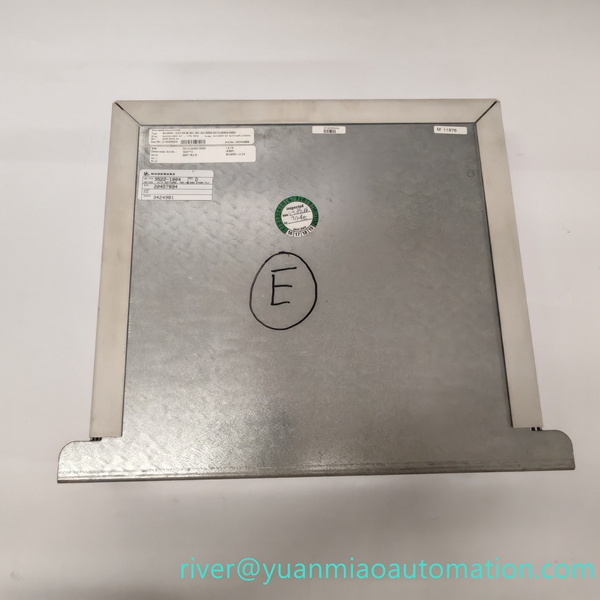

BUM60‑1224‑54‑B‑001‑VC‑A0‑0093‑0013‑G003‑0000 with part number 3522‑1004 is Woodward high‑performance vector control servo drive unit. It delivers precise closed‑loop control for brushless AC motors of electric actuators, widely used as maintenance spare part for gas turbine valve actuation and power plant control cabinets.

Key Features

• Vector control mode for high‑precision motor position and speed regulation
• 12A continuous output current, 24A peak current capability
• Multiple feedback signal support including resolver and encoder
• Built‑in over‑voltage, over‑current and over‑temperature protection
• Supports CANopen and RS‑485 communication interfaces

• Internal forced‑air cooling design for continuous heavy‑duty operation

•


Technical Specifications

• Brand: Woodward
• Model: BUM60‑1224‑54‑B‑001‑VC‑A0‑0093‑0013‑G003‑0000
• Part No: 3522‑1004
• Country of Origin: Germany
• Input Power: 3‑Phase 400‑480VAC
• Continuous Output Current: 12A
• Peak Output Current: 24A
• Communication: CANopen, RS‑485
• Operating Temp: 0℃ ~ +55℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Protection: IP20 rear side, cabinet mounting

•


Compatibility

Matches Woodward electric actuator system. Corresponding parameter configuration is required after replacement.
