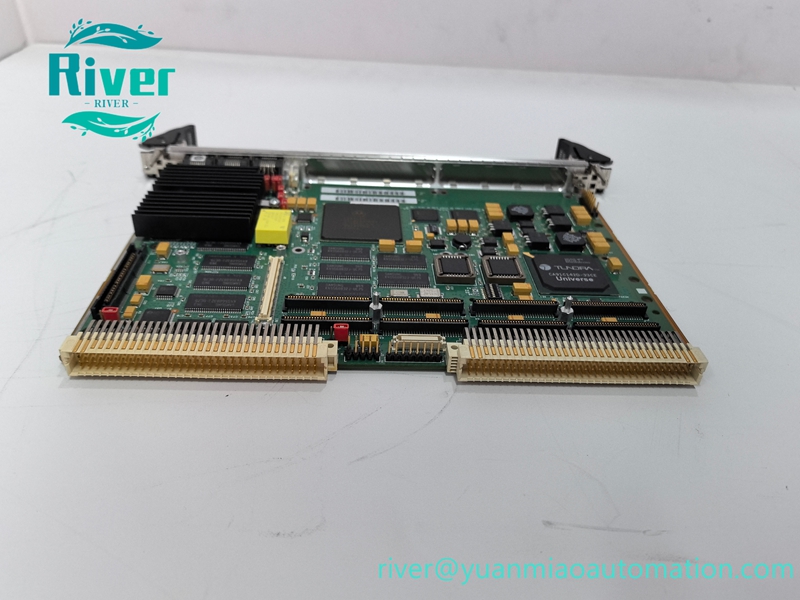

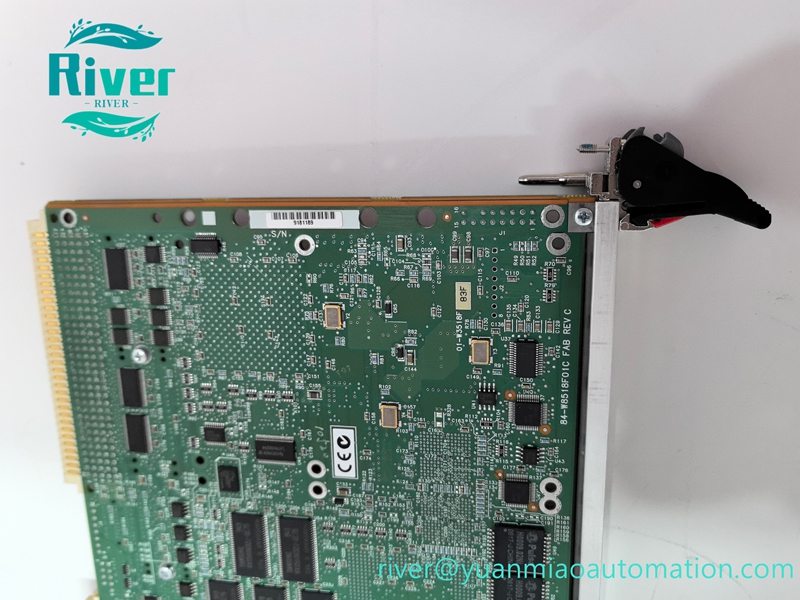

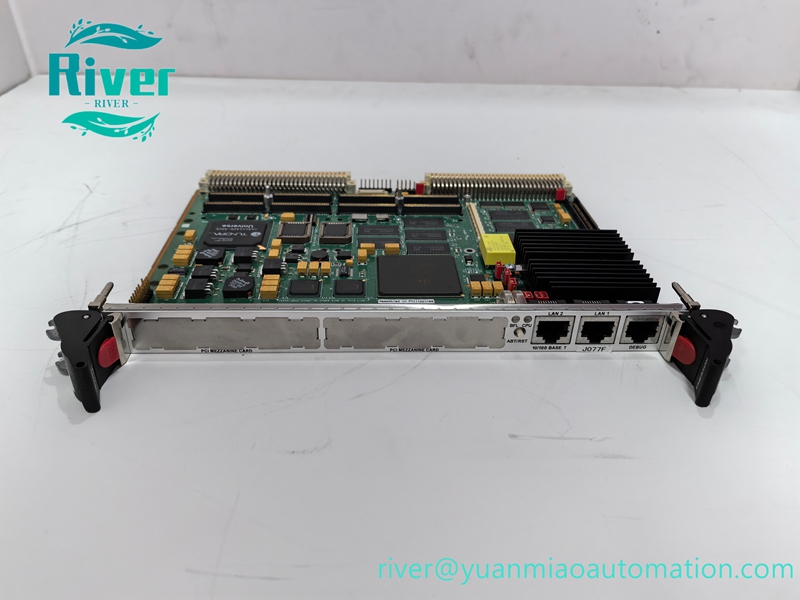

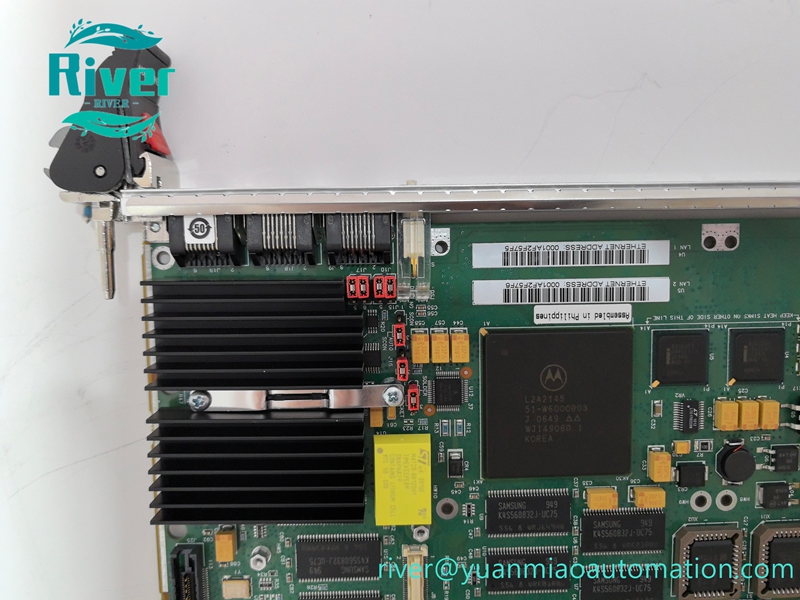

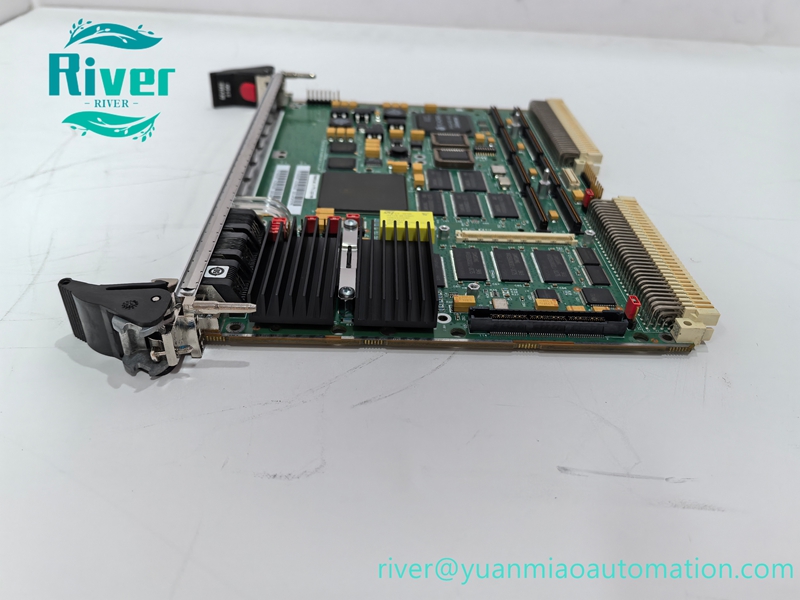

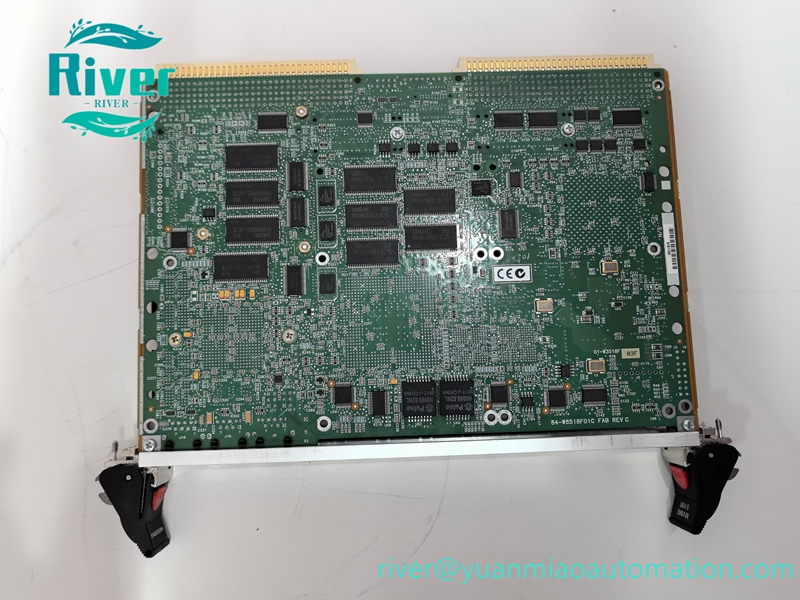

Original Motorola MVME5100 VME bus single‑board computer, PowerPC CPU industrial control processor module for automation and semiconductor equipment.

Product Overview

Motorola MVME5100 is a high‑performance 6U VME single‑board computer based on PowerPlus II architecture, equipped with PowerPC series processor. It serves as main computing unit for VME‑bus industrial systems, delivers high‑speed data processing and multi‑interface communication capability, widely applied in industrial automation, semiconductor manufacturing, aerospace and test equipment for system upgrade and maintenance replacement.

Key Features

• Powered by PowerPC MPC7400 / MPC7410 / MPC750 series processor
• On‑board ECC SDRAM memory, expandable via memory mezzanine module
• Up to 17MB on‑board flash memory for system firmware storage
• Dual 10/100Mbps fast Ethernet ports, dual asynchronous serial ports
• Two 32/64‑bit PMC expansion slots for function expansion
• NVRAM with battery‑backed real‑time clock and watchdog timer

• Standard 6U VME form factor, fits VME system rack slot

•


Technical Specifications

• Brand: Motorola (Artesyn)
• Model: MVME5100
• Form Factor: 6U VME
• CPU: PowerPC MPC7400 / MPC7410 / MPC750
• Front‑side Bus: 100MHz
• Memory: On‑board ECC SDRAM, expandable
• Storage: Max 17MB Flash
• Interfaces: Dual Fast Ethernet, Dual Serial Port, Two PMC Slots
• Operating Temperature: 0℃‑55℃

• Application: VME‑bus industrial control, test & measurement system

•


Compatibility

Works with standard 6U VME chassis and backplane, compatible with VME bus peripheral modules, used for industrial equipment overhaul, spare‑parts replacement and system refurbishment.
