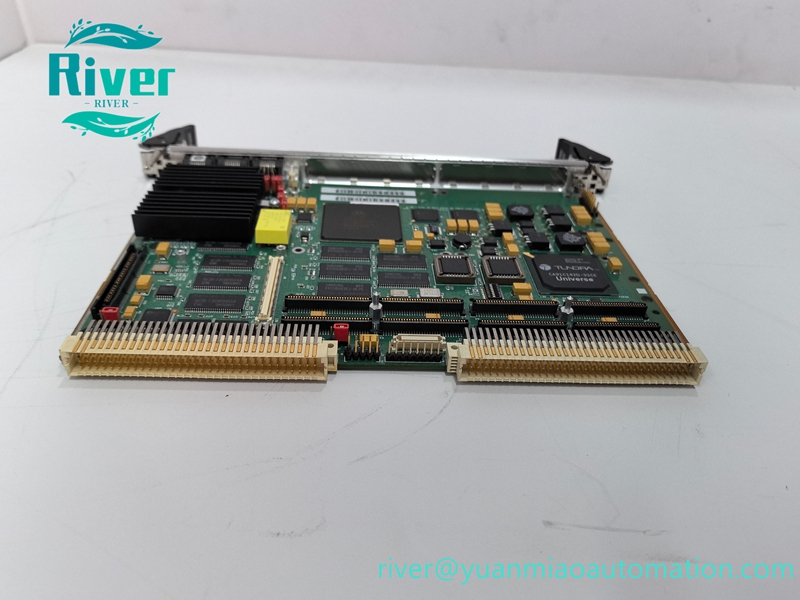

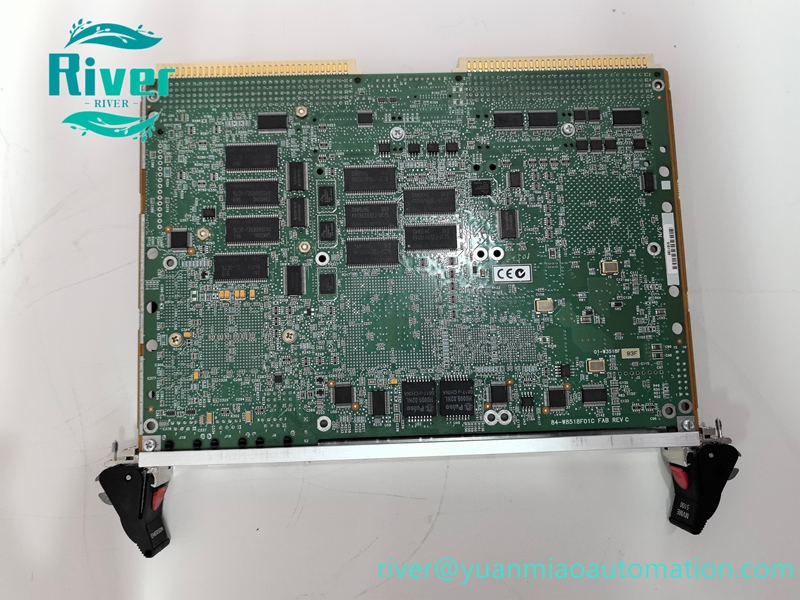

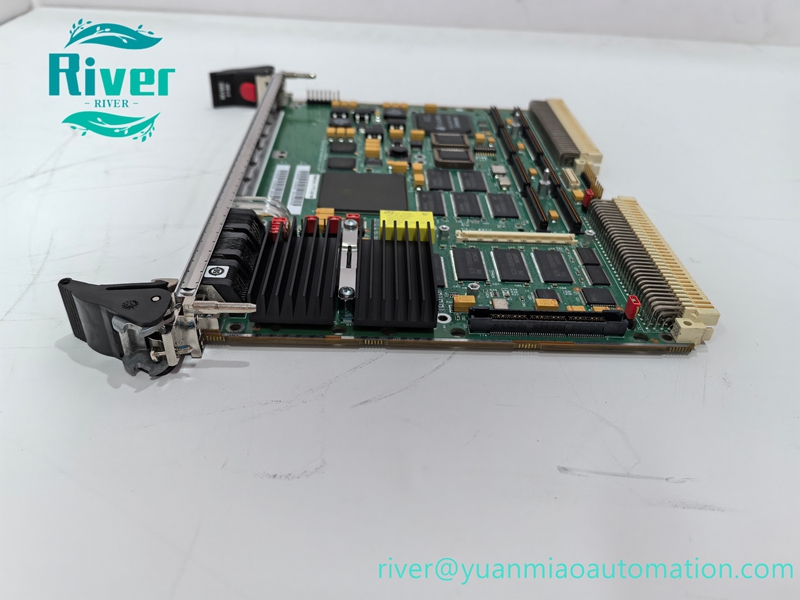

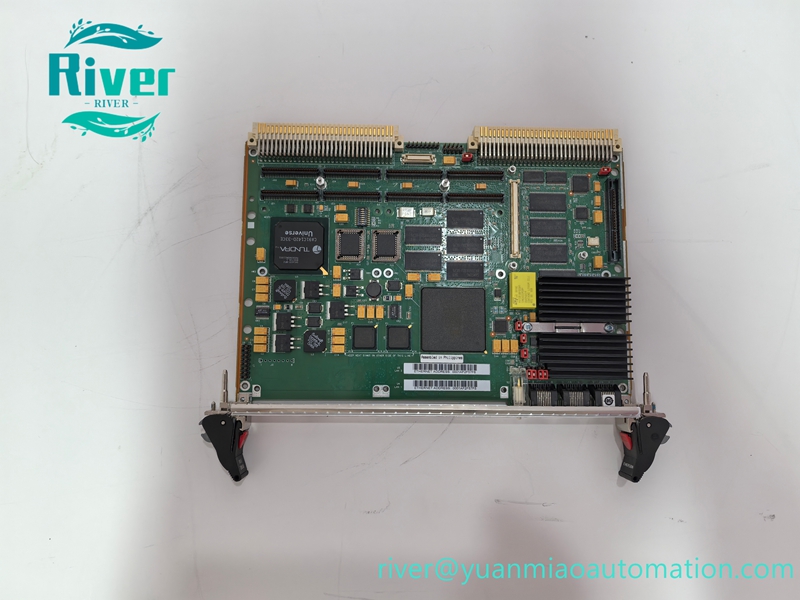

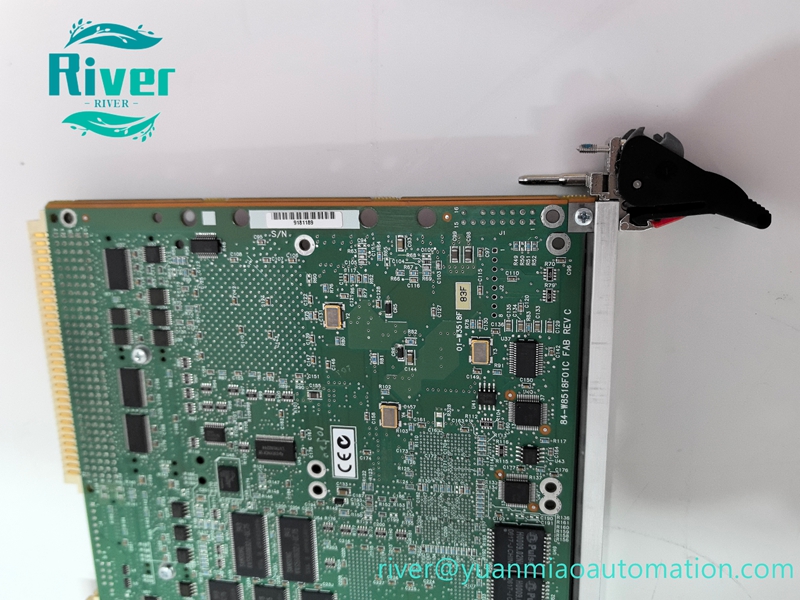

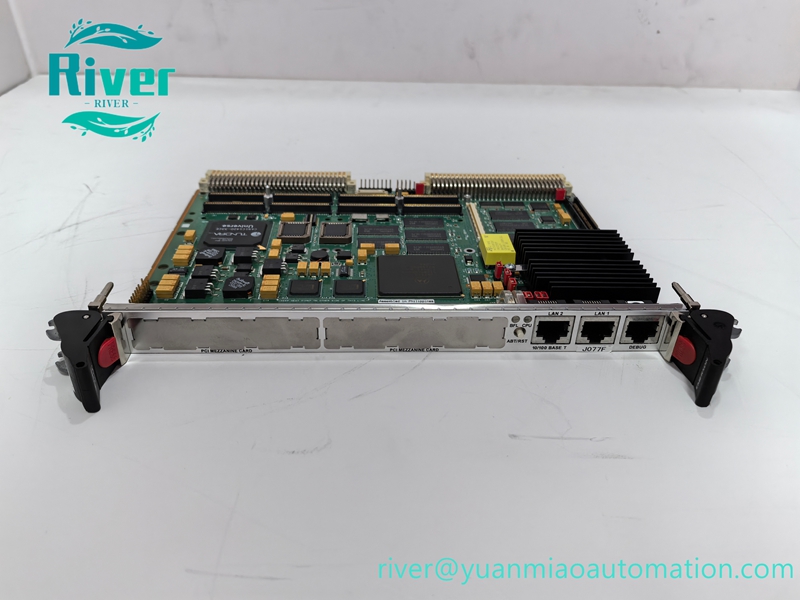

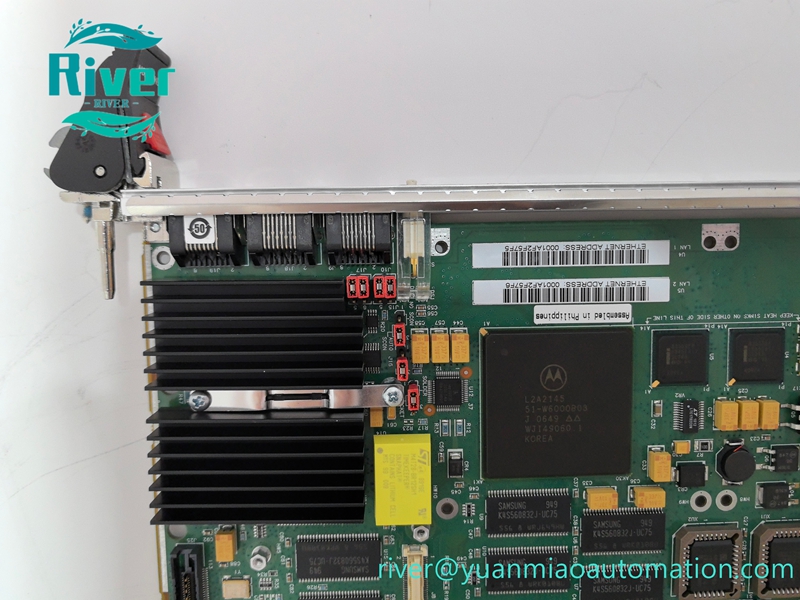

This Motorola MVME5100 is a 6U VME single board computer based on PowerPlus II architecture, built with PowerPC processor for industrial real-time control applications.

Product Overview

The Motorola MVME5100 is a high-performance 6U VMEbus single board computer adopting PowerPlus II architecture. Equipped with PowerPC MPC7410 / MPC750 processor, it serves as the core controller in VME rack systems, supporting VxWorks and Linux real-time operating systems. It provides powerful computing capability and flexible PMC expansion for industrial automation, aerospace and defense equipment control.

Key Features

• PowerPC MPC7410 or MPC750 processor, 100MHz frontside bus
• Onboard ECC SDRAM up to 512MB, expandable to 1GB
• Dual 10/100Mbps Ethernet ports and dual RS232 serial interfaces
• Two 32/64-bit PMC expansion slots for functional extension
• 32KB battery-backed NVRAM and watchdog timer
• 6U standard VME form factor, single slot installation
• Supports VMEbus and PCI bridge communication

• Rugged hardware design for high shock and vibration environments

•


Technical Specifications

• Model: MVME5100
• Brand: Motorola (Artesyn)
• Form Factor: 6U VME
• CPU: PowerPC MPC7410 / MPC750
• Memory: Up to 512MB ECC SDRAM
• Communication: Dual Ethernet, Dual RS232
• Expansion: 2 × PMC slots
• Operating Temperature: 0℃ ~ +55℃ (commercial), -20℃ ~ +71℃ (extended version)

• Mounting: VME rack plug-in card

•


Compatibility & Application

Compatible with standard VME chassis and PMC mezzanine modules. Widely used in industrial real-time control, aerospace, military equipment, medical instruments and rotating machinery monitoring systems.
