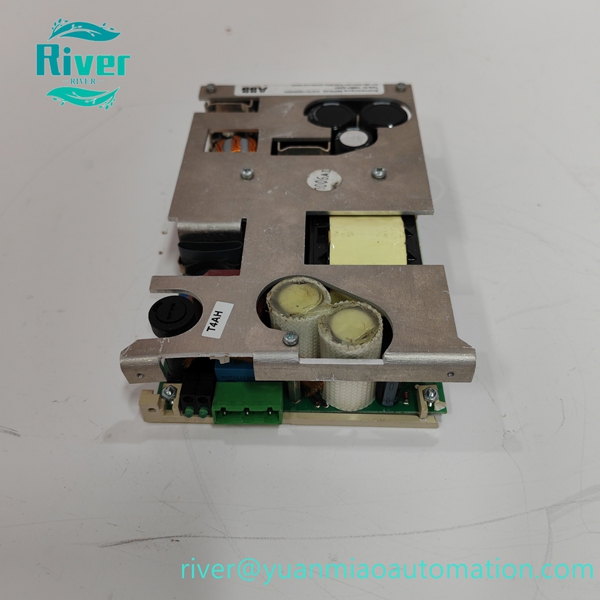

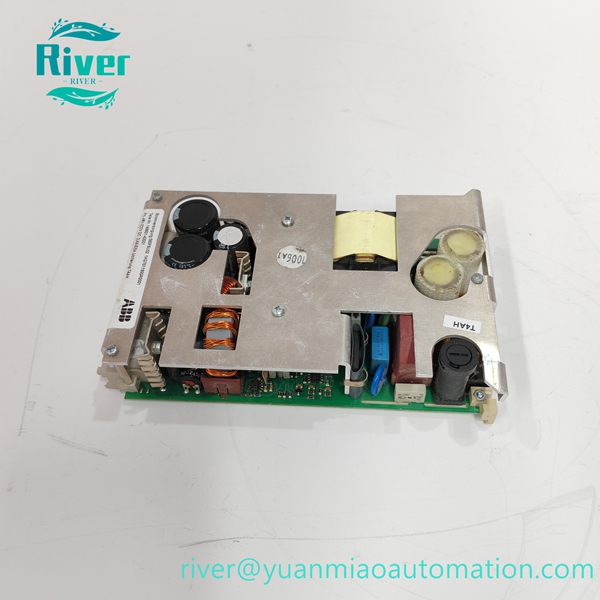

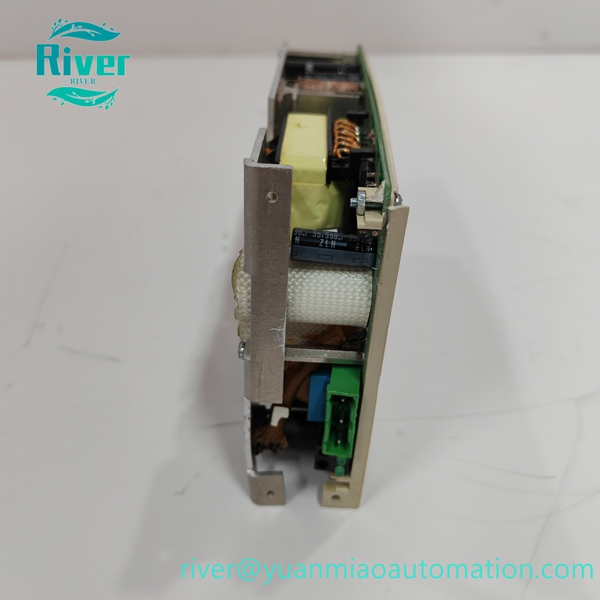

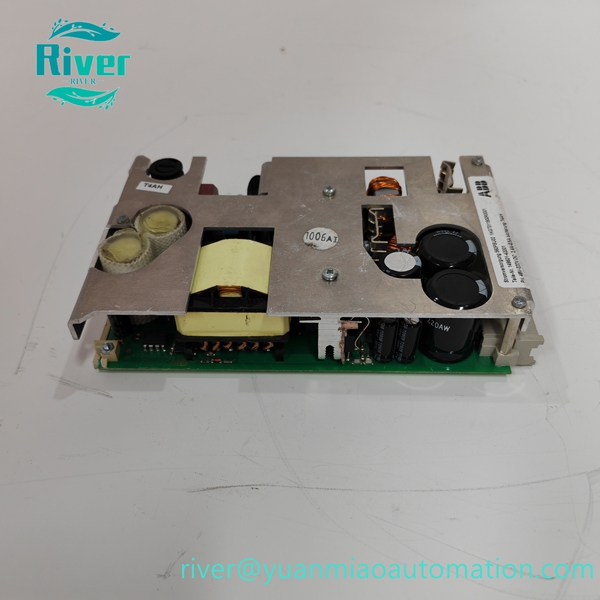

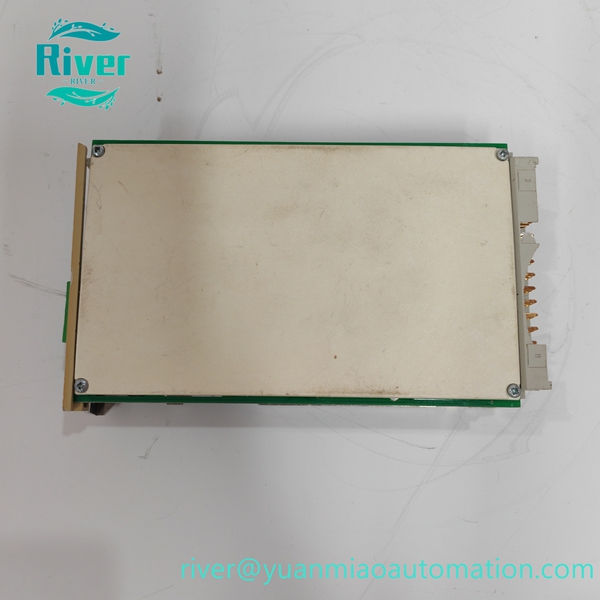

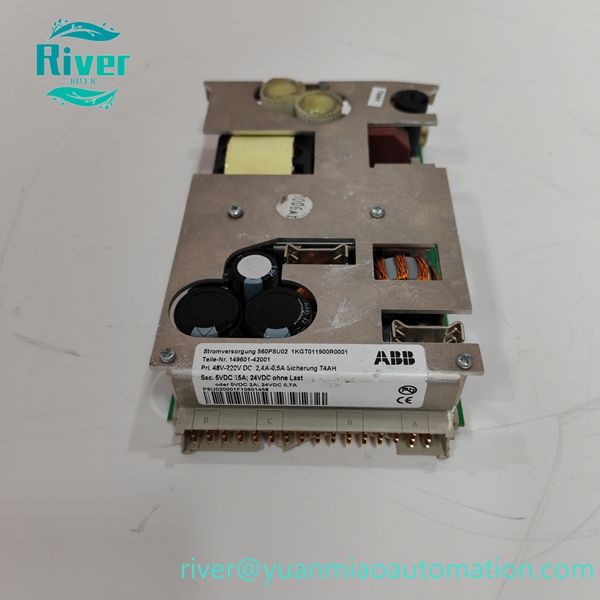

Original ABB 560PSU02 1KGT011900R0001 power supply module for RTU560 remote terminal unit, substation control system replacement spare part.

Product Overview

ABB 560PSU02, part number 1KGT011900R0001, is plug‑in power supply unit dedicated for ABB RTU560 substation automation system. It converts wide‑range DC input into stable 5VDC and 24VDC output for rack backplane, supplies power for CMU communication boards and other internal modules. It supports 1+1 parallel redundant operation, widely used for power substation RTU cabinet maintenance and spare‑parts replacement.

Key Features

• Wide DC input range 48‑220V DC, adapts to substation battery power supply
• Dual isolated output: 5V DC for logic circuit, 24V DC for field modules
• Supports parallel redundant operation, automatic full‑load takeover upon single unit failure
• Input reverse‑polarity protection, over‑voltage, over‑current and short‑circuit protection
• Galvanic isolation between input and output side
• LED status indicators and hardware fault alarm contact
• Natural convection cooling, no fan required

• Plug‑in eurocard design for quick installation and field replacement

•


Technical Specifications

• Brand: ABB
• Model: 560PSU02
• Part Number: 1KGT011900R0001
• Series: RTU560
• Input: 48‑220V DC
• Output: 5V DC, 24V DC
• Cooling: Natural convection
• Mounting: Plug‑in for 560MPR03 / 560SFR02 subrack
• Operating Temperature: ‑20℃ ~ +70℃
• Application: Substation automation RTU power feeding

• Certification: CE certified

•


Compatibility

Suitable for RTU560 rack 560MPR03 and 560SFR02, matches CMU series communication modules, used for power substation RTU system overhaul and spare‑parts replacement.
