Product Overview

• Part No: 0100‑71267
• Brand: AMAT (Applied Materials)

• Category: PMC Mezzanine Control Expansion Module

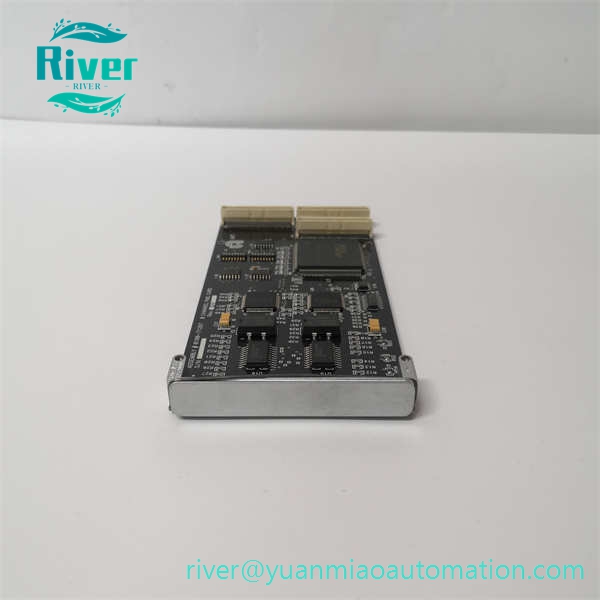

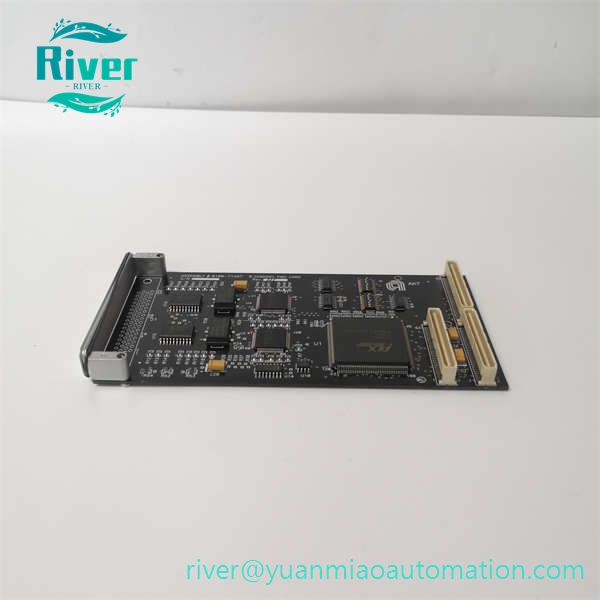

  0100‑71267 is an 8‑channel single‑width PMC (PCI Mezzanine Card) assembly manufactured by Applied Materials. It works as a high‑speed signal acquisition and processing daughter board, installed onto VMEbus carrier boards inside semiconductor process equipment. The module undertakes precise timing control, data sampling and signal synchronization tasks for thin‑film deposition systems such as PECVD and PVD tools. It transfers high‑speed I/O data between local field hardware and host system through PMC PCI bus interface. Adopting industrial‑grade components and compact mezzanine form‑factor, it fits the narrow internal rack space of wafer fabrication tools. It is an obsolete original field‑replaceable spare part for maintenance and retrofit of AMAT semiconductor production machines.

•


Core Features

• 8 independent high‑speed I/O channels for synchronized signal acquisition
• Compliant with PMC IEEE 1386.1 standard, supports PCI 66MHz bus communication
• On‑board processing circuit for real‑time signal timing and data pre‑processing
• Mezzanine daughter‑card structure, compatible with VME‑based carrier host boards
• Rugged PCB assembly designed for continuous 24‑hour operation inside fabrication tools
• Built‑in surge and ESD protection for signal channels
• Compact form factor saving cabinet internal installation space

• High reliability qualification for semiconductor manufacturing workshop environment

•


Technical Specifications

• Form Factor: Single‑width PMC mezzanine card
• Bus Standard: PMC IEEE 1386.1, PCI 66MHz
• Channel Quantity: 8 independent channels
• Power Supply: Powered by host carrier board
• Operating Temperature: 0°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C

• Mounting: Mezzanine stacking installation on VME carrier board

•


Compatibility & Application

• Compatible with AMAT AKT series PECVD, PVD and flat‑panel display processing equipment
• Applied in semiconductor wafer fabrication lines, thin‑film deposition production tools
• Functions for high‑speed signal synchronization, data acquisition and process timing control inside vacuum process modules
