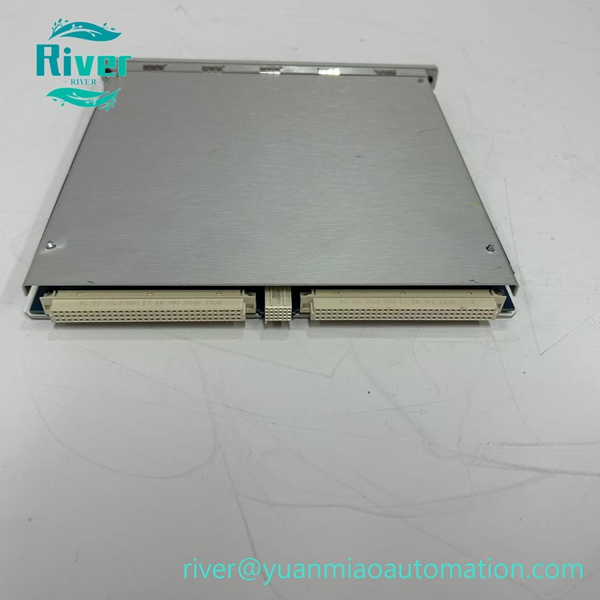

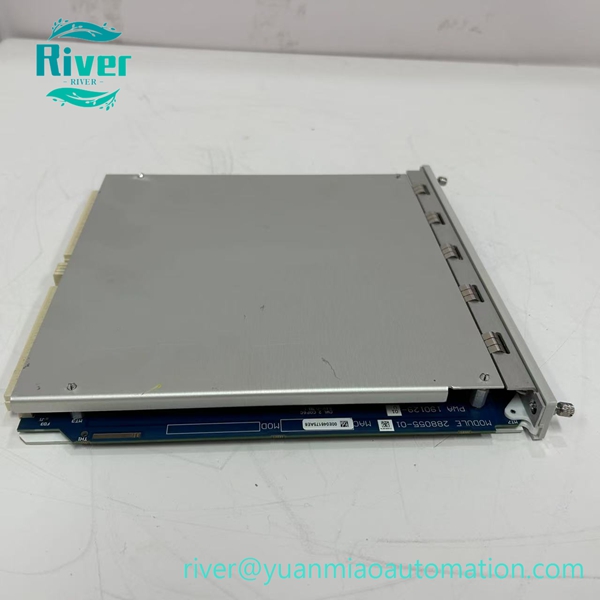

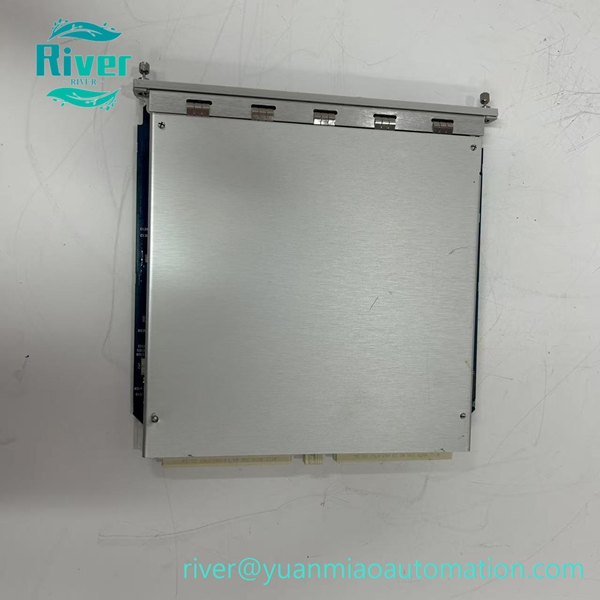

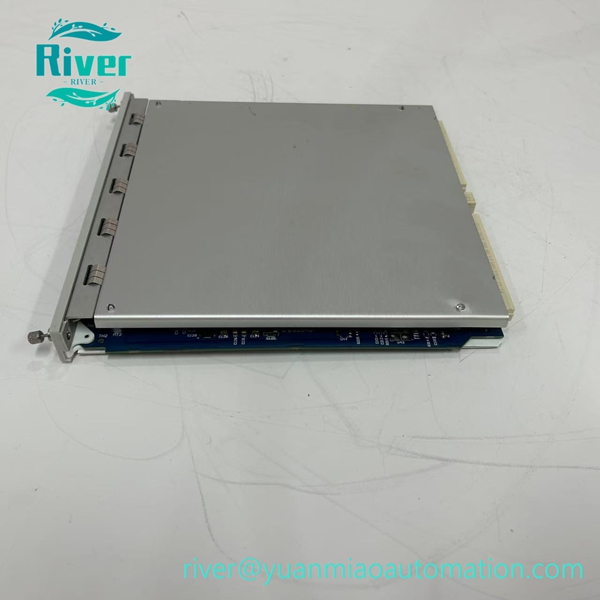

BENTLY 350022 288055-01 is a TDI transient data interface module for Bently Nevada 3500 machinery protection monitoring system.

Product Overview:

BENTLY 350022 (3500/22M) 288055-01 serves as the transient data interface module for the Bently Nevada 3500 rack machinery protection system. It acts as system gateway, supports rack configuration and transmits transient vibration data to System 1 condition monitoring software.

Key Features:

• High speed transient data collection and transmission for rotating machinery

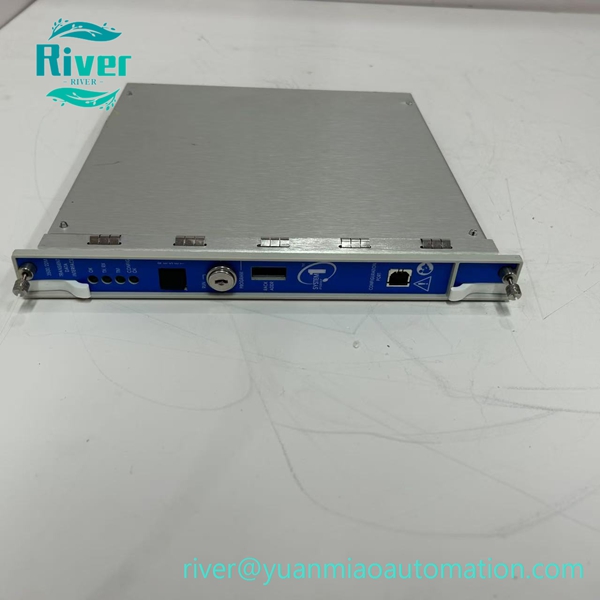

• Front panel USB port for local configuration and debugging
• 10/100 Ethernet communication interface for data uploading
• Integrated self-diagnosis function for module health status monitoring
• Supports continuous machinery vibration and shaft position data acquisition

• Rugged design for long-term operation in industrial harsh environment

•


Technical Specifications:

• Model: 3500/22M, Part No:288055-01
• Brand: BENTLY Nevada (Baker Hughes)
• Module Type: Transient Data Interface (TDI)
• Series: 3500 Machinery Protection System
• Communication: Ethernet 10/100Base-TX, USB
• Operating Temperature: -20℃ ~ +65℃

• Humidity: Up to 95% non-condensing

•


Compatibility & Application:

Compatible with Bently Nevada 3500 series rack and monitoring modules. Widely used for turbine, compressor, pump and other rotating equipment condition monitoring in power, oil & gas, petrochemical industries.
