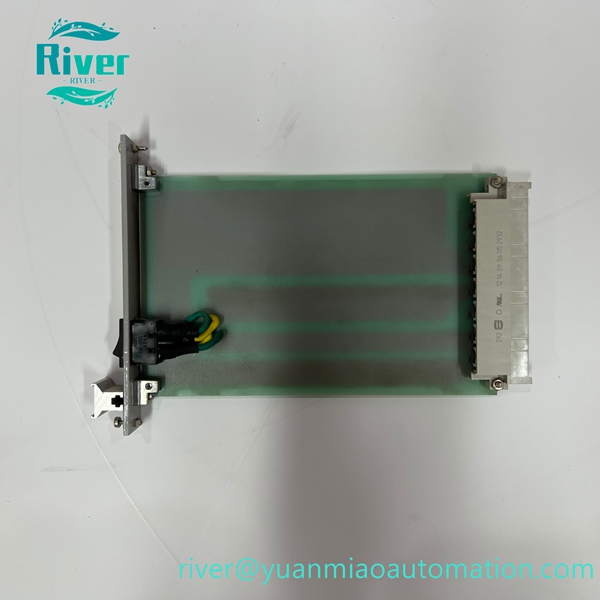

GE WEA13-13 2508-21001 analog input module for GE DCS system, multi-signal input support including 4-20mA, RTD and thermocouple, 14-bit high precision A/D conversion for industrial process signal acquisition.

Product Overview

GE WEA13-13 2508-21001 is a multi-channel analog input module for GE distributed control system. It is designed to collect field analog signals from transmitters, temperature sensors and other process instruments, convert analog signals into digital signals for controller processing. It is a common spare part used in power, chemical and metallurgy automation control cabinets.

Key Features

• 8 configurable analog input channels
• Supports multiple signal types: 4-20mA, 0-10V DC, RTD and thermocouple
• 14-bit high resolution A/D conversion, accurate signal sampling
• Built-in overvoltage and overcurrent protection circuit
• Module status LED indicators for fault diagnosis
• Backplane plug-in installation, convenient replacement

• Wide working temperature range, stable in harsh industrial environment

•


Technical Specifications

• Model: WEA13-13
• Part No: 2508-21001
• Brand: GE
• Type: Analog Input Module
• Channel: 8 channels
• Resolution: 14-bit
• Signal Input: 4-20mA, 0-10V, RTD, Thermocouple
• Power Consumption: 5W
• Protection: IP20

• Operating Temperature: -30℃ ~ +70℃

•


Application

Power plant control system, petrochemical process monitoring, metallurgy industrial automation, temperature and pressure signal acquisition.
