GE IS215WETAH1BB IS200WETAH1AGC interface board for GE Mark VIe turbine control system, responsible for signal conditioning and internal communication between controller and field I/O, widely used for gas and steam turbine control rack replacement.

Product Overview

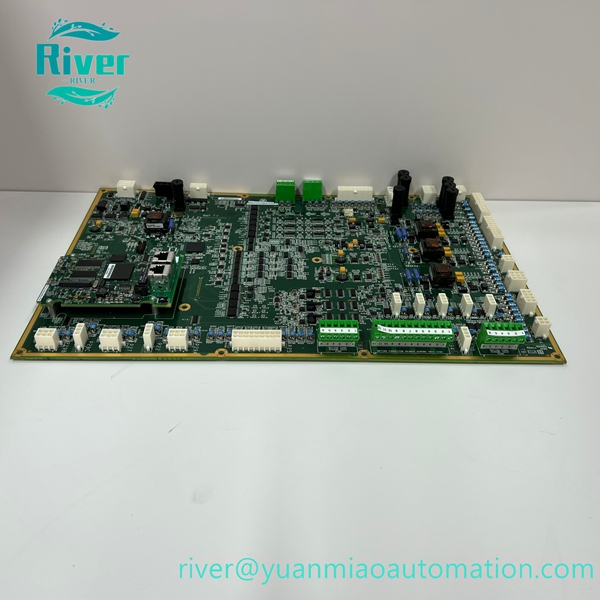

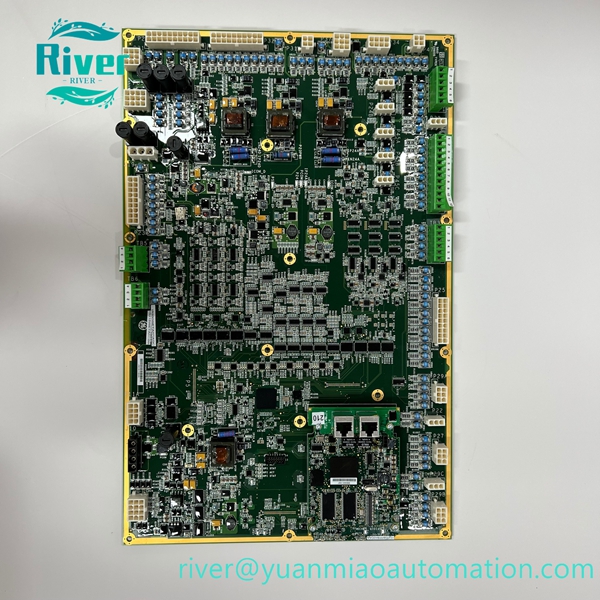

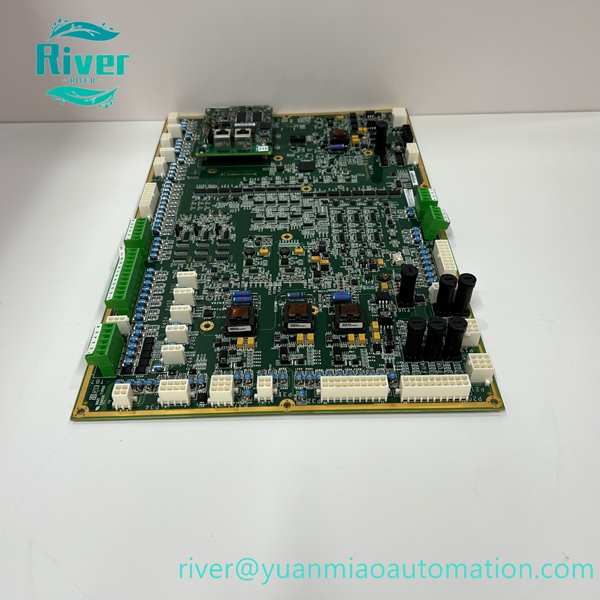

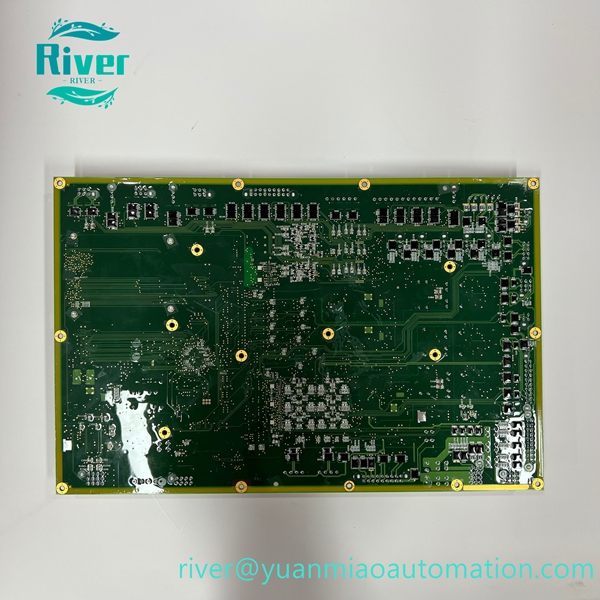

GE IS215WETAH1BB IS200WETAH1AGC is a matched interface circuit board assembly for GE Mark VIe turbine control system. IS200WETAH1AGC is the PCB base board, and IS215WETAH1BB is the complete assembled part number. It processes sensor feedback signals and control command signals between the main controller and on-site actuators, undertakes signal isolation, conversion and data forwarding, and is an essential spare card for gas turbine and steam turbine control cabinets in power plants.

Key Features

• Designed for GE Mark VIe Speedtronic turbine control platform
• Signal isolation and conditioning circuit, strong anti-interference performance
• High-speed internal bus communication with Mark VIe controller
• Onboard diagnostic LED indicators for fast fault locating
• Conformal coated PCB, suitable for cabinet environment with vibration and temperature fluctuation
• Plug-in rack mounting, convenient for direct replacement during maintenance

• Supports TMR redundant configuration to meet turbine safety control requirements

•


Technical Specifications

• Assembly PN: IS215WETAH1BB
• PCB PN: IS200WETAH1AGC
• Brand: GE
• Type: Turbine Control Interface Board
• Compatible System: Mark VIe Speedtronic
• Power Supply: 24V DC
• Mounting: Plug-in card for Mark VIe rack
• Operating Temperature: -30℃ ~ +70℃

• Protection: IP20

•


Application

Gas turbine and steam turbine control, power generation unit control, turbine safety interlock, oil & gas turbomachinery control system maintenance and retrofit.
