PDMA MTAP2 PCB-00322-REVD: Motor Test Access Port with Integrated Cable and Current Transformers

Short Description:

This advanced motor test access port seamlessly integrates with your system for enhanced diagnostic capabilities and current monitoring. Designed for efficiency and reliability, it simplifies the testing process, ensuring precise readings and streamlined maintenance operations.

Send email to us

Product Detail

Operating Voltage:DC 12V

Current Rating:Up to 50A

Signal Output:4-20mA

Connection Type:M12 connector

Environmental Rating:IP65

Material:High-grade aluminum alloy

Weight:0.4kg

Dimensions:120mm x 70mm x 40mm

The PDMA MTAP2 PCB-00322-REVD is a cutting-edge solution for industrial motor testing, offering unparalleled access to critical motor parameters without compromising on system integration or ease of maintenance.

Crafted from high-grade aluminum alloy, this motor test access port ensures durability and reliability in even the harshest industrial environments, withstanding temperatures ranging from -20°C to +85°C.

Equipped with an integrated cable and two 50A current transformers, the PDMA MTAP2 PCB-00322-REVD provides precise measurement capabilities, essential for accurate motor diagnostics and performance evaluation.

The inclusion of a USB 2.0 compliant interface facilitates simple data transfer and connectivity, streamlining the process of integrating this access port into existing control systems.

Compliant with IEC 61000-4-2 (ESD) and IEC 61000-4-3 (LMP) standards, the PDMA MTAP2 PCB-00322-REVD ensures robust protection against electromagnetic disturbances and electrical surges, guaranteeing stable operation in noisy industrial settings.

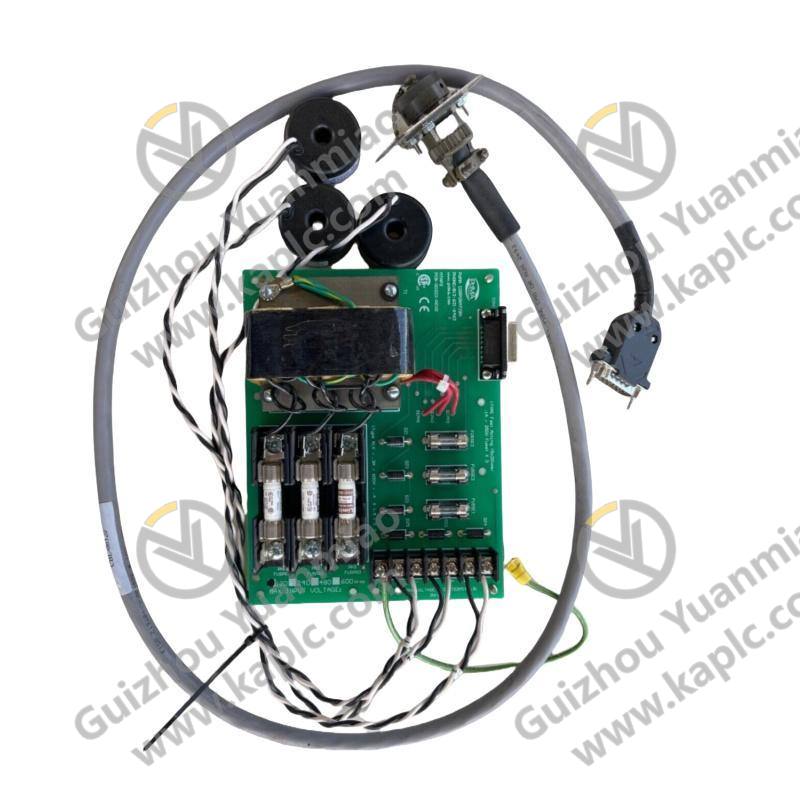

PDMA MTAP2 PCB-00322-REVD MOTOR TEST ACCESS PORT with cable and CTs
